Blackmagic Design PYXIS 6K PL

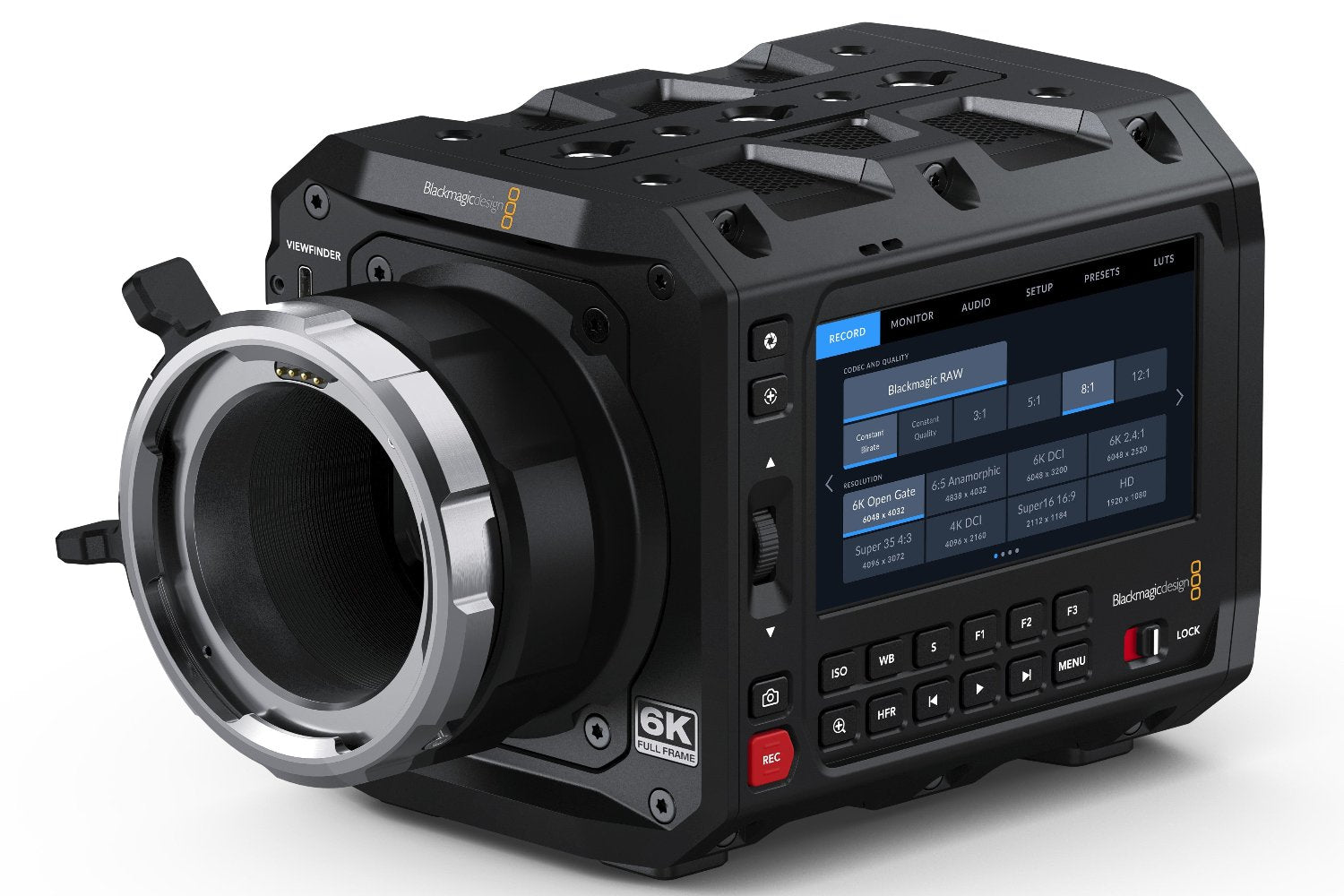

The Blackmagic Design PYXIS 6K PL is a high-end digital cinema box camera that integrates the renowned 6K full-frame sensor into a versatile, modular chassis. The PL version is specifically designed for cinema professionals, featuring a robust, native PL mount to support the world’s finest professional cinema lenses from manufacturers like Arri, Cooke, and Zeiss.
The Sensor: 6K Full-Frame
The camera features a massive 36 x 24mm full-frame sensor with a native resolution of 6048 x 4032.
-
Large Format Aesthetic: The full-frame sensor provides a shallow depth of field and a wide field of view, delivering a distinct "cinematic" look with smooth bokeh.
-
13 Stops of Dynamic Range: Capable of capturing extreme detail in both highlight and shadow areas, making it ideal for high-end color grading in DaVinci Resolve.
-
Dual Native ISO: Features dual native ISO up to 25,600, which minimizes grain and noise when shooting in low-light environments or at high frame rates.
The PL Mount Advantage
The PL (Positive Lock) mount is the industry standard for professional cinematography.
-
Mechanical Stability: Unlike consumer mounts, the PL mount uses a locking ring mechanism that prevents any lens play or "wobble," which is critical when using heavy cinema zooms or following focus with wireless motors.
-
Lens Compatibility: Provides native access to vintage and modern PL-mount glass.
-
Durability: Built to withstand the torque and weight of large-scale cinema lenses without the need for external lens supports in many configurations.
Technical Features
-
Multiple Recording Formats: Records in Blackmagic RAW for maximum post-production flexibility and H.264/H.265 proxies simultaneously for rapid cloud-based workflows.
-
Built-In Media Slots: Equipped with dual CFexpress Type B card slots, allowing for high-speed data recording of 6K RAW files and "hot-swapping" during long takes.
-
Professional Connectivity: Includes 12G-SDI output for monitoring, mini XLR audio inputs with phantom power, and an RJ45 Ethernet port for remote camera control and cloud uploading.
-
Integrated 4-Inch HDR LCD: Features a high-brightness 1500-nit touchscreen for monitoring and camera setup, eliminating the mandatory need for an external monitor in compact rigs.
Technical Specifications
| Feature | Specification |
| Sensor Size | 36mm x 24mm (Full Frame) |
| Native Resolution | 6048 x 4032 (6K) |
| Lens Mount | Native PL Mount (Cinema Standard) |
| Max Frame Rates | 6K Open Gate @ 36 fps; 6K 2.4:1 @ 60 fps; 1080p @ 120 fps |
| Dynamic Range | 13 Stops |
| Media Type | 2 x CFexpress Type B |
| Power | Sony BP-U Style Battery or 12V-15V DC (2-pin Lemo) |
Operational Insight
The PYXIS 6K PL is designed to be the "brain" of a larger camera system. Its box-style form factor allows it to be rigged for various roles—from a stripped-back setup on a gimbal or drone to a full studio configuration with the PYXIS Rosette Plate and EVF. For cinematographers, the PL version is the preferred choice because it bypasses the need for adapters, ensuring the most precise flange focal distance and optical alignment for high-end cinema lenses.
