Blackmagic Design Camera ProDock

Blackmagic Design Camera ProDock

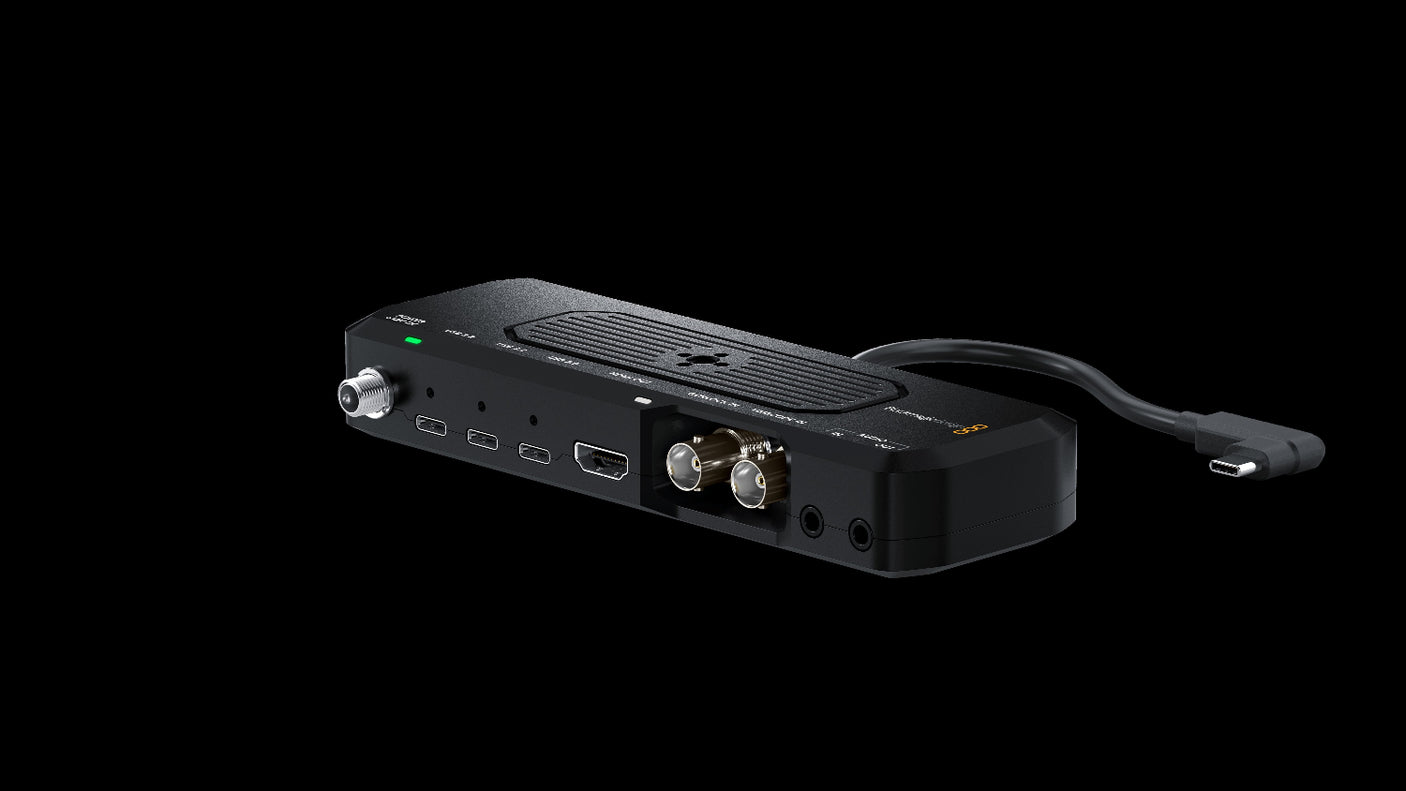

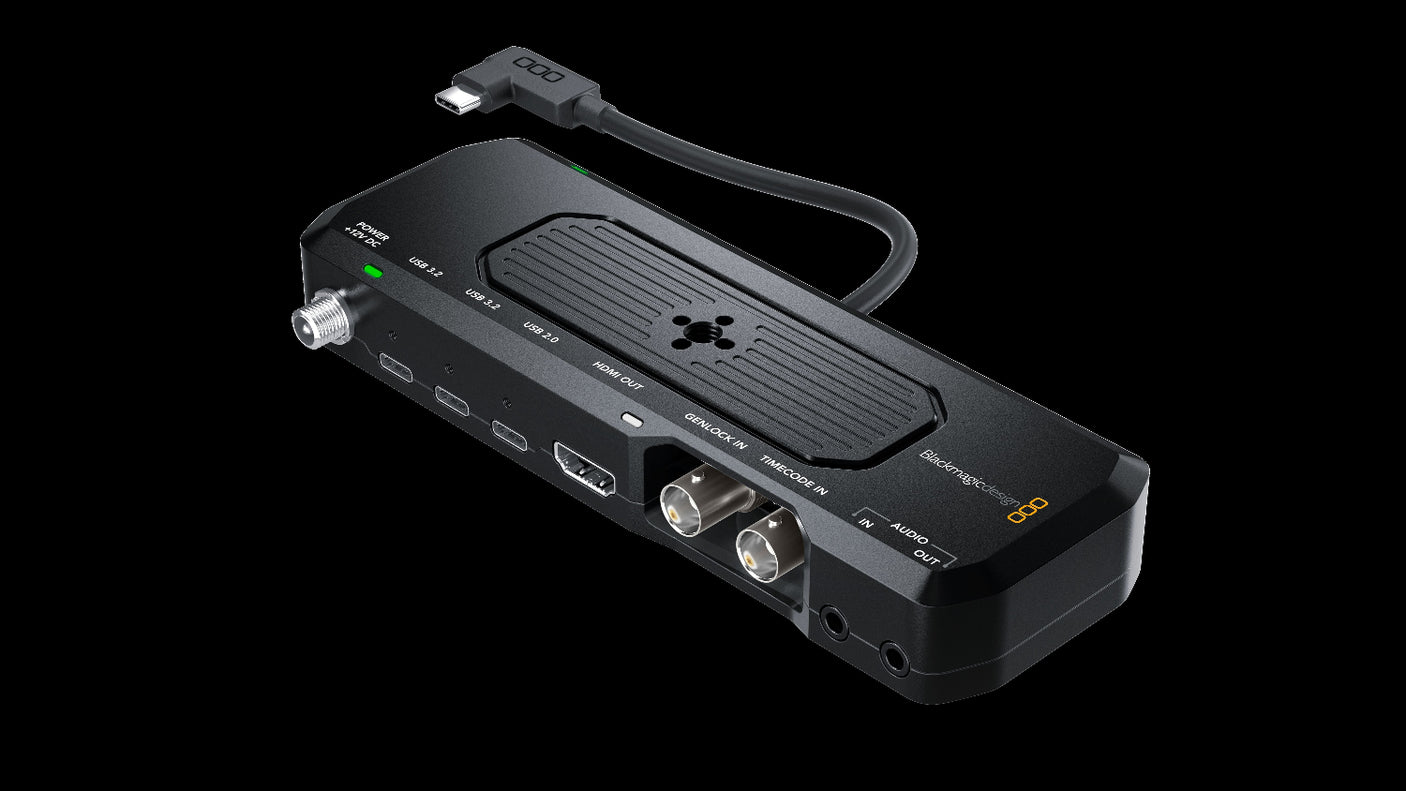

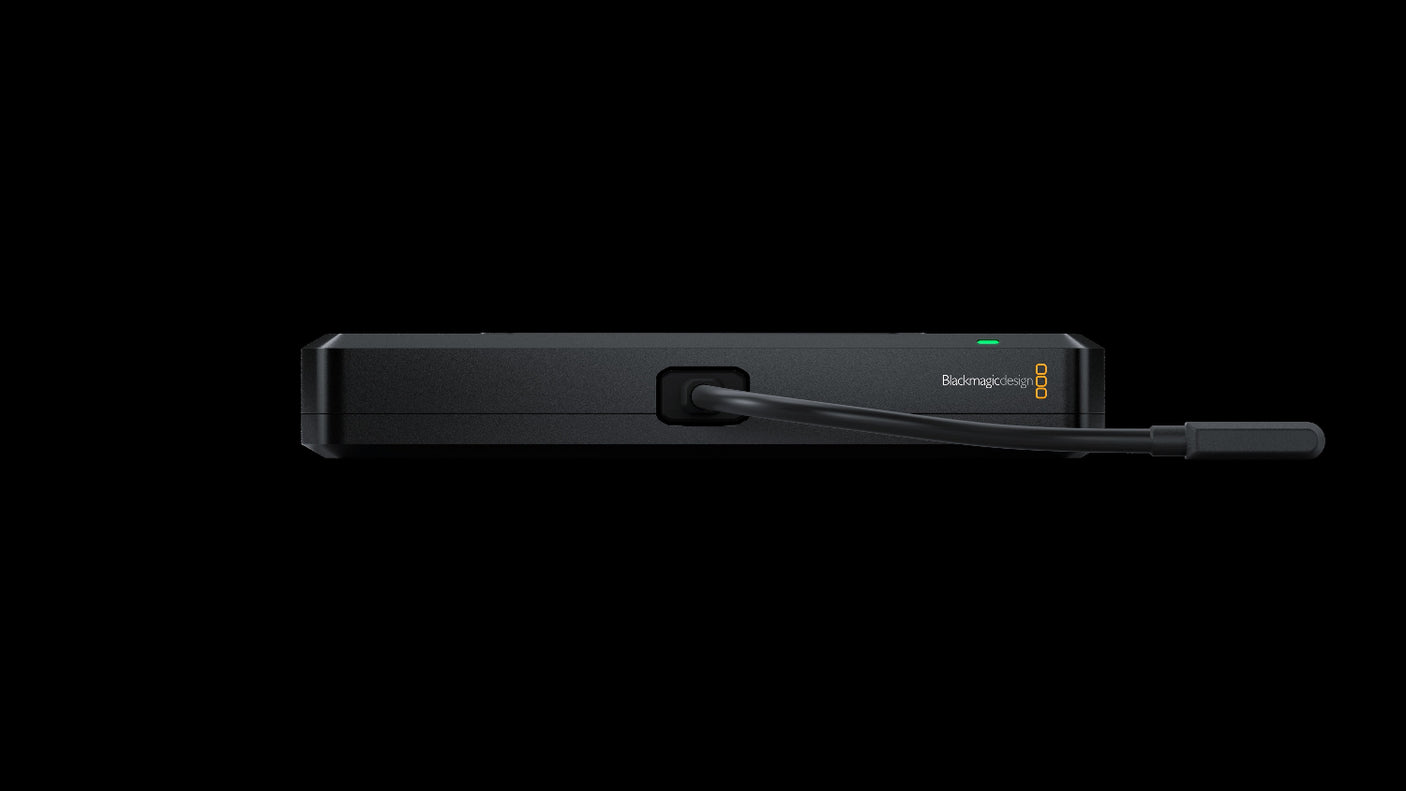

The Blackmagic Design Camera ProDock is a specialized hardware interface designed to transform the iPhone into a professional-grade cinema camera. It bridges the gap between mobile software and traditional broadcast workflows by adding physical BNC and HDMI ports to the smartphone platform.

Key Connectivity and Features

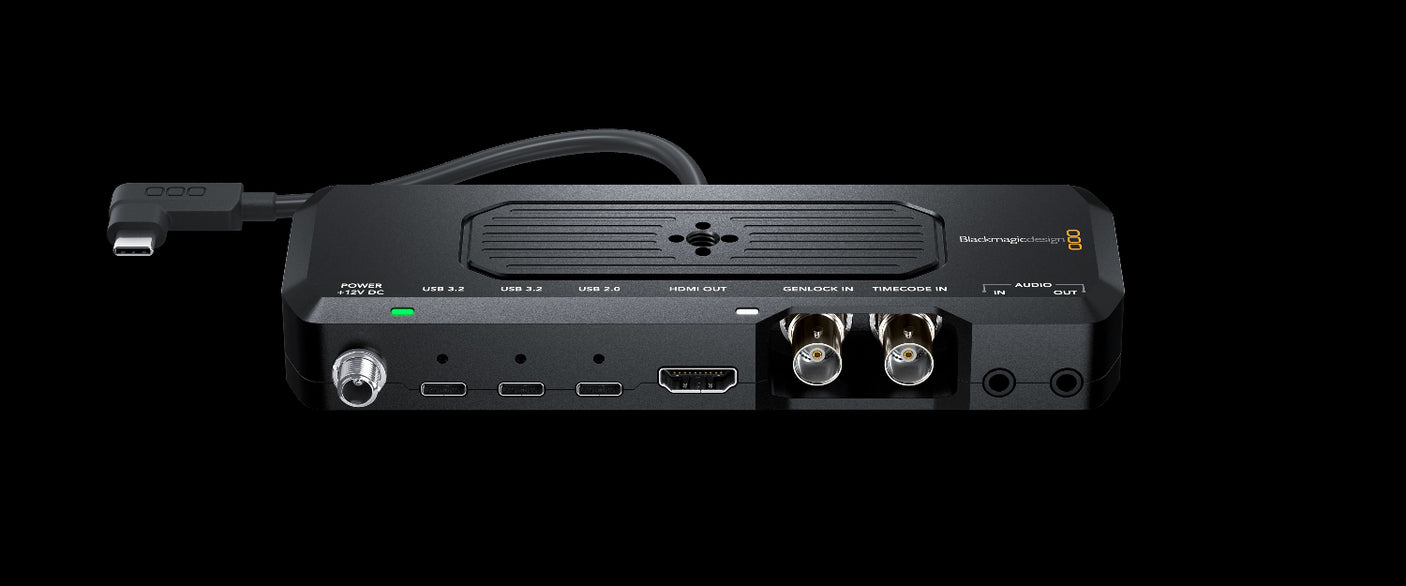

The ProDock connects to your iPhone via a heavy-duty USB-C cable and unlocks a suite of professional interfaces:

• Genlock and Timecode (BNC): This allows you to jam-sync multiple iPhones or synchronize them with professional cinema cameras and LED walls for flicker-free virtual production.

• HDMI Monitoring: A full-sized HDMI output for sending a clean feed to an on-set director's monitor or a wireless transmitter.

• Expansion Ports: Includes dedicated USB-C ports for high-speed recording to external SSDs and additional ports for accessories like focus pullers or lens control motors.

• Pro Audio: Features dedicated jacks for both microphone input and headphone monitoring.

• Locking Power: A DC barrel connector ensures the phone and all peripherals stay powered during long shoots, avoiding the risk of a cable wiggling loose.

Integration with Blackmagic Camera App

The ProDock is designed to work with the Blackmagic Camera App. When docked, the app unlocks hardware-level features:

• High-Fidelity Recording: Support for recording directly to external disks.

• Sync Status: Real-time feedback on the screen for Genlock and Timecode status.

• Camera Control: The ability to use physical buttons or external wheels to control iris, shutter, and ISO through the dock's connectivity.

Technical Specifications

• Compatibility: iPhone 15/16/17 Pro and Pro Max series

• Video Out: HDMI (Type A)

• Sync I/O: BNC (Genlock) and BNC (Timecode)

• Audio: Mic In and Headphone Out

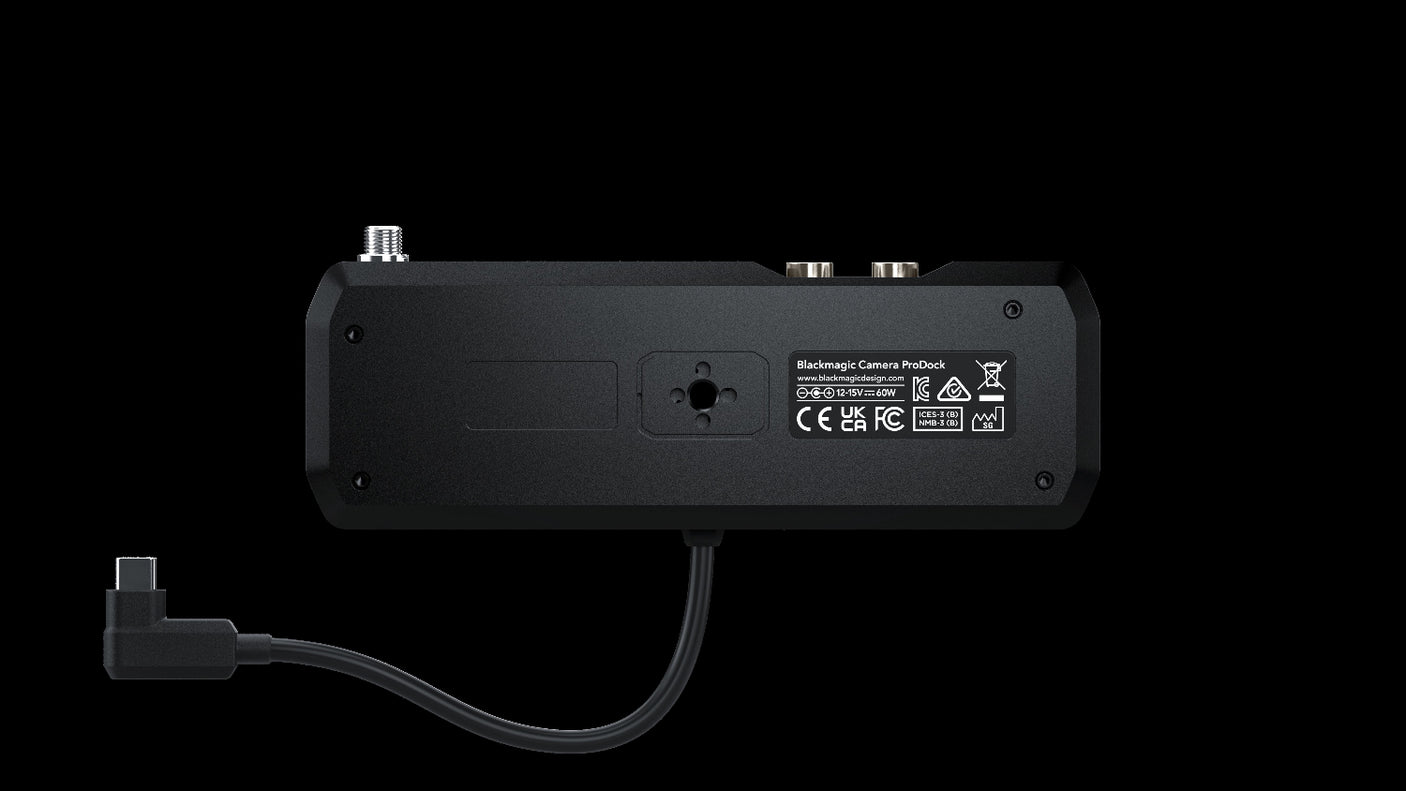

• Mounting: 1/4"-20 Pin-Lock points

Deployment and Rigging

The dock is built with a rugged aerospace aluminum design meant to be mounted inside a camera cage. It features mounting points with locating pins to prevent the dock from twisting when attached to a rig. For best results, ensure your camera cage has enough clearance around the phone's port to accommodate the heavy-duty connector.
