SKU: BLA-SWATEMTVSTC/K4K8

Blackmagic Design ATEM Television Studio 4K8

R 134,249.85
Tax included Shipping calculated at checkout.

Blackmagic Design ATEM Television Studio 4K8

The Blackmagic Design ATEM Television Studio 4K8 is a comprehensive, all-in-one broadcast studio that fits on a tabletop. By integrating a 12G-SDI switcher into a professional hardware control surface, it eliminates the need for external equipment racks in many production scenarios.

It is the high-bandwidth Ultra HD version of the HD8 model, designed for high-end professional work up to 2160p60.

Core Functionality

  • 8 Standards-Converted 12G-SDI Inputs: Every input features a dedicated hardware converter. You can plug in a mix of 720p, 1080p, and 2160p sources at different frame rates, and the switcher will automatically convert them to match its global operating standard.

  • 10 Dedicated 12G-SDI Aux Outputs: Uniquely, this unit offers 10 independent outputs. These are essential for "clean feeds," sending specific camera returns to operators, or driving large stage monitors in a concert environment.

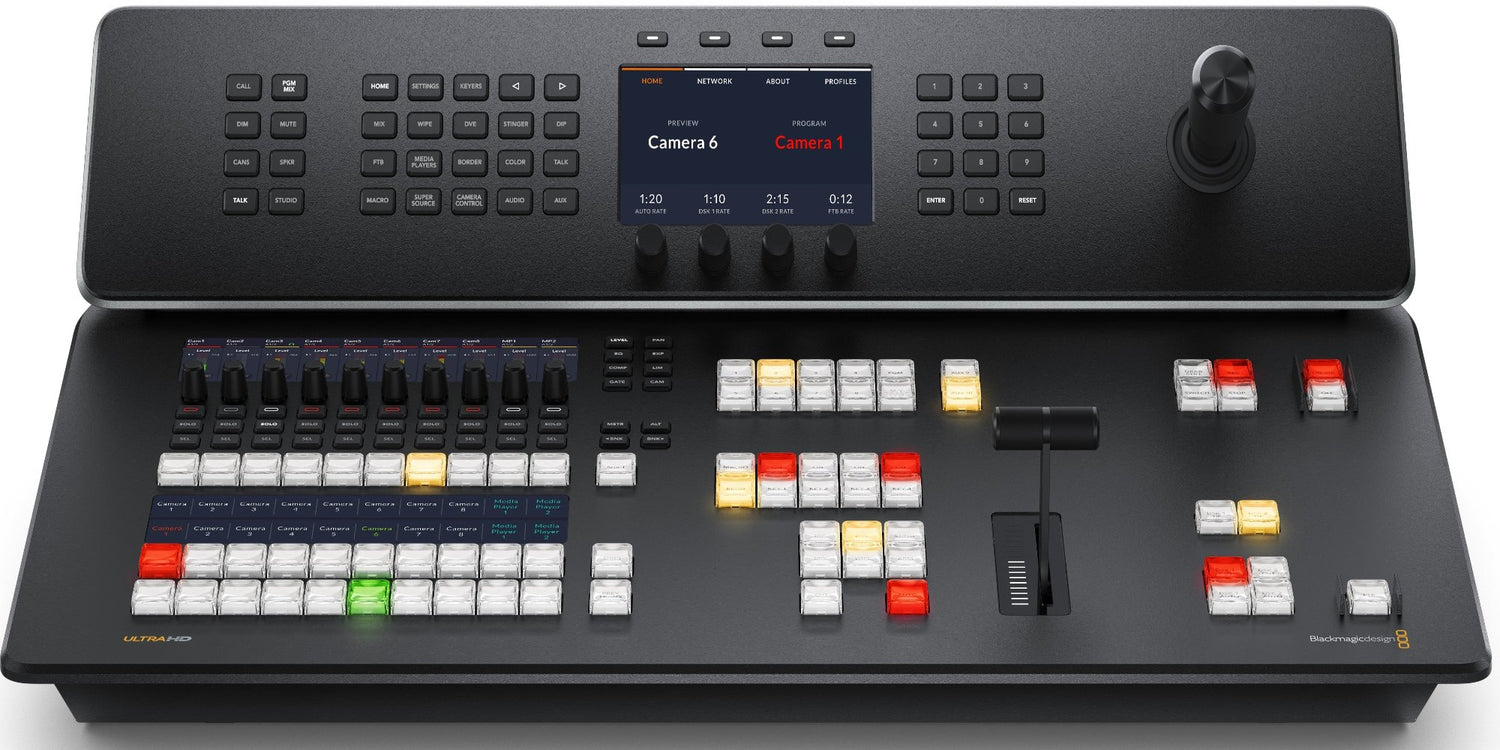

  • Professional Control Surface: Features high-end broadcast buttons, a weighted T-bar fader, and a 3-axis joystick. The integrated "scribble strip" LCDs automatically label every source, so you never have to use tape and a sharpie.

  • SuperSource Processor: Includes a multi-layer engine that allows you to create complex "picture-in-picture" layouts (up to 4 sources + background) without using up your main DVE or downstream keyers.

Advanced Audio & Networking

  • 58-Channel Fairlight Audio Mixer: Includes 8 channels for SDI inputs, plus extra for the XLR, RCA, and MADI inputs. It features a 6-band parametric EQ, compressor, limiter, and noise gate on every single channel.

  • MADI Expansion: Features a BNC MADI input that allows you to connect the ATEM Microphone Converter to add up to 32 additional professional mic inputs over a single cable.

  • 4-Port 10G Ethernet Switch: Acts as a high-speed networking hub. This allows you to connect the switcher to the internet for streaming while simultaneously linking to multiple computers running the ATEM Software Control or a hardware Camera Control Panel.

  • Internal Cloud Storage: Features an optional internal M.2 NVMe slot. You can record your program directly to internal memory and sync it automatically to Blackmagic Cloud or Dropbox for instant global access by editors.

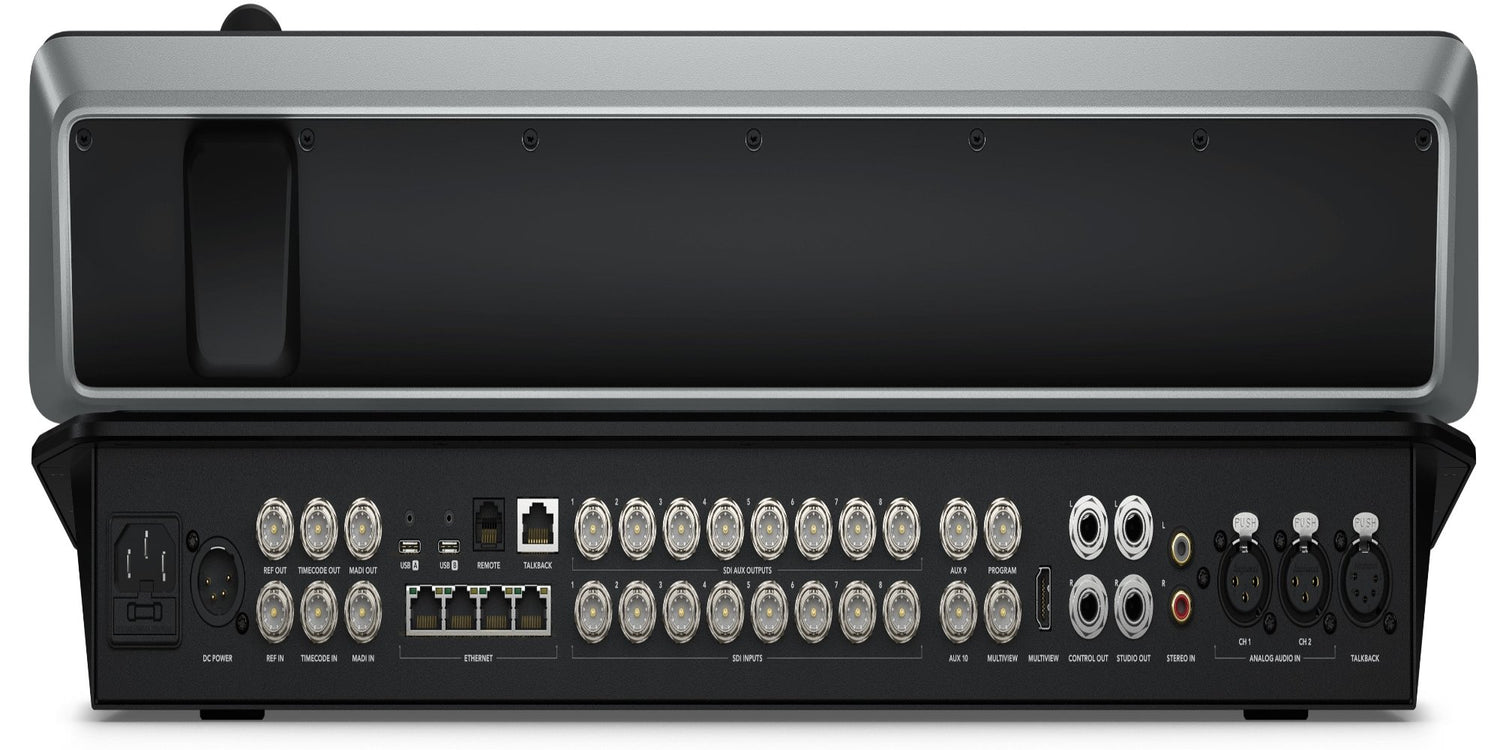

Technical Specifications

Feature Specification
Max Video Standard 2160p60 (12G-SDI)
Total Inputs 8 x 12G-SDI (Standards Converted)
Aux Outputs 10 x 12G-SDI
Multiview 1 x 12G-SDI and 1 x HDMI 2.0 (Up to 16 views)
Keyers 4 x Advanced Chroma, 2 x Downstream
Media Pool 20 Still Frames + 200 Frame UHD Clip Storage
Streaming Built-in Hardware Encoder (RTMP via Ethernet or USB)
Recording USB-C External or Internal M.2 Network Storage
Power 1 x Internal 100-240V AC, 1 x 4-pin XLR 12V DC

Operational Insight

In a 2026 workflow, the 4K8 is the definitive "one-man-band" solution for high-end corporate events and mobile broadcast vans. Because the control panel is the switcher, your entire video core fits in a single flight case.

The ISO capability (depending on software/hardware configuration) is particularly powerful for post-production. While it records a master "Program" file, it can also act as a network-attached storage (NAS) device, allowing an editor in another room to begin editing the recorded footage over the 10G Ethernet connection while the event is still being switched live.
