SKU: SEN-502435

Sennheiser MZH 8000

R 3,021.05
Tax included Shipping calculated at checkout.

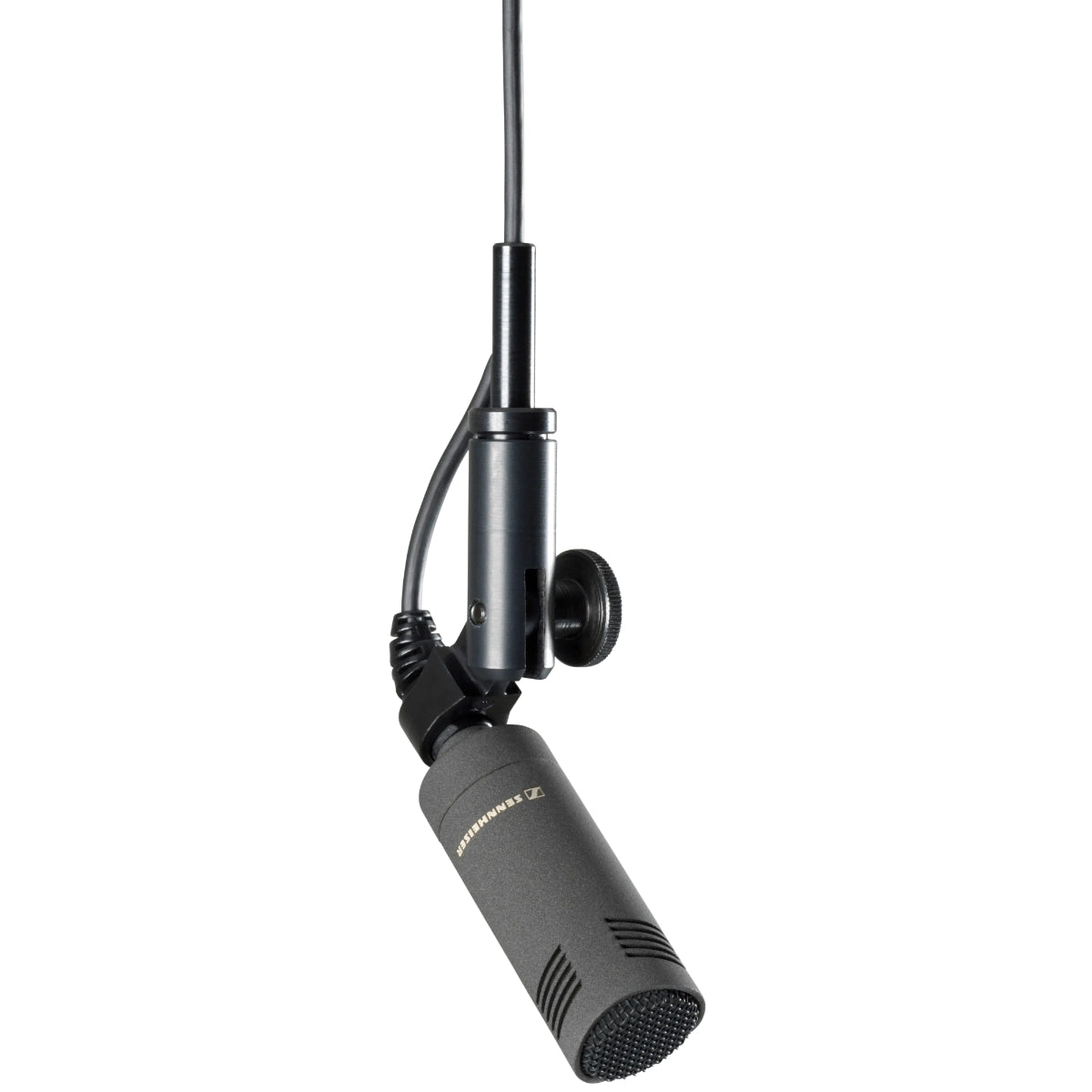

Sennheiser MZH 8000 Professional Ceiling Mount with Cable Guide

The Sennheiser MZH 8000 (Article Number: 502435) is a premium, architectural-grade ceiling mount suspension solution designed exclusively for Sennheiser's elite MKH 8000 series modular RF condenser microphones (such as the MKH 8020, MKH 8040, MKH 8050, and MKH 8090). Engineered to provide an elegant, ultra-low-profile installation footprint, this specialized utility fixture allows sound contractors, broadcast engineers, and event spaces to suspend high-end microphone capsules safely overhead.

Finished in a specialized, non-reflective Nextel® dark coating, the MZH 8000 avoids causing visual distractions, glare, or light reflections under heavy television studio lighting or inside historic houses of worship, corporate boardrooms, and prestigious concert halls.

Key Structural and Engineering Attributes

  • Discrete Overhead Suspension Platform: Designed to cleanly host an MKH modular capsule header shell detached from its standard heavy XLR module base. It interfaces seamlessly with Sennheiser’s specialized MZL 8003 or MZL 8010 ultra-thin remote cables.

  • Precision Swivel & Tilt Joint: Outfitted with an interactive, heavy-duty adjustable friction alignment joint. This allows engineers to tilt and lock the capsule angle down precisely toward a choir, orchestral ensemble, panel discussion table, or stage altar. Once tightened, it maintains rock-solid position memory without slipping over long-term permanent deployments.

  • Integrated Cable Guide Logic: Built with an architectural cable channel routing and tension track inside the chassis stem. It clips excess wire slack cleanly along the vertical mount plane, preventing unsightly hanging loops and maintaining a strict, minimal visual profile.

  • Heavy-Duty Multi-Point Ceiling Plate: Supported by a robust steel mounting base featuring multiple screw anchorage holes. This guarantees a safe, secure, drop-proof structural anchor point into concrete ceilings, drywall reinforcement beams, or structural theatrical stage grids.

Technical Specifications Matrix

Feature Parameter Hardware Specification Profile
Model Reference Name MZH 8000
Official Article Number 502435
Global Trade Product Code (UPC) 615104141797
Primary Structural Focus Hanging Ceiling Bracket & Orientation Mount
System Capsule Compatibility Sennheiser MKH 8020 / 8040 / 8050 / 8090 / 8030
Required Remote Connecting Interfacing Sennheiser MZL 8003 or MZL 8010 micro-cables
Adjustment Axis Capabilities Adjustable Tilt / Swivel Angular Articulation
Cable Management Method Embedded Structural Cable Track & Strain Relief
Hardware Exterior Treatment Anti-reflective Nextel® Matte Coating (Dark Gray / Black)
Base Ceiling Anchor Plate Diameter Approx. 60 mm (2.36 inches)
Net Operational Weight Approx. 150 grams (5.29 oz)

In the Box: Industrial Hardware Inventory

  • 1 x Sennheiser MZH 8000 Ceiling Mount Assembly (Nextel Black)

  • 1 x Integrated Adjustment Tool

  • 1 x Installation Instruction Sheet

  • (Note: MKH Microphone capsules, MZL remote connection cables, and ceiling anchor mounting screws are sold separately)

System Integration and Rigging Advice

Assembling the Modular Remote Architecture: The MZH 8000 is intended for modular remote application layout only. To rig it correctly, unscrew your MKH capsule head (e.g., the MKHC 8040 cardioid head) away from its standard MZX 8000 XLR analog bottom module. Thread the capsule cleanly onto the screw-head of a fine MZL 8003 remote cable, feed the cable through the internal routing channel of the MZH 8000 swivel stem, and lock the alignment angle. The other end of the thin cable feeds down the wall line back into your MZX 8000 XLR block to link standard phantom power.

Minimizing Mechanical Shock and Vibrations: While the solid metal build ensures long-term security, fixed ceiling mounts can track structure-borne vibrations (such as HVAC rumble, heavy footsteps on the floor above, or roof building shifts). If deploying this above a critical orchestral tracking arena, install thin neoprene isolation gaskets or rubber mounting washers behind the steel base plate to decouple building rumble from entering the ultra-sensitive RF condenser capsule's audio feed.
