Sennheiser MZL 8003 Remote Cable, 3m, Connection Between Mic Head and XLR Module

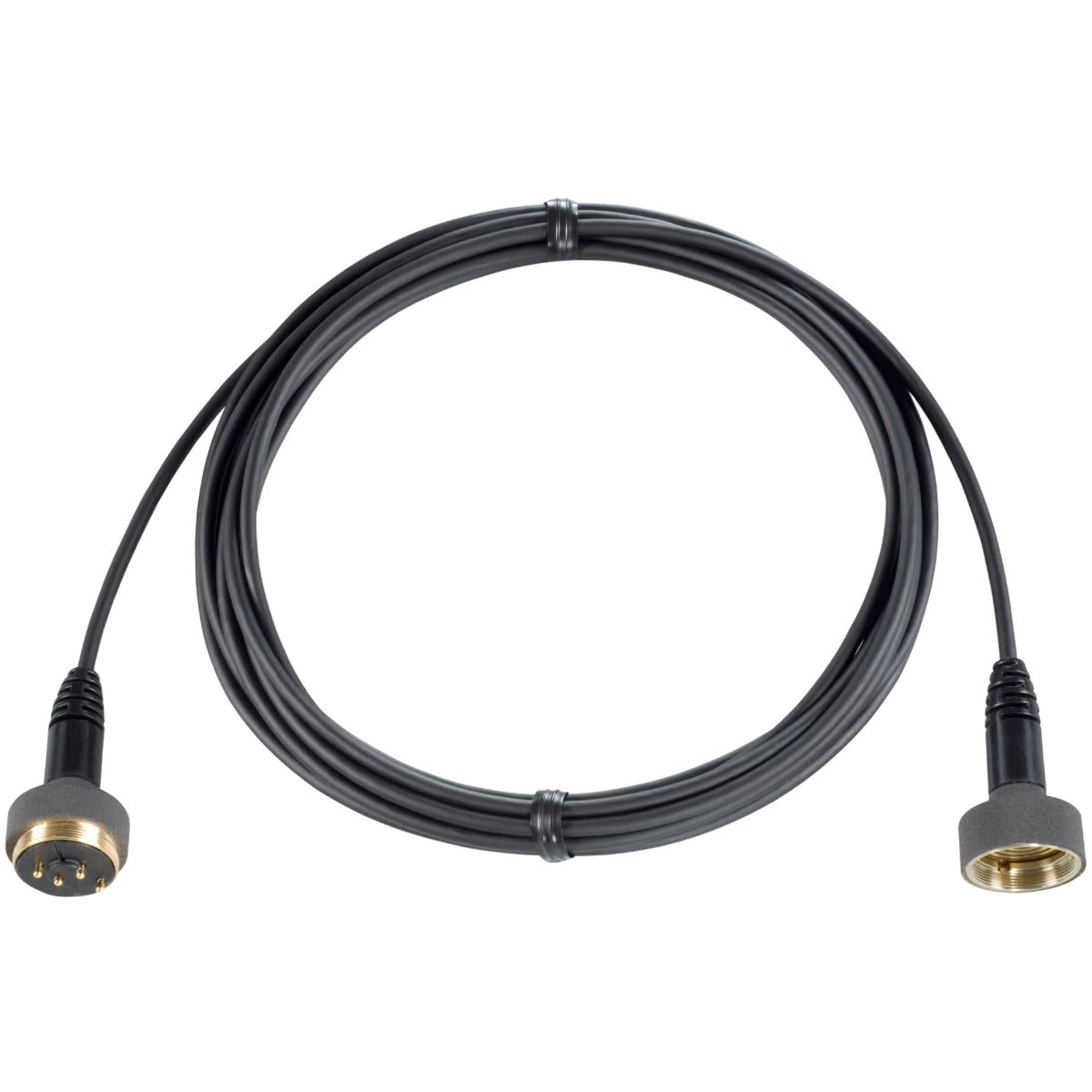

Sennheiser MZL 8003 3-Meter Remote Extension Cable (Matte Black)

The Sennheiser MZL 8003 (Article Number: 502326) is a professional, high-performance remote system cable designed exclusively for the MKH 8000 series modular RF condenser microphone platform (including the MKHC 8020, 8040, 8050, 8030, and 8090). Measuring exactly 3 meters (approx. 10 feet) in length, this specialized cable is engineered to uncouple the compact 19 mm microphone capsule head from its heavier analog output stage (MZX 8000 XLR module) or digital module (MZD 8000).

By extending the capsule away from the preamp base, it allows sound designers and broadcast engineers to mount or suspend the microphone with an almost invisible visual profile, making it a staple accessory for television talk sets, film boom operators, orchestral stage spots, and discreet theatrical overhead arrays.

Key Acoustic and Structural Attributes

• Proprietary Multi-Pin Interfacing Logic: Terminated with Sennheiser's customized system plug to system socket configuration. This is not a standard XLR microphone cable; it utilizes miniature, thread-locking concentric coupling rings that mirror the native multi-pin path found between the MKH capsule and its base.

• Architectural Low-Visibility Footprint: Built with an exceptionally thin, lightweight, and highly flexible outer jacket finished in a non-reflective Matte Black. This allows it to drop down gracefully from studio mounts or blend smoothly into stage scenery without twisting, looping, or catching camera glare.

• Advanced RF Shielding Matrix: Because it carries the delicate, unamplified analog signal straight from the RF condenser capsule before it hits the master output preamp stage, the cable is wrapped in a high-density copper shield layer to actively block smartphone signals, Wi-Fi hum, and radio frequency interference (RFI).

• Decouples Structural Handling Noise: The high flexibility and small diameter of the wire act as a physical acoustic filter, absorbing low-frequency tugging vibrations and preventing mechanical cable rumble from coloring high-definition tracking fields.

Technical Specifications Matrix

In the Box: Production Component Inventory

• 1 x Sennheiser MZL 8003 3m Remote Extension Cable (Black)

• (Note: MKH Microphone capsule heads, MZX 8000 XLR modules, and mounting clips are sold separately)

Production Deployment and Rigging Advice

Assembling the Remote Path: To implement a remote setup, carefully unscrew your MKH capsule head (such as an MKHC 8040 cardioid head) away from its standard MZX 8000 XLR bottom housing. Thread the capsule head cleanly onto the system socket side of the MZL 8003 cable until it sits flush. Take the system plug side at the opposite end of the 3m line and thread it securely into your original MZX 8000 XLR block. This hidden base block is what connects to your primary mixer or snake line to receive the required 48V phantom power.

Proper Cable Strain Relief on Booms: When deploying this 3-meter remote cable on a television boom pole or studio desk stand, use a miniature matching clip like the Sennheiser MZQ 8001. Clip the microphone setup directly by the rubber strain-relief sleeve at the base of the capsule rather than clamping the cable raw. This prevents the weight of the dropping cable from creating tension on the fine internal multi-pin contact pins, ensuring long-term signal stability.
