SKU: SEN-500548

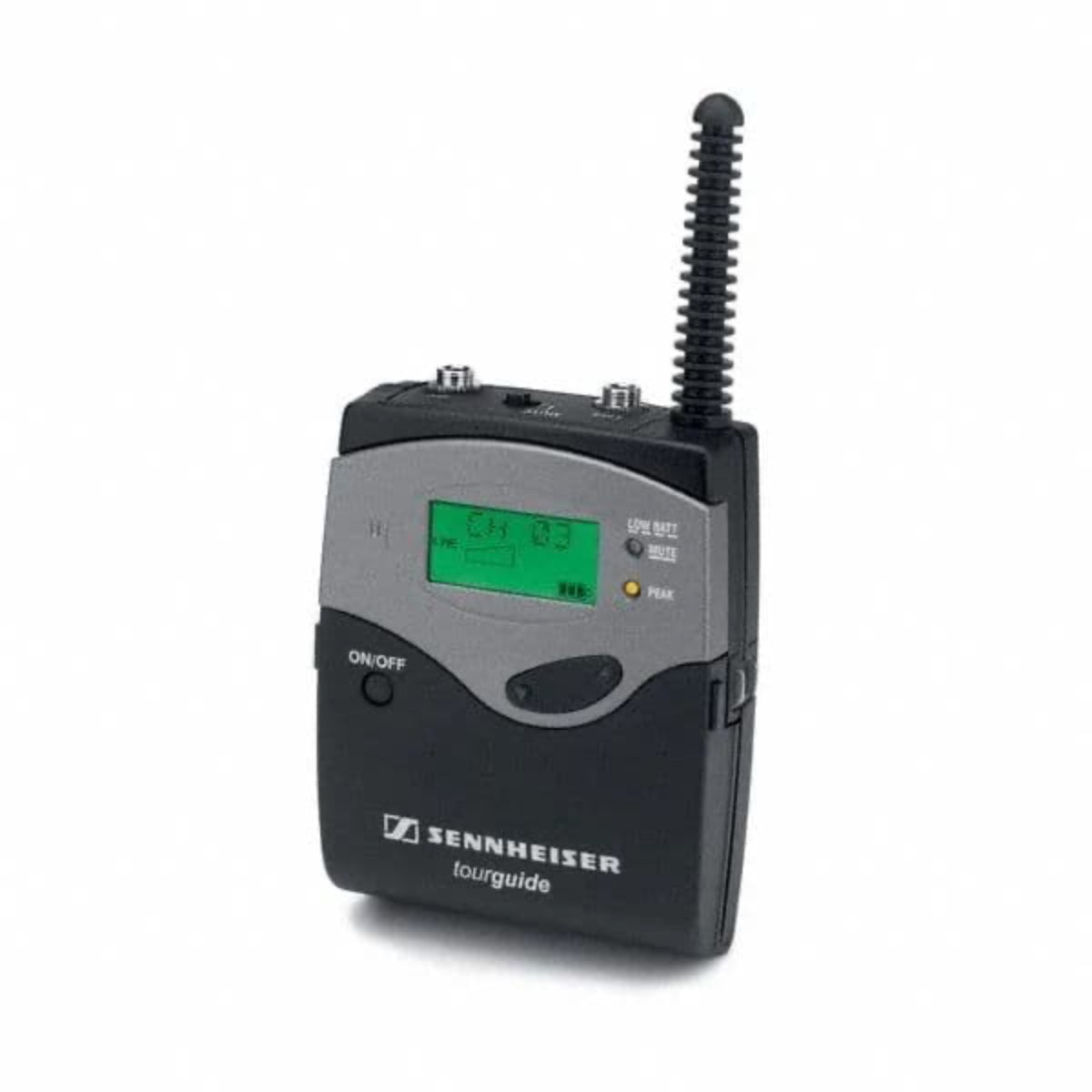

#Sennheiser SK 2020-D TourGuide, Digital Bodypack Transmitter, 863-865MHz

R 24,052.25
Tax included Shipping calculated at checkout.

The Sennheiser SK 2020-D TourGuide (Article Number: 500548) is a robust, lightweight digital bodypack transmitter engineered for guided tours, museum exhibitions, international conferences, and assistive listening environments.

Operating on a 100% digital 2 FSK modulation scheme, it completely filters out the static hiss and RF background interference common to older analog tour units, ensuring that visitors receive clear audio from the guide.

Deciphering the Frequency Band: 863–865 MHz

The 863–865 MHz identifier indicates that this transmitter is custom-tuned to the European ISM (Industrial, Scientific, and Medical) band.

  • License-Free Broadcast: This exact spectrum segment is completely free to use without an expensive RF operations license across the UK and the vast majority of Europe.

  • Fixed Interlocking Channel Selection: Within this tight 2 MHz window, the transmitter features 6 pre-configured digital channels running completely intermodulation-free. This configuration allows up to 6 separate guides to run concurrent tours in the exact same facility without bleeding into each other's audio feeds.

Key Workflow Engineering & Dual Input Routing

  • Simultaneous Mic & Line Intakes: The top interface of the bodypack features two separate, dedicated input jacks. A guide can secure a standard headset microphone (like a Sennheiser ME 3) into the 3.5mm mic jack while concurrently running pre-recorded museum music or a translated presentation into the secondary 3.5mm line jack from an external playback device.

  • Variable Input Sensitivity Control: Both inputs feature separate electronic trim sensitivity levels accessible via the internal menu framework, preventing low-volume source drop-offs or high-gain input clipping.

  • Lock Mode Defenses: Once your channels and gains are dialed in, a menu-based Lock Mode can be engaged. This locks out all physical buttons, ensuring the guide doesn't accidentally change the channel or mute the unit while handling it.

Technical Specifications Matrix

Feature Parameter Standard System Specification
Product Framework Digital UHF Bodypack Tour Guide Transmitter
RF Modulation Layout 2 FSK Digital Modulation (46K0F1D)
Carrier Frequency Band 863.000 MHz – 865.000 MHz (Europe/UK License-Free)
Available Channel Pools 6 Discrete Interlocking Frequencies
RF Output Power Base 10 mW (Optimized for stable local perimeter coverage)
Audio Frequency Response 100 Hz to 7,000 Hz
Physical Input Jacks 1x 3.5mm Screw-Locking Microphone / 1x 3.5mm Screw-Locking Line
Visual Diagnostic Screen Backlit LCD (Displays Active Channel, Battery Cell Life, and Audio Meters)
Status Warning LEDs Yellow: Audio Peak Signal / Red: Transmitter Muted or Low Battery
Battery Life Metric Approximately 8 Hours continuous runtime
Power Profile Variants Direct support for BA 2015 Accupack (included) or 2x standard AA cells
Dimensions & Weight 82 x 64 x 24mm/ Ultra-lightweight approx 160grams

Hardware Status LED Indicator Guide

The bodypack uses two distinct diagnostic indicator lights located at the top edge for at-a-glance status tracking during a tour:

  • 🟨 Flashing/Solid Yellow: Peak Warning. The guide's voice or line level is hitting the input threshold too hard, indicating you need to turn down the internal input sensitivity.

  • 🟥 Solid Red: The transmitter is explicitly Muted or the battery cells have dropped into critical shutdown parameters (Low Battery).

System Component Advisory

⚠️ Receiver Complement Requirement: The SK 2020-D bodypack transmitter requires matching 2020-D digital receiver units to pass audio. It is fully compatible with both the Sennheiser HDE 2020-D-II Stethoset receivers (all-in-one chin-bow headsets) and the EK 2020-D bodypack receivers (designed for standard external headphones or assistive induction neck-loops). It will not transmit to standard analog evolution wireless receiver racks.
