SKU: SEN-506303

Sennheiser SKM6000BKA5-A8

R 51,516.55
Tax included Shipping calculated at checkout.

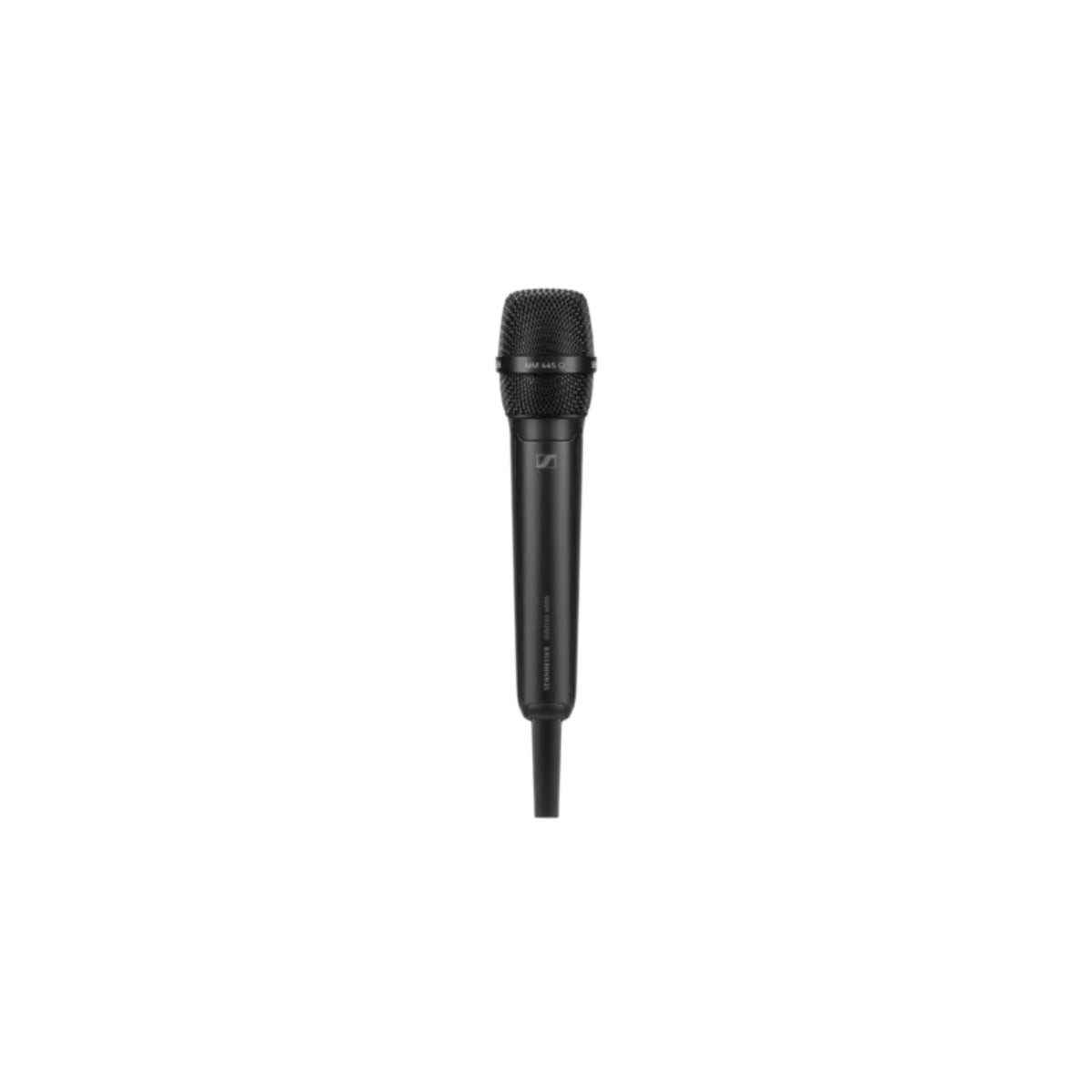

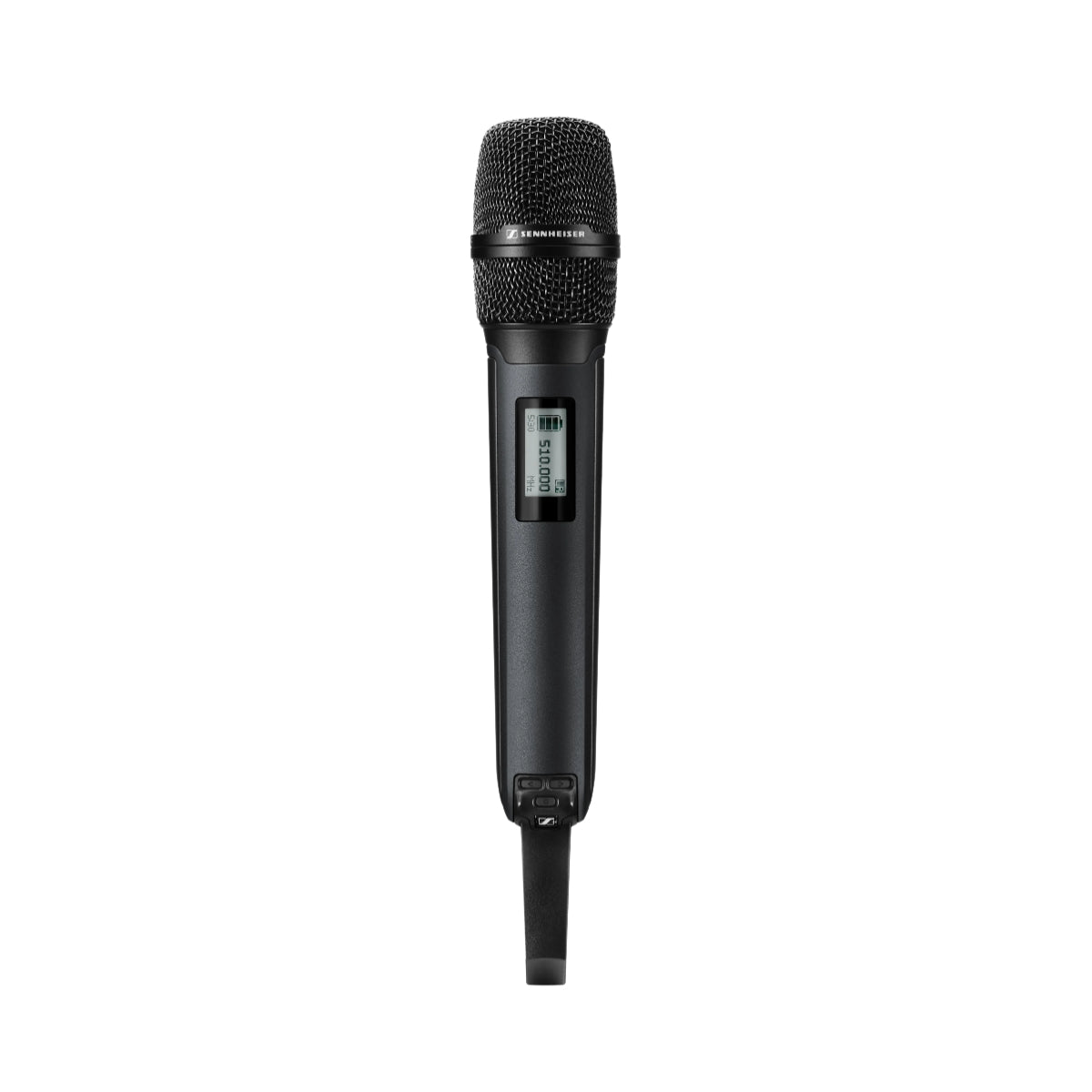

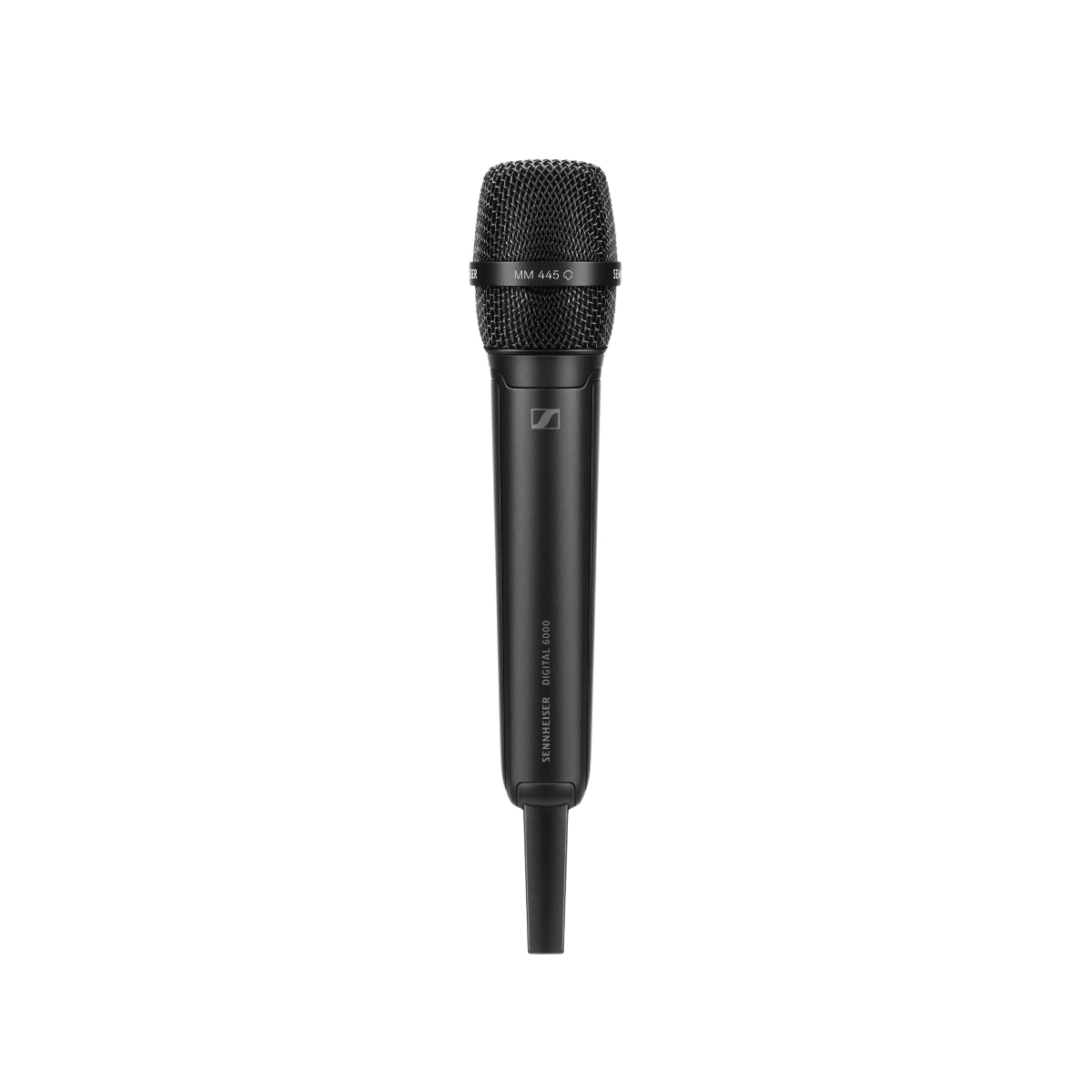

Sennheiser SKM 6000 BK A5-A8 Digital Handheld Wireless Transmitter

The Sennheiser SKM 6000 BK A5-A8 (Article Number: 506303) is a flagship, professional digital handheld wireless transmitter from Sennheiser’s elite Digital 6000 series. Engineered as a modular, "body-only" unit, this transmitter is built for top-tier touring acts, broad-scale theater productions, major broadcast studios, and high-security corporate environments demanding premium audio clarity and maximum RF stability.

This specific model operates in the A5-A8 frequency band (550.000 MHz to 638.000 MHz). With an 88 MHz switching bandwidth, it features advanced, intermodulation-free digital architecture that allows audio engineers to pack multiple channels tightly together in congested RF spectrums without dropouts.

Key Acoustic and RF Performance Attributes

  • Intermodulation-Free Equidistant Grid: Utilizing technology from the legendary Digital 9000 system, the SKM 6000 operates linearly without producing intermodulation distortion. This permits an equidistant frequency grid layout where channels can be stacked at fixed 600 kHz intervals, completely eliminating complex intermodulation calculations.

  • Broad Modular Capsule Compatibility: The transmitter features the Sennheiser standard capsule interface. It is fully compatible with an extensive selection of premium Sennheiser evolution wireless, 2000, and Digital 9000 heads, as well as high-end studio options like the Neumann KK 204 and KK 205 condenser capsules.

  • Proprietary SeDAC Audio Codec: Employs the Sennheiser Digital Audio Codec (SeDAC) and SePAC processing to deliver artifact-free sound, linear high-frequency detailing, and pristine dynamics across a flat 30 Hz to 20,000 Hz system response.

  • Link Density (LD) High-Capacity Mode: For ultra-crowded environments, switching into Link Density mode doubles spectral efficiency, allowing engineers to host up to 5 discrete audio transmission links per 1 MHz of bandwidth without losing signal tracking stability.

  • Hardware AES 256 Encryption: Outfitted with secure, military-grade AES 256 digital encryption to prevent signal hijacking or unauthorized scanning, ensuring complete confidentiality for high-profile political events and private corporate keynotes.

Technical Specifications Matrix

Feature Parameter Hardware Specification Profile
Model Reference Name SKM 6000 BK A5-A8
Official Article Number 506303
RF Operational Band A5-A8 Block (550.000 MHz to 638.000 MHz)
Switching Tuning Bandwidth 88 MHz available (US region restricted to 550.000–607.800 MHz)
Digital Audio Codec SeDAC / SePAC Options
System Audio Frequency Response 30 Hz to 20,000 Hz (3 dB drop)
Audio Gain Adjustment Scale 0 dB to +62 dB (adjustable in highly precise 3 dB steps)
Integrated Low-Cut Filter Switchable: 60 Hz, 80 Hz, 100 Hz, 120 Hz
Modulation Schemes Long Range (LR) Mode / Link Density (LD) Mode
RF Output Power 25 mW RMS base / 50 mW Peak
Power Solution (Transmitter) Optional BA 60 Li-ion Accupack (5.5 hrs) or B 60 Dry Battery Case (2 x AA)
Physical Dimensions Array 270 mm (Length) x 40 mm (Diameter)
Physical Housing Profile Rugged, low-weight Magnesium Alloy composite
Net Hardware Weight Approx. 350 grams (including BA 60 pack and standard capsule)

In the Box: Production Package Inventory

  • 1 x SKM 6000 Handheld Transmitter (Black, A5-A8 Band)

  • 1 x MZQ 9000 Heavy-Duty Microphone Stand Clip

  • 1 x Quick Start Guide

  • 1 x Safety Guide

  • (Note: Microphone capsule and battery packs are sold separately to match user preferences)

Production Deployment and Modular Fitting Advice

System Architecture and Capsule Requirements: Remember that the SKM 6000 is a modular component and cannot function on its own. It requires a compatible Digital 6000 series receiver (such as the EM 6000 or EM 6000 Dante) and a screw-on microphone head. When threading a capsule (such as an MMD 935 or Neumann KK 204) onto the handle, ensure the contact pins are clean and free of dust. Screw the capsule down firmly hand-tight until it stops; do not over-torque.

Managing Power Options on Stage: To keep active stage tracking seamless, the SKM 6000 requires either the BA 60 rechargeable lithium-ion battery pack (offering 5.5 hours of runtime) or the B 60 adapter frame for standard AA batteries. Monitor real-time telemetry on the receiver rack face or the transmitter's backlit display. If you notice severe voltage drop warning bars when using AA alkaline cells, prioritize a hot-swap before the 4-hour mark to maintain stable signal output.
