SKU: SEN-700536

Sennheiser SPECTERA LIC (ZONE 05)

R 1.15
Tax included Shipping calculated at checkout.

The Sennheiser SPECTERA LIC (ZONE 05) (Sennheiser Article Number: 700536) is a region-specific device activation license required to operate the flagship Spectera Base Station.

Because Spectera utilizes groundbreaking wideband Wireless Multichannel Audio System (WMAS) technology—which aggregates dozens of audio channels into massive 6 MHz or 8 MHz transmission blocks—the hardware must be strictly locked to local telecommunications laws. The Zone 05 license is hard-coded to comply with the legal RF limits, spectrum boundaries, and maximum transmission power outputs allowed in South Africa.

The Role of the Spectera License

The Spectera Base Station ships globally as identical 1RU hardware modules, but it remains locked and inoperable out of the box. Installing the SPECTERA LIC (ZONE 05) act as a compliance key. It writes localized configuration files directly to the unit's internal firmware to permanently manage:

  • The Frequency Boundaries: It tells the base station exactly which TV channels and microwave gaps are legal to broadcast over.

  • Maximum RF Transmission Power: It hard-caps the variable RF power setting (10mW to 100mW) to match the country's specific legal limit, ensuring your system doesn't bleed into unauthorized city emergency bands.

  • Bandwidth Multi-Carriers: It limits the broad RF footprints to the specific 6 MHz or 8 MHz windows allocated for local wireless microphones.

Zone 05 Spectral Mapping (South Africa)

Once the Zone 05 key is flashed via the LinkDesk control framework, it unlocks access to the following frequencies:

Operational Band Exact Allowed Frequency Ranges
UHF Broadcast Band 470.000 MHz – 608.000 MHz & 630.000 MHz – 698.000 MHz
1G4 Studio/Touring Band 1350.000 MHz – 1400.000 MHz

Activation Best Practices

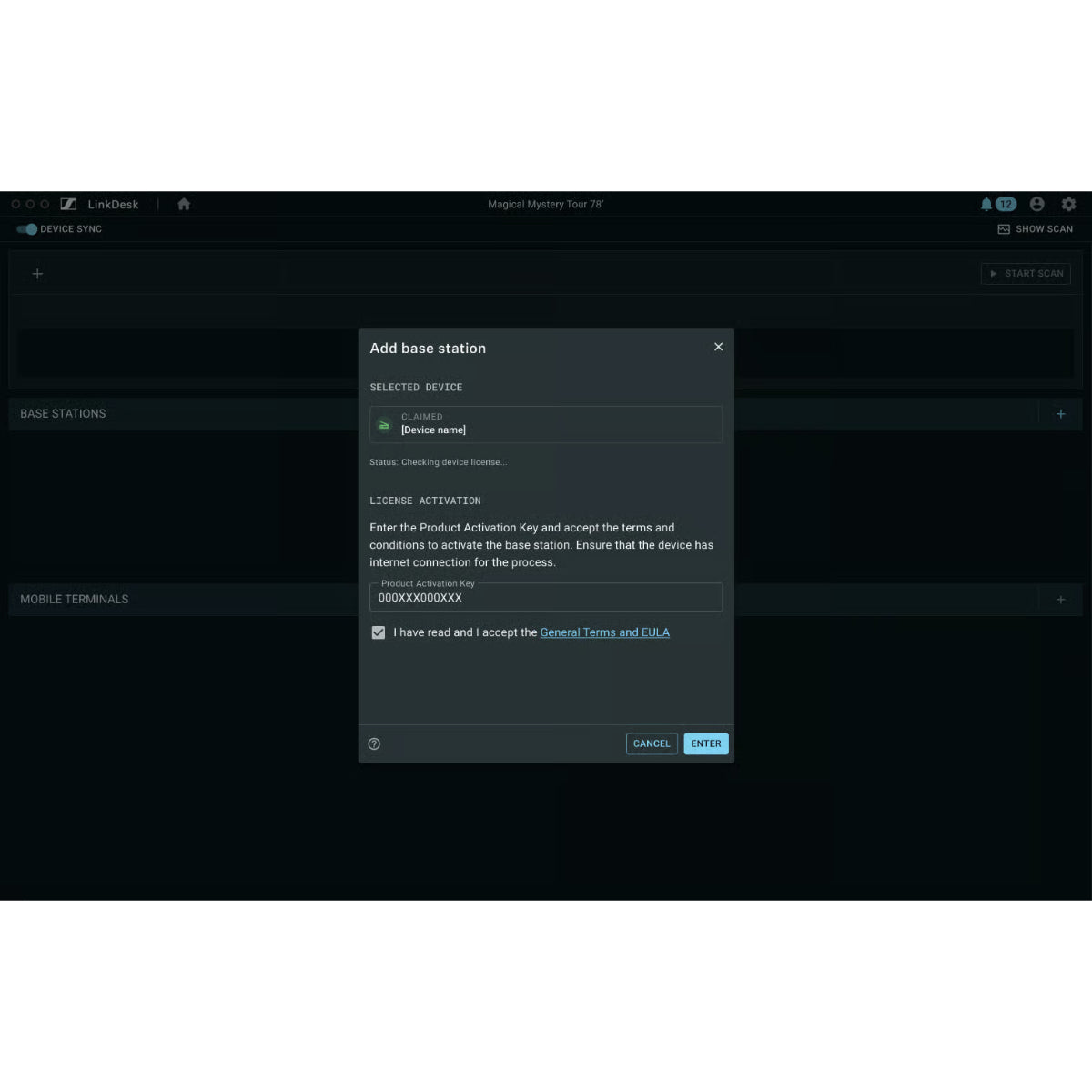

⚠️ The Internet Requirement: To register the license, your computer must be running Sennheiser LinkDesk or logged into the local Spectera WebUI (https://[deviceIP]/). Most importantly, the base station’s network port must be plugged into a switch with an active internet connection to ping the Sennheiser activation servers—connecting the base station directly to a standalone laptop network port will cause the validation to fail.

The One-Device Limit: Licenses are device-specific and non-transferable. One single license code binds permanently to the unique MAC address/Hardware ID of an individual base station. If you have an A and B main/backup base station rack setup, you must purchase a separate Zone license for each physical box.
