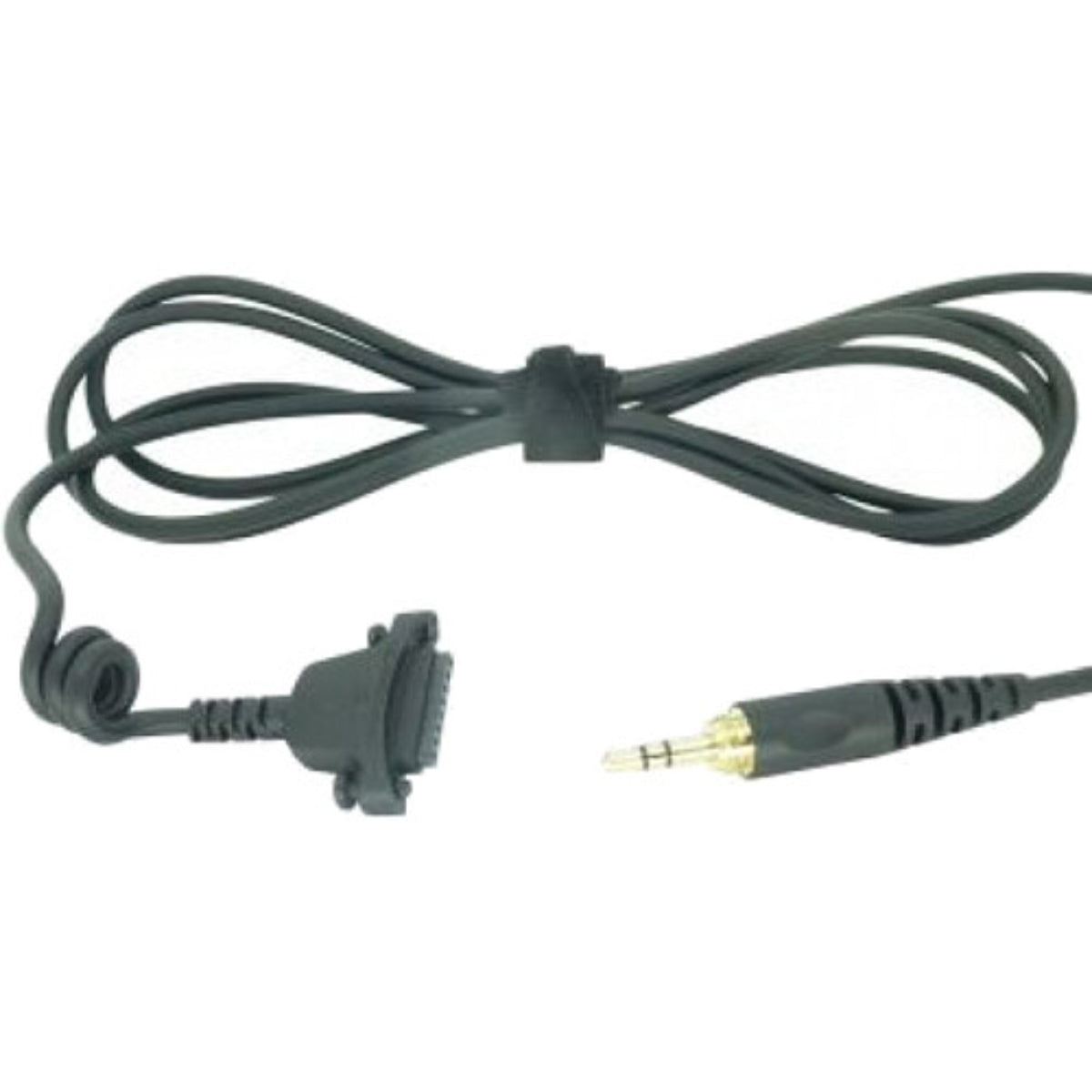

Sennheiser HD 26/300 PRO - Straight Cable

The Sennheiser HD 26/300 PRO Straight Cable (Article Number: 552746) is a factory-original original equipment manufacturer (OEM) replacement audio cable designed exclusively for the Sennheiser HD 26 PRO, HD 300 PRO, and HD 300 PROtect professional monitoring headphone series.

Headphone leads are the most frequent point of wear and failure in active production gear. This premium replacement copper cable allows broadcast engineers, studio technicians, and field recordists to instantly restore their headphones to service right at the desk without tools or a lengthy factory repair process.

Key Architectural and Engineering Attributes

• Structure-Borne Noise Reduction: Although labeled a straight cable, the assembly integrates a specialized micro-coiled segment located near the top headphone attachment block. This intentional acoustic loop acts as a mechanical shock absorber, dampening structure-borne handling noises and friction vibrations before they can travel up the jacket and rattle into the earcup.

• Dual-Screw Headphone Locking Attachment: The headphone-side connector housing is equipped with dedicated mechanical anchor points and integrated locking screws. This secure attachment method fastens the lead firmly to the headband assembly, ensuring the cable cannot be accidentally jerked loose during active field reporting (ENG), studio tracking, or broadcast shifts.

• Threaded 3.5 mm Stereo Plug: The source termination end features a factory-molded 3.5 mm TRS stereo mini-jack plug. The outer casing is precision-threaded to cleanly accept a standard Sennheiser 6.3 mm ($1/4\text{"}$) screw-on adapter, ensuring reliable physical connectivity with both portable recording packs and professional studio mixing consoles.

Technical Specifications Matrix

Installation and Field Replacement Guidance

Zero-Tool Field Installation: To replace a damaged cable, gently loosen the two small retaining screws securing the old cable block to the headband. Disconnect the old lead pins from the headphone earcups. Align the new proprietary modular connector block from the 552746 cable into position, gently seat the left and right ear cup connector pins, and hand-tighten the retention screws until snug.

Minimize Mechanical Strain: While the micro-coiled segment is uniquely engineered to absorb tugs and reduce structural rubbing noise, avoid wrapping the cable tightly around the ear cups when coiling the headphones for storage. Tight wrapping creates unnecessary stress curves near the strain-relief boots, which can cause internal copper fatigue over time. Coil the cable loosely in a natural circle before sliding your headphones into their kit case.
