Blackmagic Design 2110 IP SDI to HDMI 12G-10

Blackmagic Design 2110 IP SDI to HDMI 12G

The Blackmagic Design 2110 IP SDI to HDMI 12G is a specialized broadcast converter designed to bridge the gap between traditional SDI/HDMI equipment and modern SMPTE 2110 IP video networks. This "10" model indicates its ability to handle up to 10G Ethernet bandwidth, making it a compact and powerful solution for monitoring IP video feeds on standard HDMI displays.

Technical Functionality

This device acts as a "de-encapsulator" for IP video. It takes a SMPTE 2110 uncompressed video stream from an IP network and converts it into a high-quality 12G-SDI or HDMI signal for local monitoring.

• 12G-SDI & HDMI 2.0: Supports all video standards from SD and HD up to Ultra HD 2160p60.

• Bi-Directional Capability: While primarily used to convert IP to HDMI/SDI, the unit also features a 12G-SDI input, allowing you to send a local SDI source into the 2110 IP network simultaneously.

• Zero Latency: Built with hardware-based processing to ensure that the conversion from IP to baseband video happens with no perceptible delay, which is critical for live broadcast monitoring.

IP Network Features

The converter is fully compliant with the SMPTE 2110 suite of standards for professional IP media:

• SMPTE 2110-20/30/40: Handles uncompressed video, digital audio, and ancillary data (like closed captions and timecode) as separate, synchronized streams.

• NMOS Integration: Supports IS-04 (discovery/registration) and IS-05 (connection management). This means the converter will automatically appear in IP routing software (like a Videohub or third-party controller) as a source or destination.

• PTP Synchronization: Uses Precision Time Protocol (IEEE 1588) to stay in perfect frame-sync with every other device on the broadcast network.

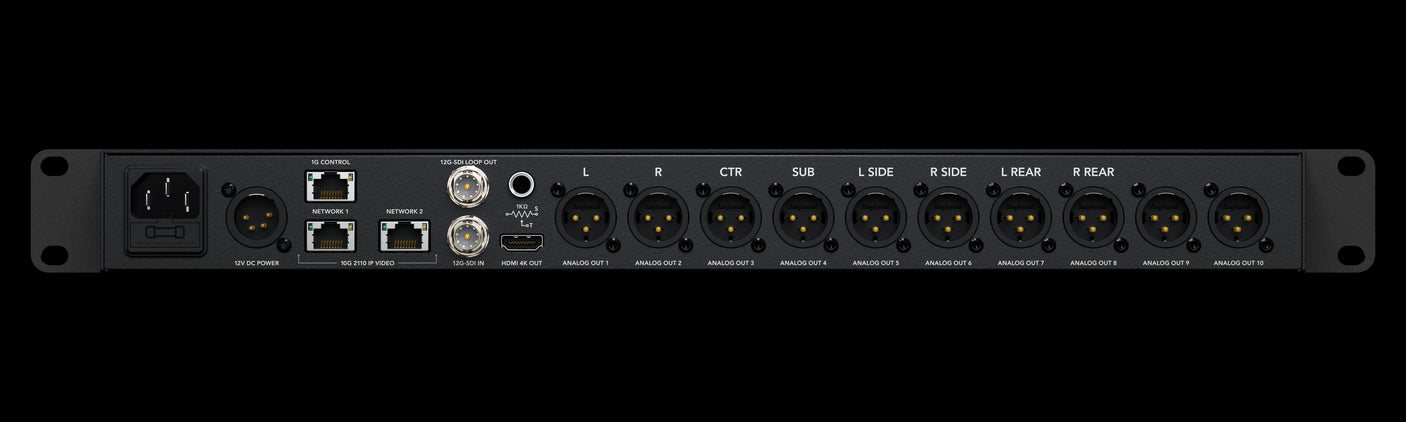

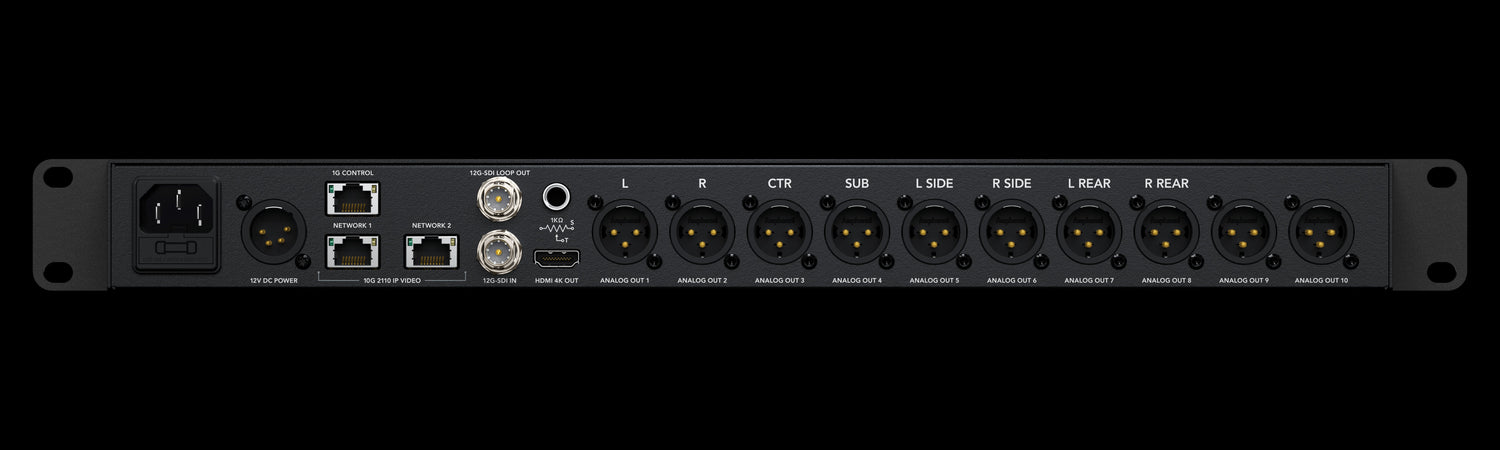

Hardware Design and Power

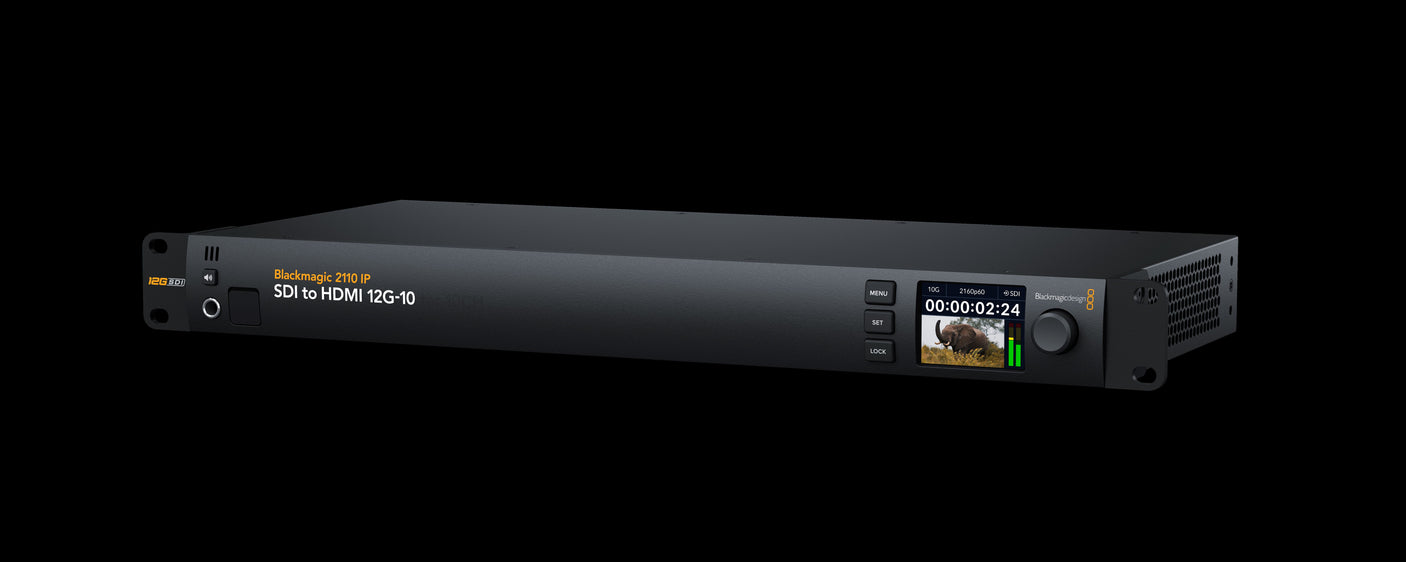

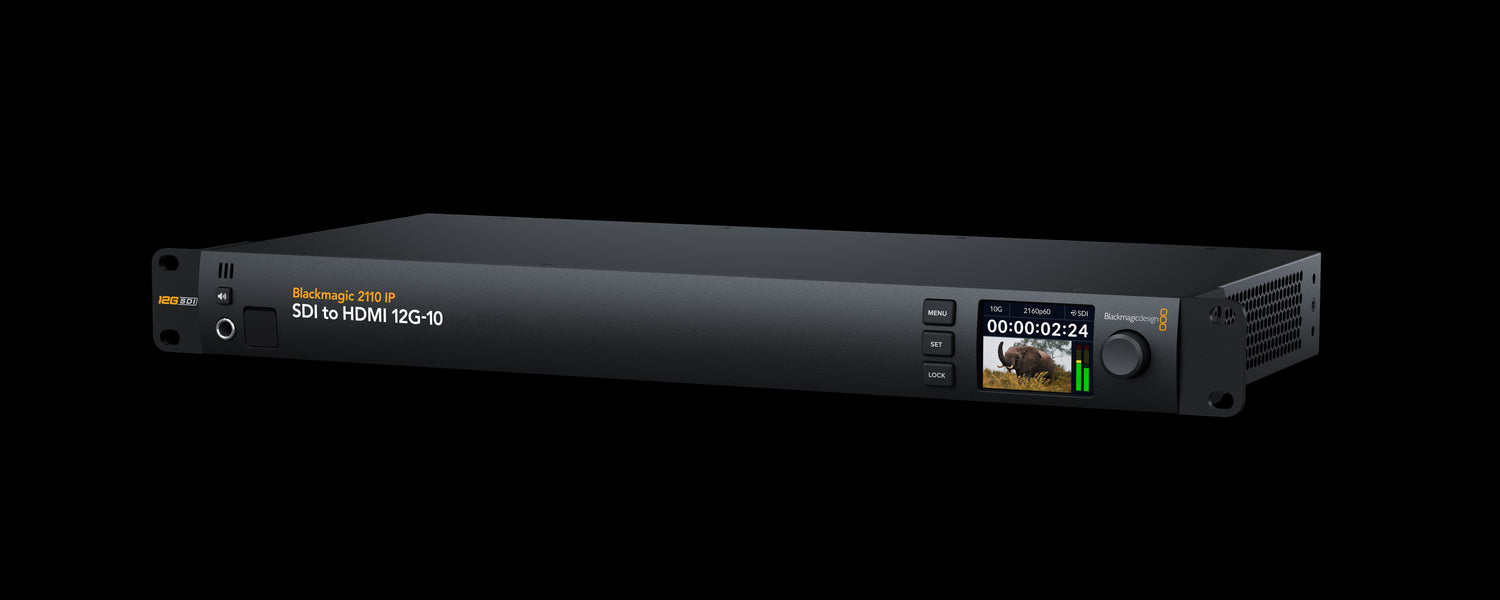

The unit is built into the compact "Teranex Mini" style chassis, allowing it to be used on a desktop or rack-mounted:

• 10G Ethernet (RJ45): Uses standard Copper 10G Ethernet cabling (Cat6A or higher), allowing it to integrate into existing 10G network infrastructure without needing specialized fiber optic SFP modules.

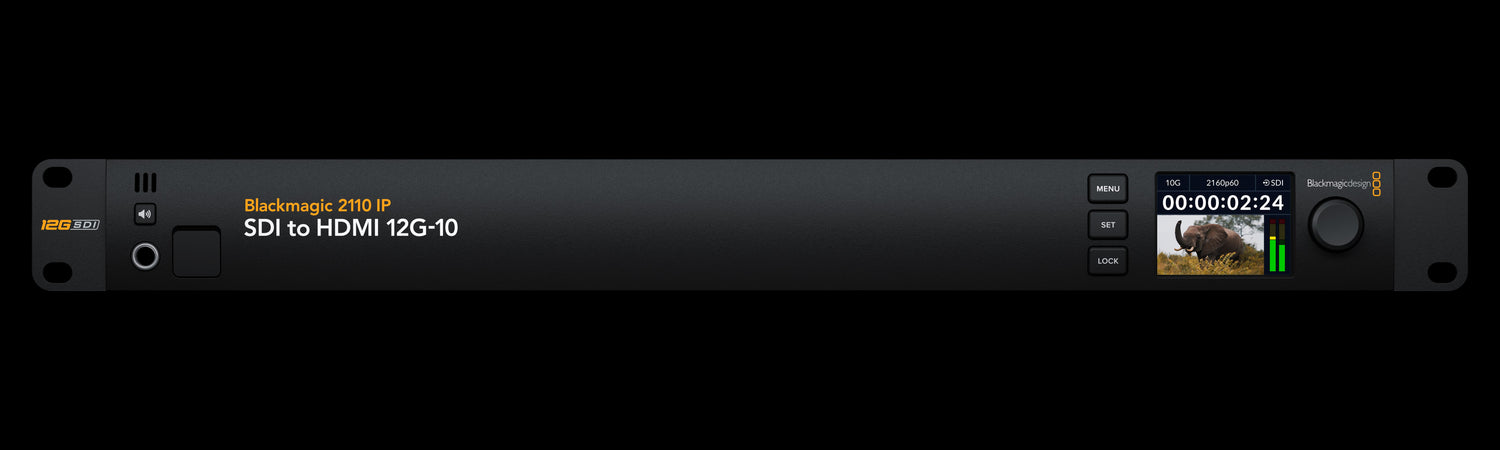

• LCD Front Panel: Features a built-in color display that shows the video feed, audio meters, and technical network status (IP address, PTP sync status, etc.).

• Power Options: Can be powered via a standard AC (IEC) cable or through PoE+ (Power over Ethernet), allowing the device to be powered directly from the network switch for a cleaner installation.

Key Applications

• Green Room/Office Monitoring: Send any camera or program feed from a massive 2110 IP network to a standard consumer television via HDMI.

• SDI Bridge: Use it to connect an older SDI-only broadcast monitor into a modern IP-based studio.

• Point-to-Point Video: Pair two units to send 4K 12G-SDI video across a building using only a single Cat6A network cable.

Operational Benefit

The 2110 IP SDI to HDMI 12G removes the complexity and high cost usually associated with IP video. Because it uses standard 10G RJ45 connections and includes NMOS support, it allows broadcasters to treat IP video feeds with the same "plug-and-play" simplicity as traditional SDI cables, while gaining the massive routing flexibility of a network-based system.

Professional Tip

When setting up this converter on a busy network, ensure your network switch is configured for IGMP Snooping. Because SMPTE 2110 uses multicast traffic, a properly configured switch will ensure the high-bandwidth video data is only sent to the converter's specific port, preventing the rest of your network from being "flooded" with data.
