Blackmagic Design ATEM Television Studio HD8 2TB

The Blackmagic Design ATEM Television Studio HD8 2TB is a professional, all-in-one live production switcher that integrates a broadcast-grade control surface with a massive 2TB internal NVMe storage drive. Designed for high-definition (HD) workflows, this model is the ideal choice for broadcasters, corporate video teams, and live event producers who need a powerful, standalone studio that doesn't require a mountain of external gear.

Internal 2TB Network Storage & Cloud Workflow

The defining feature of this specific model is the integrated 2TB of high-speed flash storage. By building the storage directly into the chassis, Blackmagic has transformed the switcher into a Network Attached Storage (NAS) device.

Through the built-in 4-port 10G Ethernet switch, any computer on your local network can see the switcher as a shared drive. This allows editors to start working on recorded footage while the event is still being filmed. Furthermore, the internal 2TB drive supports Blackmagic Cloud Sync, which can automatically upload your local recordings to Dropbox or Google Drive. This enables a global workflow where a producer in a different country can begin reviewing the files just seconds after they are recorded.

Comprehensive Physical Control Surface

The HD8 2TB is designed for rapid, tactile operation. Unlike software-based switchers that rely on a mouse and keyboard, the HD8 provides the physical feedback required for high-stakes live environments:

• Tactile Buttons: High-quality, backlit buttons for source selection, transitions, and keying.

• T-Bar Fader: A professional-grade fader for smooth, manual control over wipes and cross-dissolves.

• 3-Axis Joystick: Allows for precise, real-time positioning of DVE (Digital Video Effects) for picture-in-picture layouts.

• Dedicated Audio Mixer: The Fairlight audio control section includes physical knobs for adjusting gain, EQ, and dynamics for the internal 58-channel mixer.

Professional 3G-SDI Infrastructure

The switcher features eight 3G-SDI inputs, each equipped with its own standards converter. This is a critical workflow feature: you can connect any source—whether it’s a 720p drone feed, a 1080i legacy camera, or a 1080p laptop—and the switcher will automatically convert it to the project’s set video standard. This ensures a consistent, glitch-free output without the need for external conversion hardware.

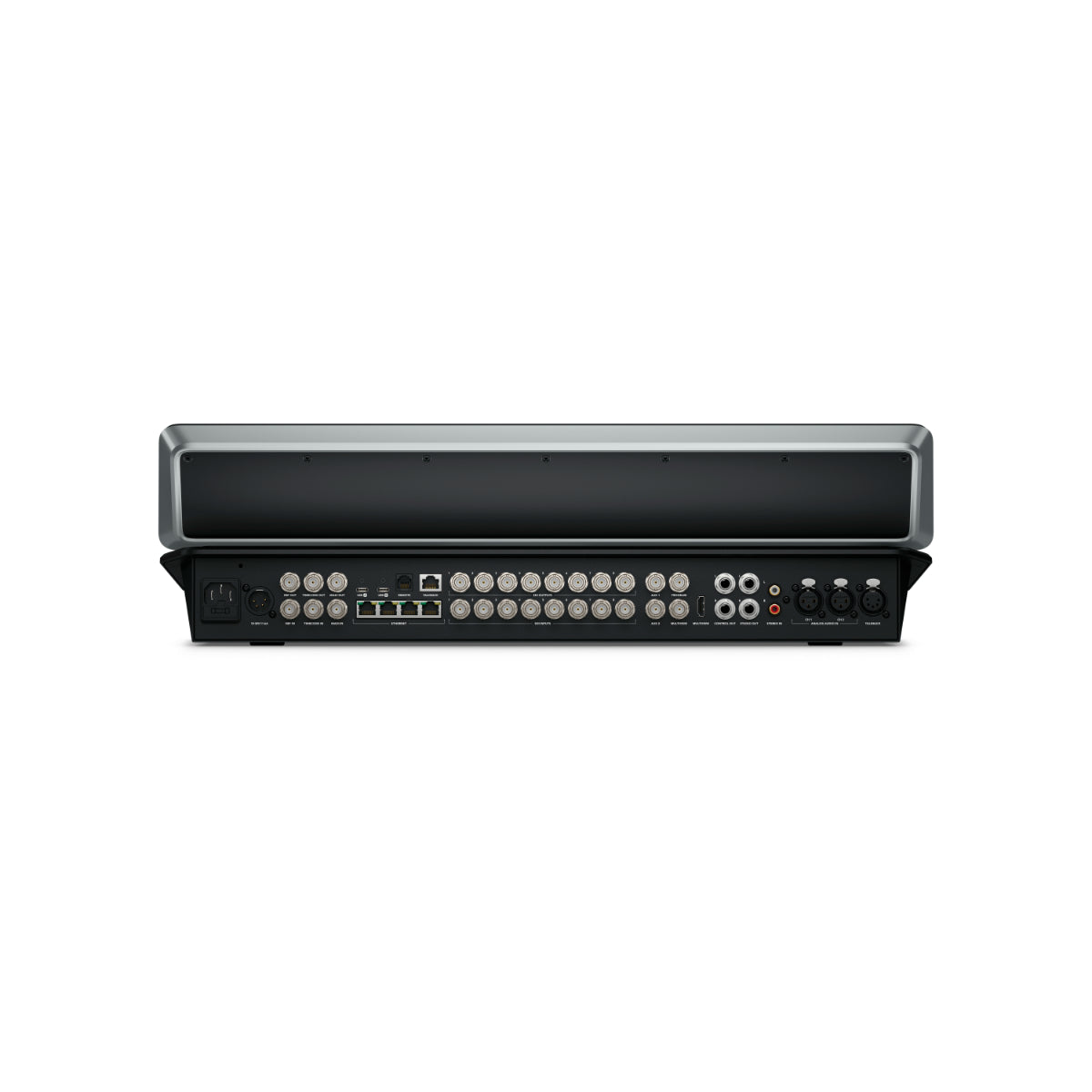

For output, the unit provides two 3G-SDI auxiliary outputs, a program output, and a dedicated multiview output via both SDI and HDMI. The multiview allows you to monitor all eight sources, plus preview and program feeds, with live audio meters and tally indicators on a single screen.

Advanced Effects and Keying

To elevate the production value of your live stream, the HD8 2TB includes a suite of creative tools:

• SuperSource Processor: This dedicated multi-layer engine allows you to create complex "box" layouts (like a four-person panel discussion) without using the main DVE.

• ATEM Advanced Chroma Keyers: Four independent keyers provide professional-grade green and blue screen effects, capable of handling fine details like hair and shadows for realistic virtual sets.

• Media Pool: The unit stores up to 20 high-quality stills and 400 frames of 720p video (or 200 frames of 1080p video) for animated logos, lower thirds, and "stinger" transitions.

Streaming and Redundancy

The HD8 2TB features a powerful hardware streaming engine, allowing you to broadcast directly to YouTube, Facebook, or Twitch via Ethernet. For productions where "the show must go on," the unit offers significant redundancy features:

1. Power: Dual inputs (AC and 4-pin 12V DC) allow for battery backup.

2. Internet: If the venue’s Ethernet fails, you can tether a 5G or 4G smartphone to the USB-C port to continue the broadcast via mobile data.

Technical Specifications Summary

• Video Format: Supports up to 1080p60 (10-bit 4:2:2).

• Storage: 2TB Internal NVMe for recording and cloud syncing.

• Inputs: 8x 3G-SDI with full standards conversion.

• Outputs: 1x Program, 2x Aux, 1x Multiview (SDI/HDMI).

• Networking: 4-port 10G Ethernet switch built-in.

• Audio: 58-channel Fairlight mixer; XLR, RCA, and MADI support.

The Blackmagic ATEM Television Studio HD8 2TB is the perfect "all-rounder" for professional HD production, offering the stability of a physical control panel with the cutting-edge convenience of cloud-integrated network storage.
