SKU: BLA-SWATEMTVSTC/HD08ISO

Blackmagic Design ATEM Television Studio HD8 ISO

R 90,039.25
Tax included Shipping calculated at checkout.

Blackmagic Design ATEM Television Studio HD8 ISO

The Blackmagic Design ATEM Television Studio HD8 ISO is the most advanced HD model in the Television Studio lineup. It takes the all-in-one design of the standard HD8 and adds powerful ISO recording capabilities, allowing you to record all 8 inputs as individual video files simultaneously.

In 2026, it remains the "gold standard" for professional HD field production, house of worship broadcasts, and high-end streaming where post-production flexibility is required.

The "ISO" Advantage

While the standard HD8 records only the final "Program" feed, the ISO model performs 10 simultaneous recordings:

  1. 8 Individual Inputs: Each 3G-SDI source is recorded as a clean, independent H.264 file with full audio.

  2. Program Feed: The live-switched "Master" cut of your show.

  3. DaVinci Resolve Project File: Automatically creates a .drp file that links to all recorded ISOs. You can open this file in DaVinci Resolve and see your live switch exactly as it happened on a timeline, allowing you to fix "bad cuts" or swap out shots in seconds.

Core Functionality

  • 8 Standards-Converted 3G-SDI Inputs: Every input features a dedicated hardware converter. You can mix and match 720p, 1080i, and 1080p sources; the switcher handles the conversion automatically to match your project's frame rate.

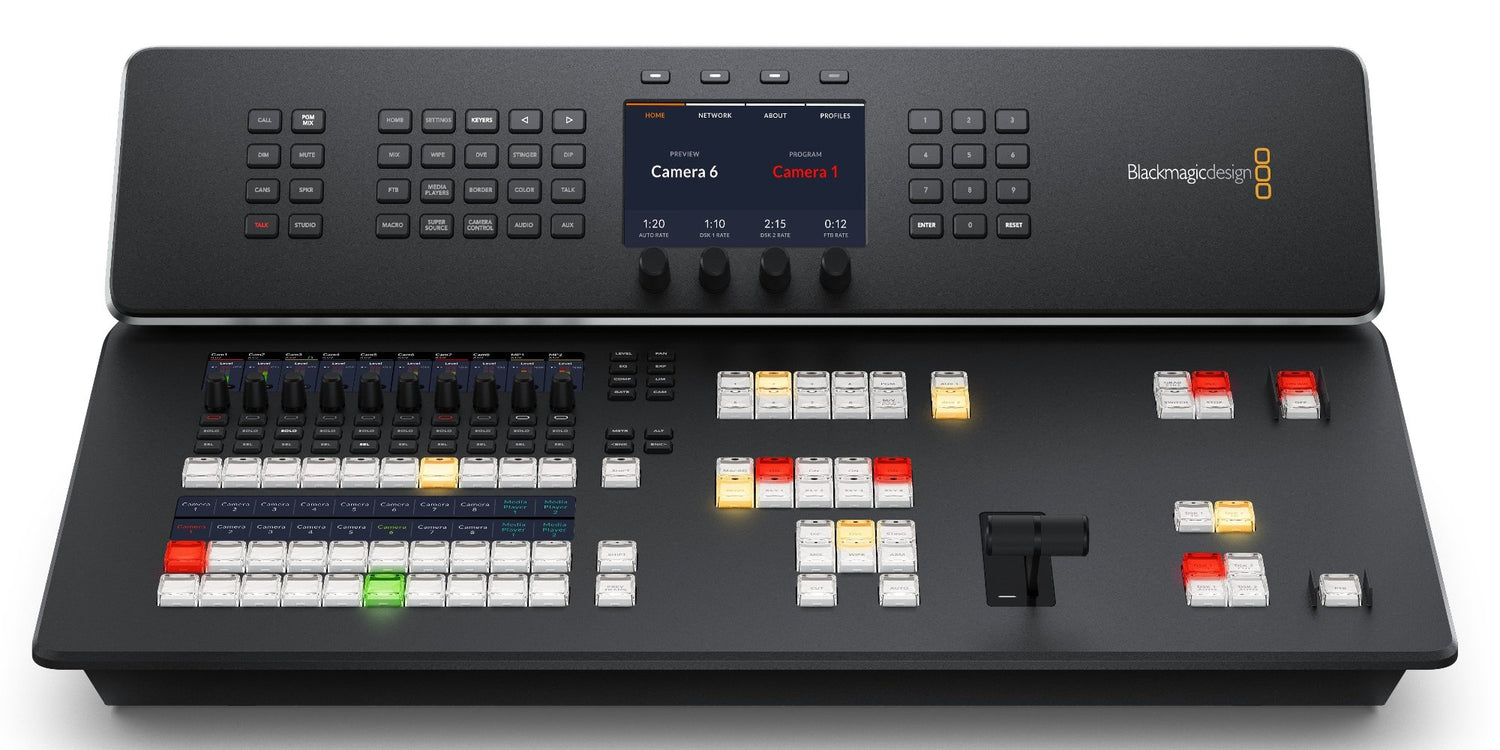

  • Integrated Control Surface: Features high-end broadcast buttons, a weighted T-bar fader, and a 3-axis joystick for DVE and PTZ control.

  • Support for Remote Cameras: Can connect to remote cameras via the internet or local Ethernet. This allows you to bring in a guest speaker from across the world as a low-latency 3G-SDI source with full tally and camera control support.

  • Massive Audio Engine: Includes a 58-channel Fairlight audio mixer. It handles the 8 SDI inputs, 2 XLR inputs, 2 RCA inputs, and a 32-channel MADI digital audio input.

Technical Specifications

Feature Specification
Max Video Standard 1080p60 (3G-SDI)
ISO Recording 8 x Inputs + 1 x Program + 1 x Resolve Project
Total Inputs 8 x 3G-SDI (Standards Converted)
Aux Outputs 2 x 3G-SDI

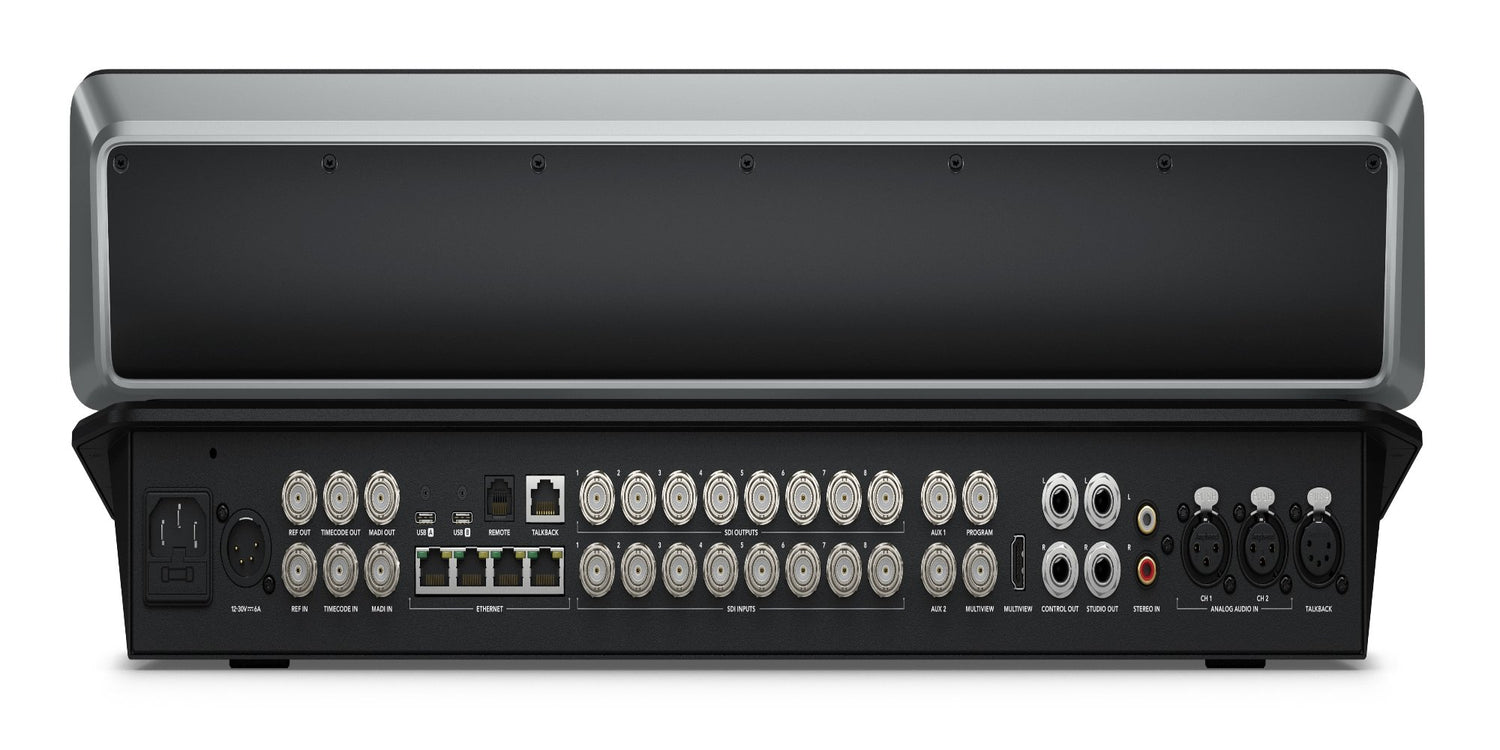

Audio I/O 2 x XLR (Analog), 1 x BNC MADI (Digital), 2 x RCA
Talkback 5-pin XLR Aviation Headset & RJ45 for 3rd party systems
Network 4-port Gigabit Ethernet Switch (Built-in)
Streaming Built-in hardware encoder (RTMP via Ethernet or USB-C)
Storage 2 x USB-C for external disks or optional internal M.2 NVMe

Operational Insight

In 2026, the HD8 ISO is frequently used as a Cloud-connected bridge. With its built-in Ethernet switch and support for internal M.2 storage, it can record your show and automatically sync the files to Blackmagic Cloud or Dropbox. This allows an editor in a different city to begin editing the "clean" camera ISOs while the live event is still in progress.

Expert Note on Audio: The MADI BNC input is a hidden gem. By adding a single ATEM Microphone Converter, you can add 4 to 32 more professional XLR inputs to the switcher over a single coax cable, effectively turning this into a massive audio mixing desk for complex musical performances.
