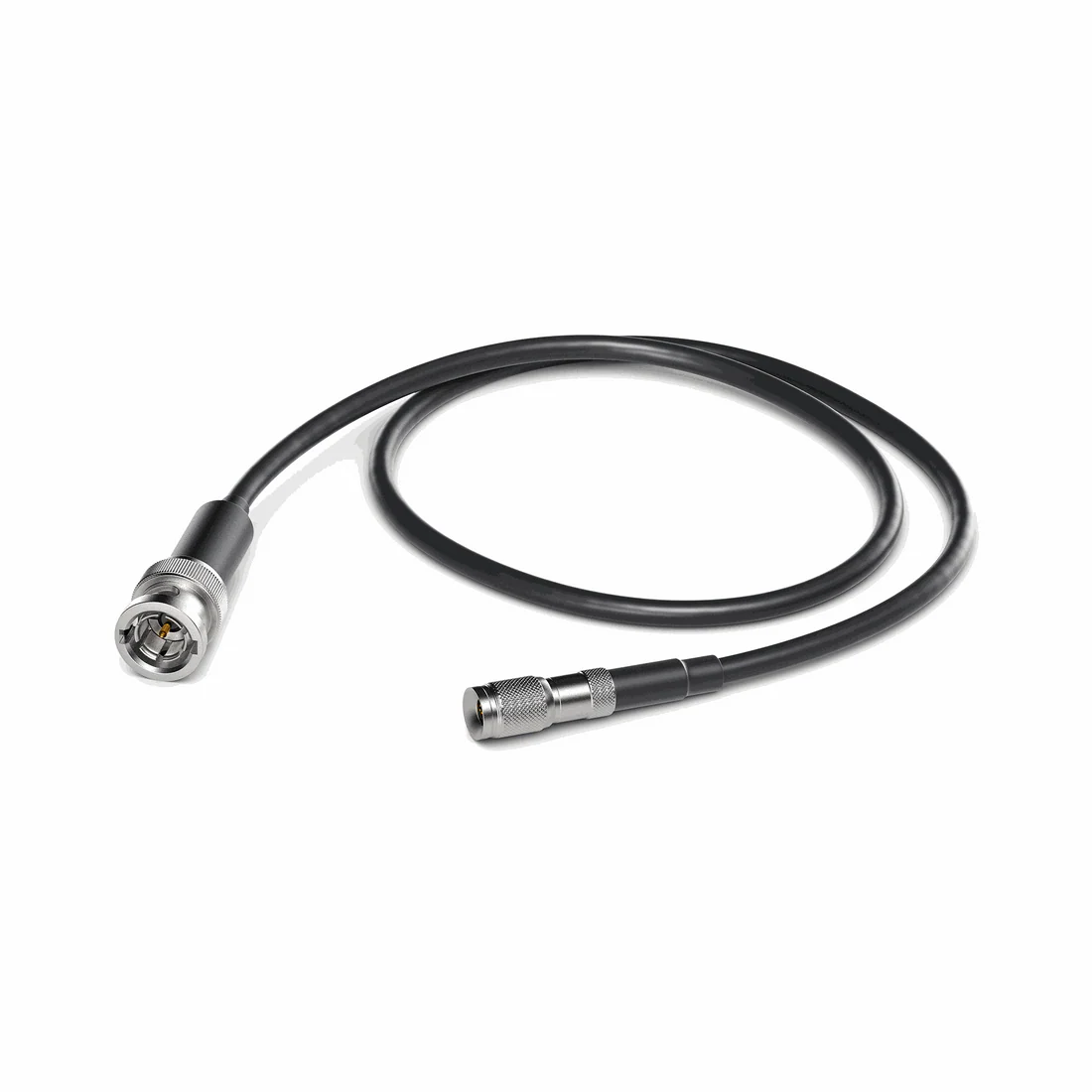

Blackmagic Design Cable - Din 1.0/2.3 to BNC Male
Blackmagic Design Cable - Din 1.0/2.3 to BNC Male is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Blackmagic Design Cable - Din 1.0/2.3 to BNC Male is a specialized, broadcast-grade adaptation jumper cable. It is engineered to bridge the gap between heavy, standard-sized studio video infrastructure and the ultra-compact, high-density I/O ports found on portable broadcast gear.
The cable features a standard BNC Male connector on one end and a miniature DIN 1.0/2.3 connector on the other. It is primarily used to transport high-bandwidth digital video signals (such as 3G-SDI or 6G-SDI) without introducing impedance mismatches that cause signal dropouts.
The Connectors Explained
-
DIN 1.0/2.3 End: This is a tiny, high-frequency connector featuring a push-pull latching mechanism. It allows manufacturers like Blackmagic to pack multiple SDI inputs and outputs into incredibly tight spaces where a standard BNC connector simply would not fit.
-
BNC Male End: This is the standard, bayonet-locking connector used universally across the broadcast industry for routers, production switchers, monitors, and cameras.
Primary Video Workflow Uses
This cable is an essential accessory for several specific Blackmagic Design products that rely on DIN connections to maintain a slim physical footprint:
1. Blackmagic Video Assist (Early Generations)
The original 5-inch Video Assist monitor/recorder utilizes DIN 1.0/2.3 ports for its HD-SDI input and output. To connect this monitor to a standard cinema camera or production switcher, this adapter cable is required to interface with traditional BNC lines.
2. DeckLink Quad & DeckLink Duo PCIe Capture Cards
To pack 4 or 8 independent channels of SDI capture onto a single PCIe desktop slot, Blackmagic uses high-density DIN 1.0/2.3 arrangements on the back of cards like the DeckLink Quad 2. This cable allows engineers to break those mini-ports out into standard BNC patch bays.
3. Micro Studio Camera 4K (Legacy Models)
Early generations of Blackmagic's miniaturized studio cameras relied on DIN connectors to keep the camera body as small as possible. These cables bridge the camera directly into standard studio umbilical lines.
Technical Specifications Matrix
| Feature | Specification |
| Connector A | DIN 1.0/2.3 Male (Push-Pull Quick Release) |
| Connector B | True 75 Ohm BNC Male (Bayonet Locking) |
| Impedance Rating | Strictly 75 Ohms (Prevents digital phase distortion/jitter) |
| Cable Length | Typically sold in compact 200 mm to 400 mm (approx. 8" to 15") patch lengths |
| Max Signal Validation | Validated for SD-SDI, HD-SDI, 3G-SDI, and 6G-SDI video streams |
| Coaxial Cable Stock | Flexible, thin-profile precision coax (typically Belden 1855A or equivalent) |
Critical Handling Warning: The Push-Pull Latching Mechanism
⚠️ Do Not Twist the DIN Connector: Unlike a standard BNC connector which requires a quarter-turn twist to unlock, a DIN 1.0/2.3 connector is a pure linear push-pull system.
To insert: Push the connector straight into the jack until you hear or feel a mechanical click. The outer sleeve automatically locks onto the port.
To remove: Grip the sliding outer metal sleeve of the DIN connector and pull it straight back away from the equipment. Pulling back on the sleeve releases the internal spring-loaded teeth. Never pull directly on the flexible rubber strain relief boot or the wire itself, as this will instantly snap the internal coax core away from the pin center.
