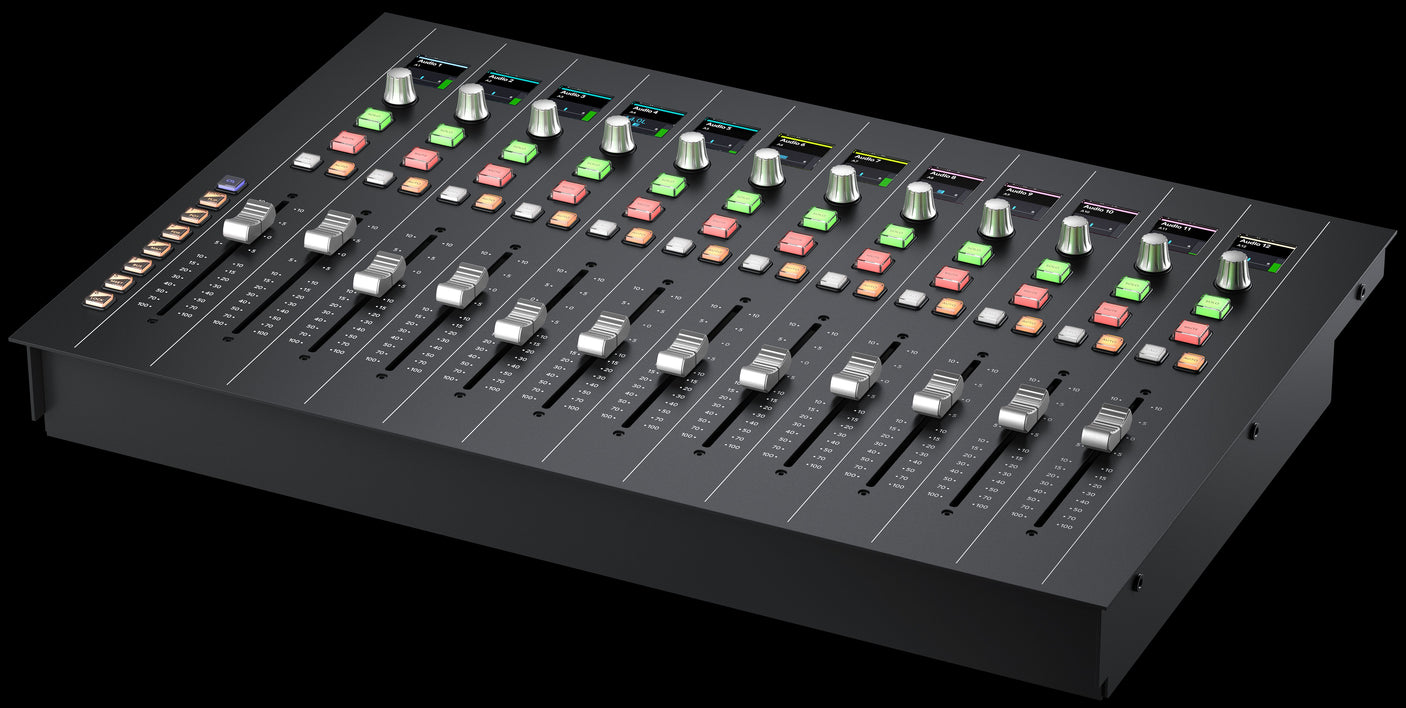

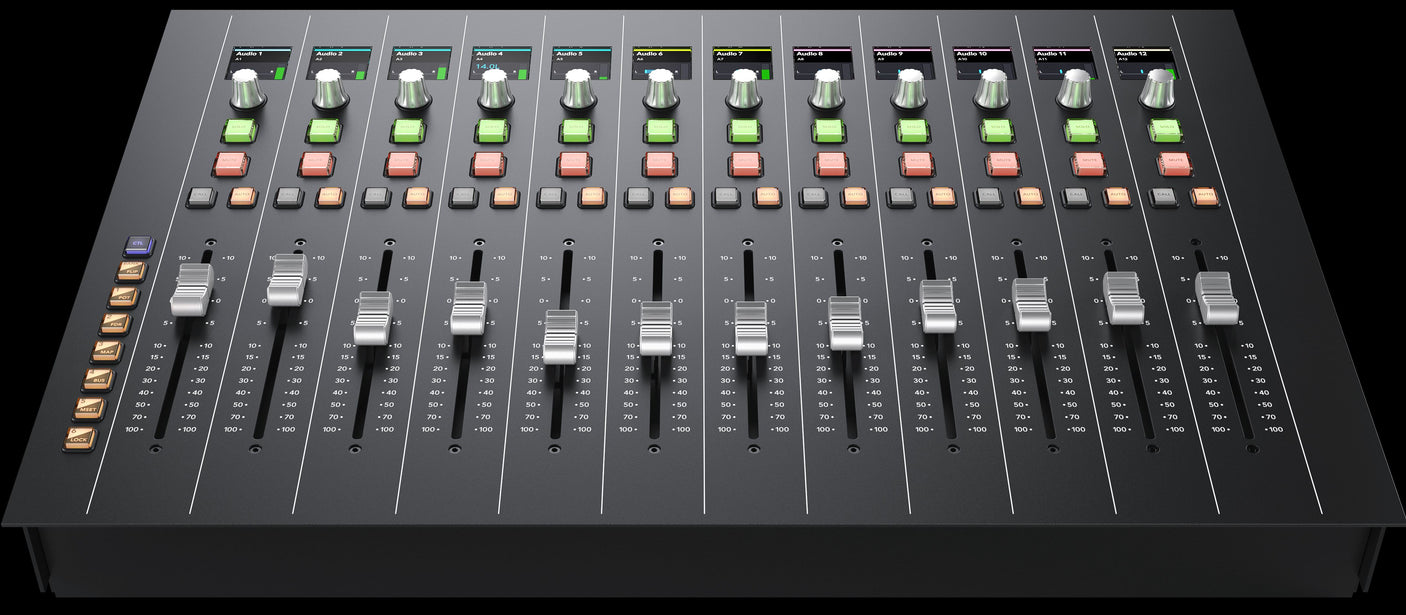

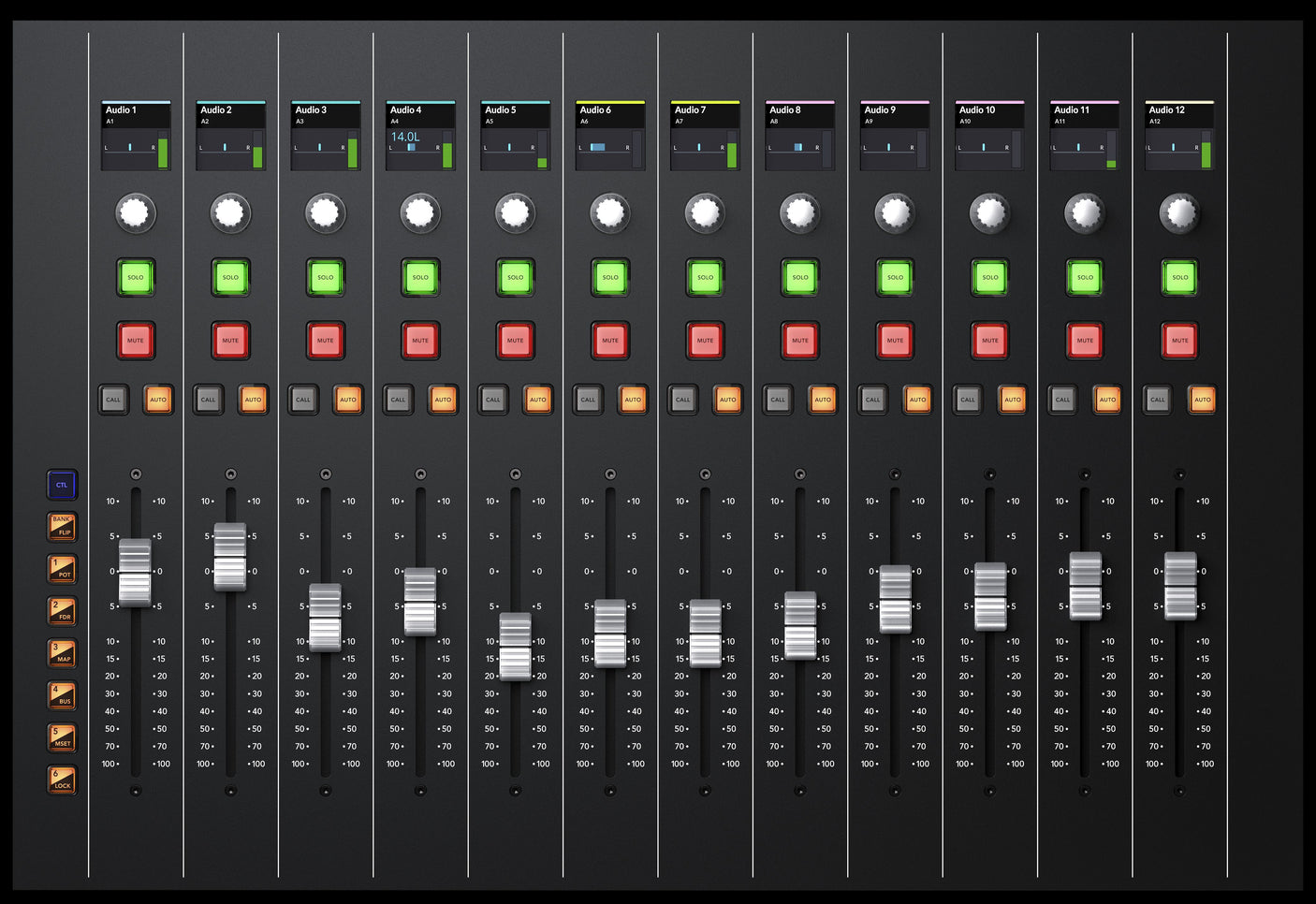

The Blackmagic Design Fairlight Console Channel Fader is a high-precision, motorized 100mm fader module designed for use in the Fairlight Desktop Console and the larger modular Fairlight Studio Consoles.
These are professional-grade, touch-sensitive components that allow for real-time automation and tactile mixing. Unlike standard faders, these use a high-speed belt-drive system and a dedicated controller to ensure smooth, silent movement during motorized automation playback.
Core Features
-
Touch Sensitivity: The fader cap is conductive. The moment you touch it, the console overrides automation and allows you to write new volume data.
-
Motorized Precision: High-torque motors allow the fader to snap to position instantly when switching between different tracks or mixing banks.
-
100mm Throw: Provides the industry-standard travel distance for granular volume adjustments.
-
High-Resolution Tracking: Uses optical or high-grade resistive tracking to ensure sub-millisecond accuracy between the physical fader position and the Fairlight software.
When to Replace the Fader
-
Fader "Chatter": The fader vibrates or makes a grinding noise when trying to hold a static position during automation.
-
Loss of Touch Sensitivity: You touch the fader, but the software doesn't recognize your input, causing the motor to fight against your finger.
-
Dead Spots: The fader moves smoothly for most of the track but "jumps" or loses connection at a specific physical point.
-
Sticky Movement: Physical resistance caused by dust, liquid ingress, or a worn internal belt.
Technical Installation Note
Repair Level: 3 (Moderate).
-
Module Access: In the Desktop Console, you must remove the base plate to access the fader mounting screws. In the modular Studio Console, the individual channel strip is lifted out from the top.
-
Cable Connection: The fader connects via a multi-pin ribbon cable. This cable carries both the motor power and the sensitive touch-data signal.
-
Dust Protection: Most Fairlight faders include a "dust felt" or "fader shield." When replacing the unit, ensure this felt is clean and aligned to prevent debris from falling into the new motor assembly.
-
Software Calibration: After replacement, you may need to run the Fairlight Utility to calibrate the "Top" and "Bottom" of the fader throw to ensure the physical position matches 0dB in the software.
Diagnostic: Hardware vs. Software
-
It is Hardware if: The fader feels physically gritty or refuses to move when the console is powered off.
-
It is Software/Automation if: The fader works perfectly in a new, empty project but behaves erratically in a complex mix with existing automation keyframes.
Pro-Tip: Maintenance
To extend the life of your faders, avoid using "fader lube" sprays unless they are specifically approved for motorized units. Traditional lubricants can gum up the high-speed drive belt or interfere with the touch-sensitivity circuit. Regular cleaning with a vacuum and a soft brush is usually sufficient.
Are you experiencing physical resistance when moving the fader, or is the automation failing to "catch" when you touch the cap?
