SKU: BLA-PSUPPLY-PC4K/30W

Blackmagic Design Power Supply Pocket Camera 4K 12V30W

R 885.50
Tax included Shipping calculated at checkout.

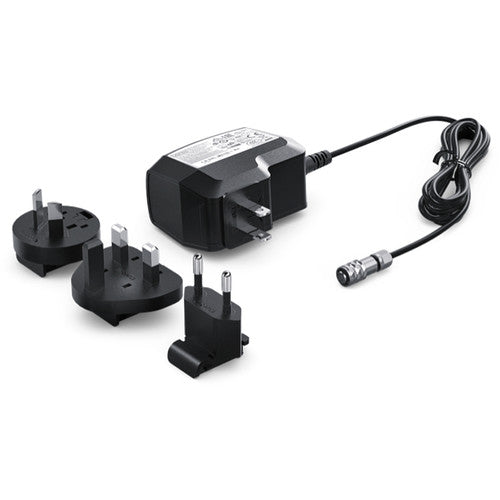

Blackmagic Design 12V 30W Power Supply

The Blackmagic Design 12V 30W Power Supply is the official AC adapter for the modern Pocket Cinema Camera lineup. It is designed to provide consistent, reliable power for long studio days or when you need to recharge your batteries without an external charger.



In 2026, it remains an essential piece of kit, especially as these cameras are frequently used for long-form streaming or as "always-on" studio cameras.

Core Functionality

  • Dual-Purpose Power: This unit does two things simultaneously: it powers the camera for unlimited shooting time and charges the internal battery (LP-E6 or NP-F570, depending on the camera) while the camera is switched off or in use.

  • 2-Pin Locking Connector: The cable features a professional Weipu-style 2-pin locking connector (often referred to as a "Fischer-style" by some retailers). This ensures the power cable cannot be accidentally pulled out during a critical take—a common issue with standard barrel jacks.



  • International Ready: Typically ships with a set of three to four interchangeable international plug adapters (US, UK, EU, and AU), making it a global travel-ready solution.

Compatibility

This specific 30W power supply is compatible with the following cameras:

  • Pocket Cinema Camera 4K

  • Pocket Cinema Camera 6K (Original EF)

  • Pocket Cinema Camera 6K G2



  • Pocket Cinema Camera 6K Pro



  • Blackmagic Cinema Camera 6K (Full Frame)

⚠️ Warning: This power supply is not compatible with the original (2013) HD Pocket Cinema Camera, nor is it compatible with the ATEM Mini switchers, which require a different 12V barrel-style connector.



Technical Specifications

Feature Details
Output Voltage 12V DC
Maximum Wattage 30W
Input Voltage 100 - 240V AC (50/60Hz)
Connector 2-Pin Locking (Weipu SF6 series)
Cable Length Approx. 70 inches (1.8 meters)

Operational Insight (2026)

In 2026, many filmmakers use this power supply in conjunction with a UPS (Uninterruptible Power Supply) for high-stakes live streaming. Because the camera has an internal battery, the 12V power supply acts as the primary source; if your building loses power, the camera will instantly and seamlessly switch to its internal battery without interrupting the recording or the stream.

  • Heat Management: If you are charging a battery while the camera is running in a hot environment, the camera body may get quite warm. This is normal, but for maximum longevity, it is often best to charge batteries while the camera is not actively recording.

Pro Tip: If the locking collar on the 2-pin connector feels "stiff," do not force it. Ensure the red dot on the cable connector aligns with the notch on the camera's power port. It should slide in and "click" effortlessly.
