SKU: BLA-BDLKWEB/D/SED4K

Blackmagic Design Streaming Encoder 4K

R 15,100.65
Tax included Shipping calculated at checkout.

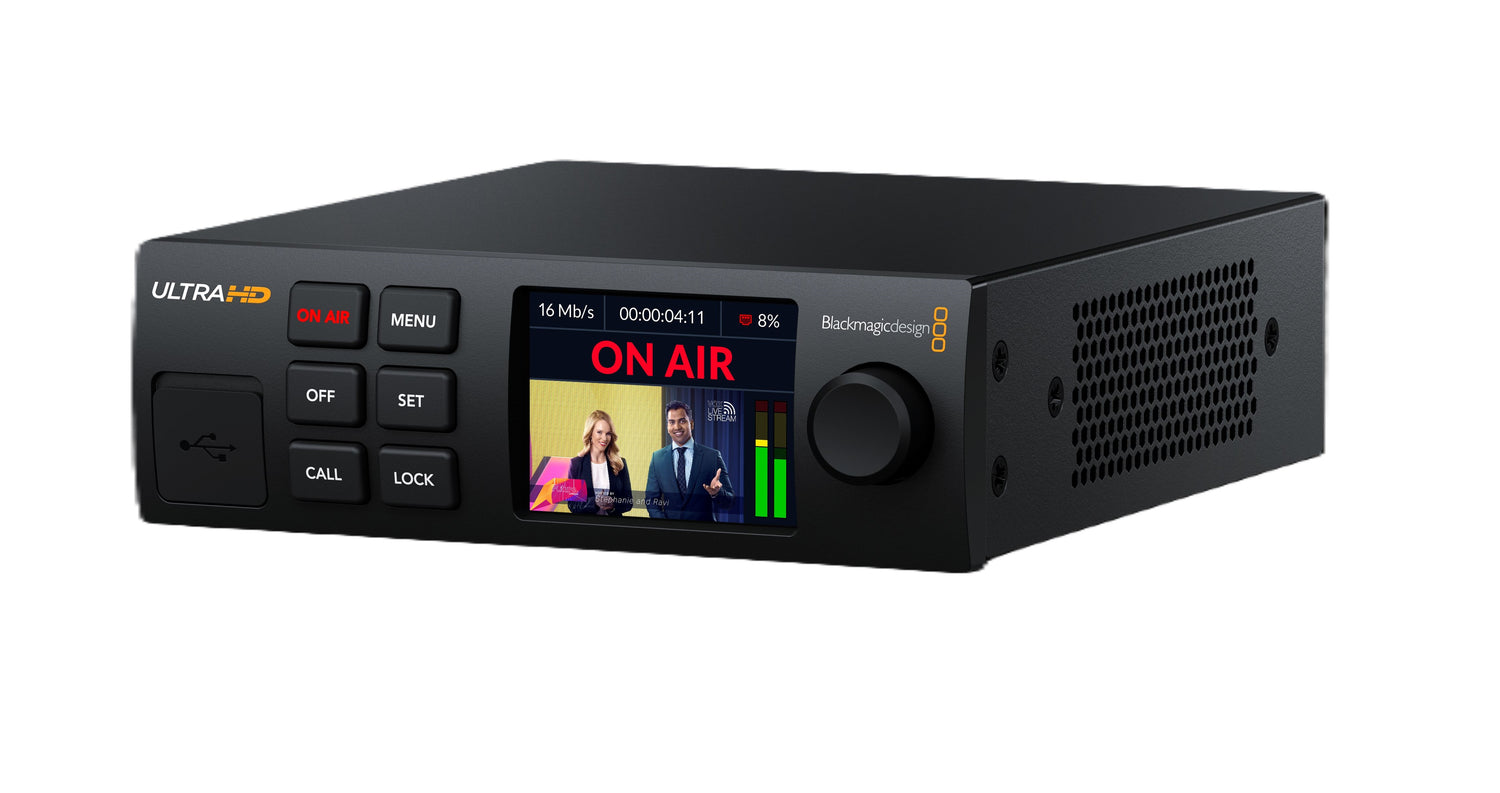

Blackmagic Design Streaming Encoder 4K

The Blackmagic Design Streaming Encoder 4K is a professional-grade hardware processor designed to convert a high-quality video source into H.264 or H.265 streams for live broadcast. It takes a 12G-SDI signal and encodes it for direct transmission to platforms like YouTube and Twitch, or for point-to-point links using the SRT protocol.

Core Encoding Features

The device handles the heavy lifting of video compression, moving the workload away from a computer to a dedicated, stable hardware engine.

  • H.264 and H.265 (HEVC): Supports H.264 for maximum compatibility and H.265 for efficient Ultra HD streaming at lower bitrates.

  • 4K Ultra HD Support: Handles all video standards up to 2160p60. It includes a built-in downconverter to stream in 1080p even when the input is 4K.

  • SRT and RTMP Protocols: Supports RTMP for social media platforms and SRT (Secure Reliable Transport) for high-quality, low-latency private links.

Redundant Connectivity

Designed for mission-critical broadcasts where internet stability is a concern.

  • Ethernet: Primary high-speed connection for fixed studio environments.

  • USB-C Mobile Tethering: Features a front-panel USB-C port for connecting 5G or 4G mobile phones. The encoder can use mobile data as a backup or primary internet source.

  • Technical Monitoring: The SDI and HDMI monitor outputs display real-time bitrates, cache levels, and video standards to ensure the stream is healthy.

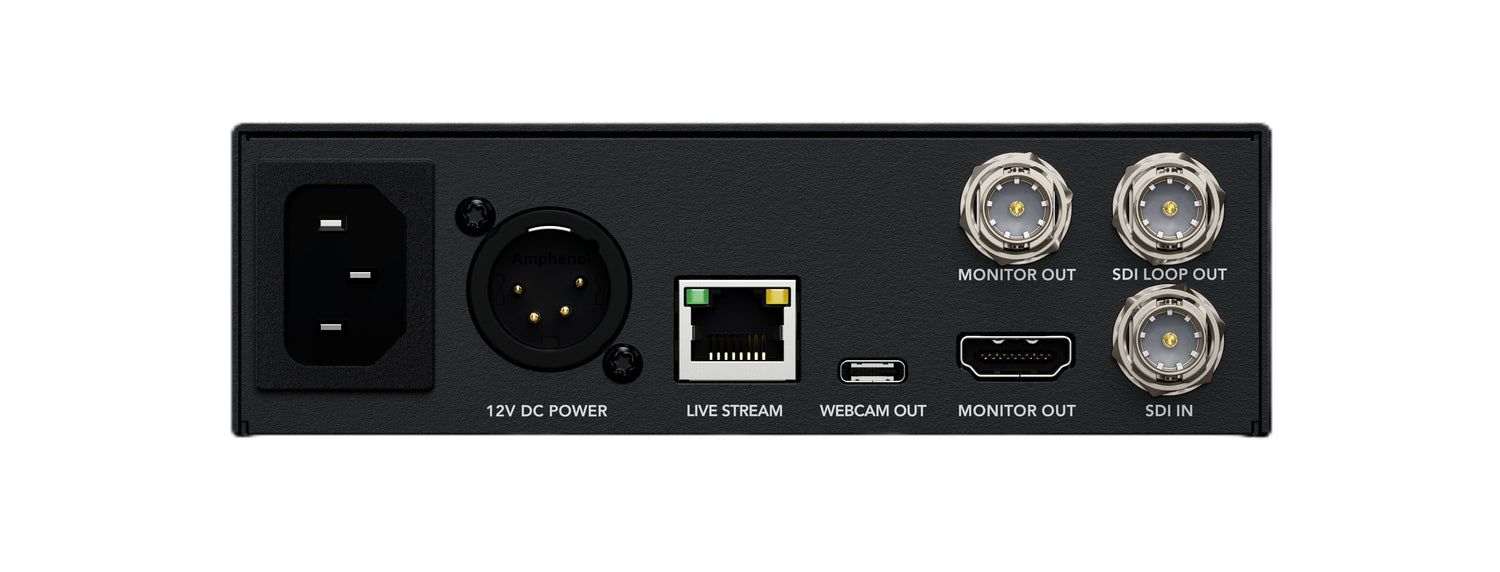

Hardware Design and I/O

The encoder is housed in a compact 1/3 rack unit chassis, making it ideal for mobile fly-packs or crowded racks.

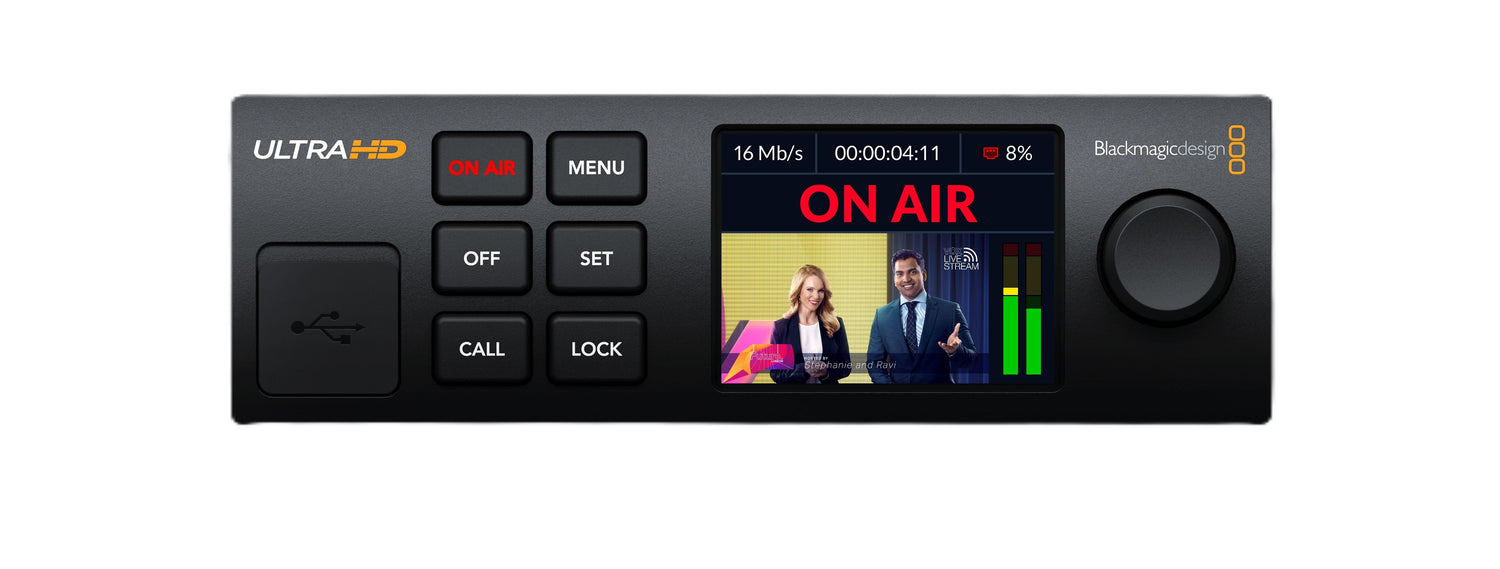

  • Built-in LCD: The 2.2-inch color screen provides a confidence monitor of the video feed and audio meters.

  • USB-C Webcam Port: Allows the encoder to be recognized by a computer as a standard HD webcam, compatible with Zoom, Teams, and OBS.

  • Dual Power: Features an internal AC power supply and a 12V DC input for battery-powered operation in the field.

Operational Insight

The Streaming Encoder 4K is a significant upgrade for workflows requiring Ultra HD delivery. By utilizing H.265, users can maintain 4K quality over standard internet connections that would normally struggle with the high bitrates required by H.264. It is essentially the professional alternative to software encoders, providing a "plug-and-play" solution that avoids the risk of computer crashes during live events.
