SKU: HOL-PYRO-5-S-KIT

Hollyland Pyro 5 Wireless Video Transmission and Monitoring Kit (5.5-Inch)

R 23,455.40
Tax included Shipping calculated at checkout.


The Hollyland Pyro 5 Wireless Video Transmission and Monitoring Kit is an all-in-one on-set monitoring ecosystem designed for independent filmmakers, production crews, and focus pullers. Built around a 5.5-inch high-brightness touchscreen, the Pyro 5 functions as a wireless video transceiver monitor, meaning a single unit can toggle between functioning as a transmitter (TX) or a receiver (RX) at the push of a button.

By integrating a daylight-viewable monitor directly into Hollyland’s dual-band Pyro transmission engine, it eliminates the need for messy HDMI/SDI jumper cables, external mounting cages, and bulky receiver brackets on your monitoring rig.


1. Dual-Band RF Performance & Massive Range

The core processing layer of the Pyro 5 is driven by Hollyland's Auto Dual-Band Hopping (ADH) technology:

  • Simultaneous 2.4 GHz & 5 GHz Bands: Unlike traditional single-band wireless transmitters that experience severe signal dropouts in congested environments, the Pyro 5 transmits across both frequency bands at the same time.

  • Auto Frequency Hopping (AFH): The internal software constantly scans local RF congestion, automatically shifting the signal to the clearest available channel without interrupting the live video feed.

  • 400-Meter Transmission Window: It delivers a stable, line-of-sight wireless range of up to 400 meters with an ultra-low latency of just 60 ms.

2. Daylight-Viewable Monitor & Image Analysis

The visual display is built specifically to handle harsh outdoor conditions without requiring a bulky sun hood:

  • 1500-Nit High-Brightness Screen: The 5.5-inch 1920x1080 touchscreen outputs a massive 1500 nits of brightness, allowing director or client monitors to remain fully visible in direct midday sunlight.

  • Pro Monitoring Toolkit: Features an onboard suite of software-driven image evaluation utilities managed through a swipeable touchscreen UI, including Waveform, False Color, Focus Assist, Zebra Warning Patterns, and 3D LUT importing via SD card.

3. Dual-Protocol Connection Modes & Multi-Cam Switching

The Pyro 5 adapts cleanly to different structural needs on set using specialized transmission profiles:

  • Broadcast Mode Enabled: Connects a single transmitter to up to 4 discrete receivers simultaneously (including other Pyro 5 or Pyro 7 monitors, as well as standalone Pyro S/H receiver boxes), ensuring the entire camera department sees the exact same feed.

  • Broadcast Mode Disabled (Unicast): Limits the connection to 2 dedicated receivers while opening up wireless pipelines to transmit video feeds to 2 mobile devices (smartphones or iPads) running the HollyView app.

  • Quick Camera Group Switching: Includes customizable hardware shortcut keys on the chassis, allowing a director or client to switch instantly between different camera feeds or multicam groups in under a second.

4. Camera Control, Proxy Recording, & Live Streaming

The Pyro 5 transitions beyond a standard monitor into an active data and operational hub:

  • Direct Camera Control: Connecting a control cable from the monitor to compatible camera bodies allows operators to manipulate core camera settings—such as ISO, aperture, shutter speed, white balance, and focus modes—directly from the touchscreen interface.

  • Timecode-Synced Proxy Recording: Features an integrated SD card slot that records synchronized H.264 proxy files directly to the monitor. The recorded proxy video includes matching camera timecode metadata, simplifying your offload and editing pipeline.

  • Standalone RTMP Live Streaming: Features built-in hardware streaming encoding. By connecting the unit to the internet via its USB-C port, users can live-stream footage directly to platforms like Zoom, YouTube Live, or Twitch without an external capture card or laptop.


Technical Summary

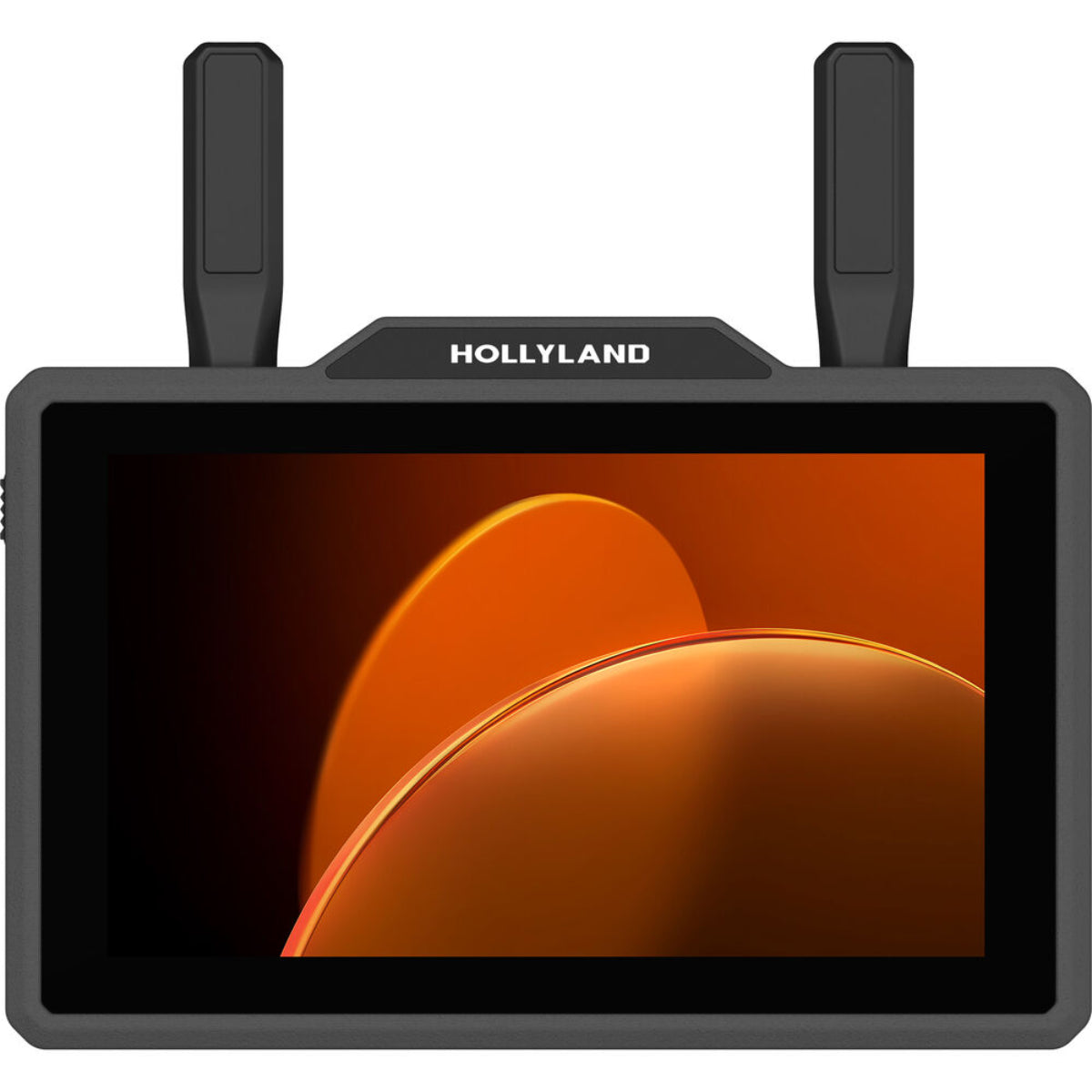

  • Chassis Profile: Combined 5.5-inch LCD touchscreen wireless video transceiver monitor.

  • Optical Engine: 1920x1080 native resolution, 16:9 aspect ratio, 1000:1 contrast ratio, 1500 nits brightness.

  • Operational Boundary: Up to 400 meters line-of-sight range; minimal 60 ms transmission delay.

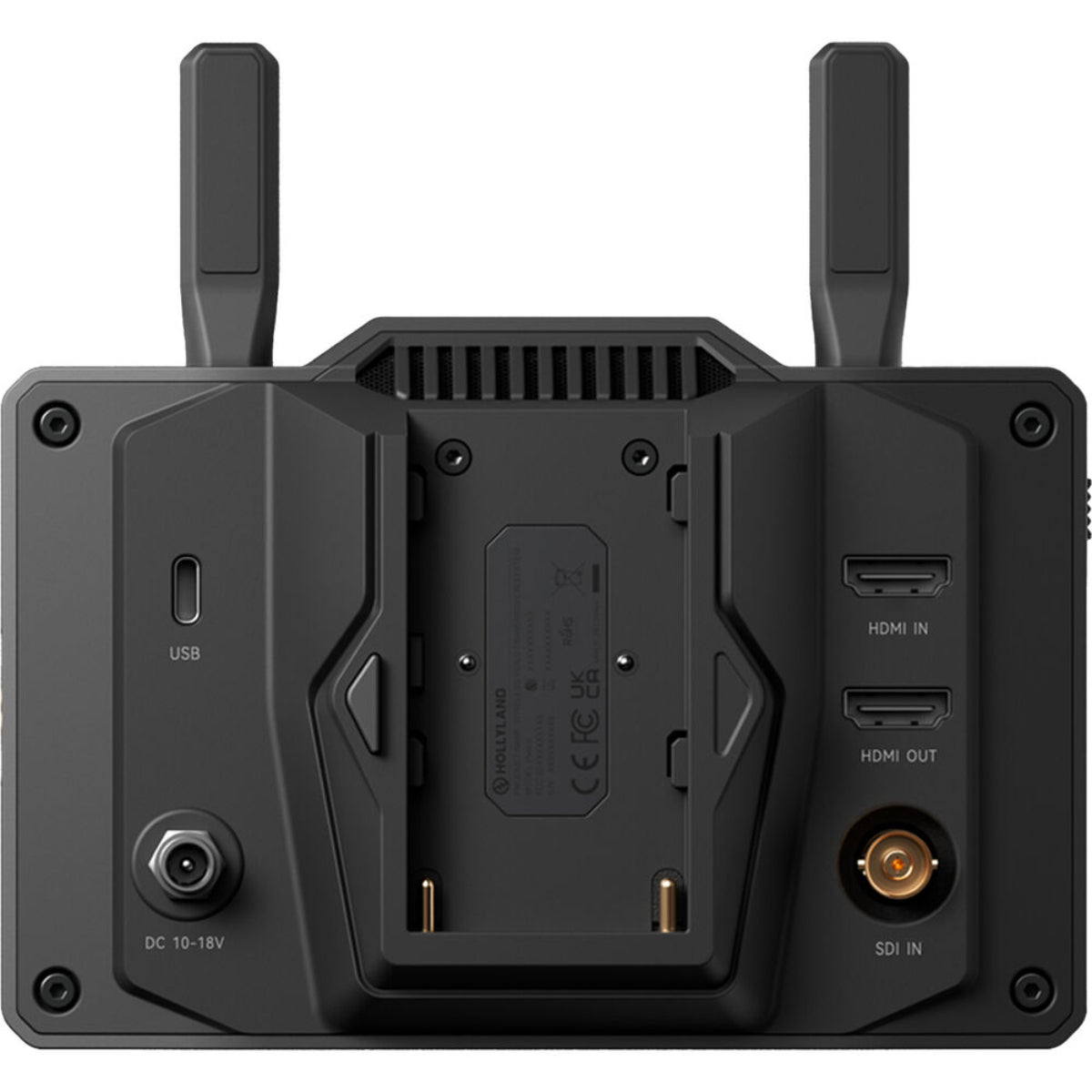

  • Physical Connections: 1x HDMI 1.4b Input, 1x 3G-SDI Input, 1x HDMI 1.4b Loop-Out, 1x 3G-SDI Loop-Out, 1x 3.5 mm Headphone Out, 1x USB-C (for OTG streaming/control), 1x SD Card Slot (Proxy recording and LUT imports), 2x RP-SMA Antenna ports.

  • Supported Video Formats: Up to 1080p at 60/50/30/24 fps across HDMI and SDI.

  • Power Framework: Dual options via integrated Sony L-Series (NP-F) battery plate or wide 10V to 18V direct DC input.

  • System Weight: ~410 grams.

The Hollyland Pyro 5 is an exceptionally versatile tool that dramatically cleans up the footprint of modern video villages. By pairing a daylight-viewable 1500-nit screen with a dual-band wireless transceiver engine, direct camera control, and proxy recording capabilities, it serves as a highly efficient production hub for fast-moving independent and commercial sets.
