SKU: HOL-PYRO-7-S-KIT

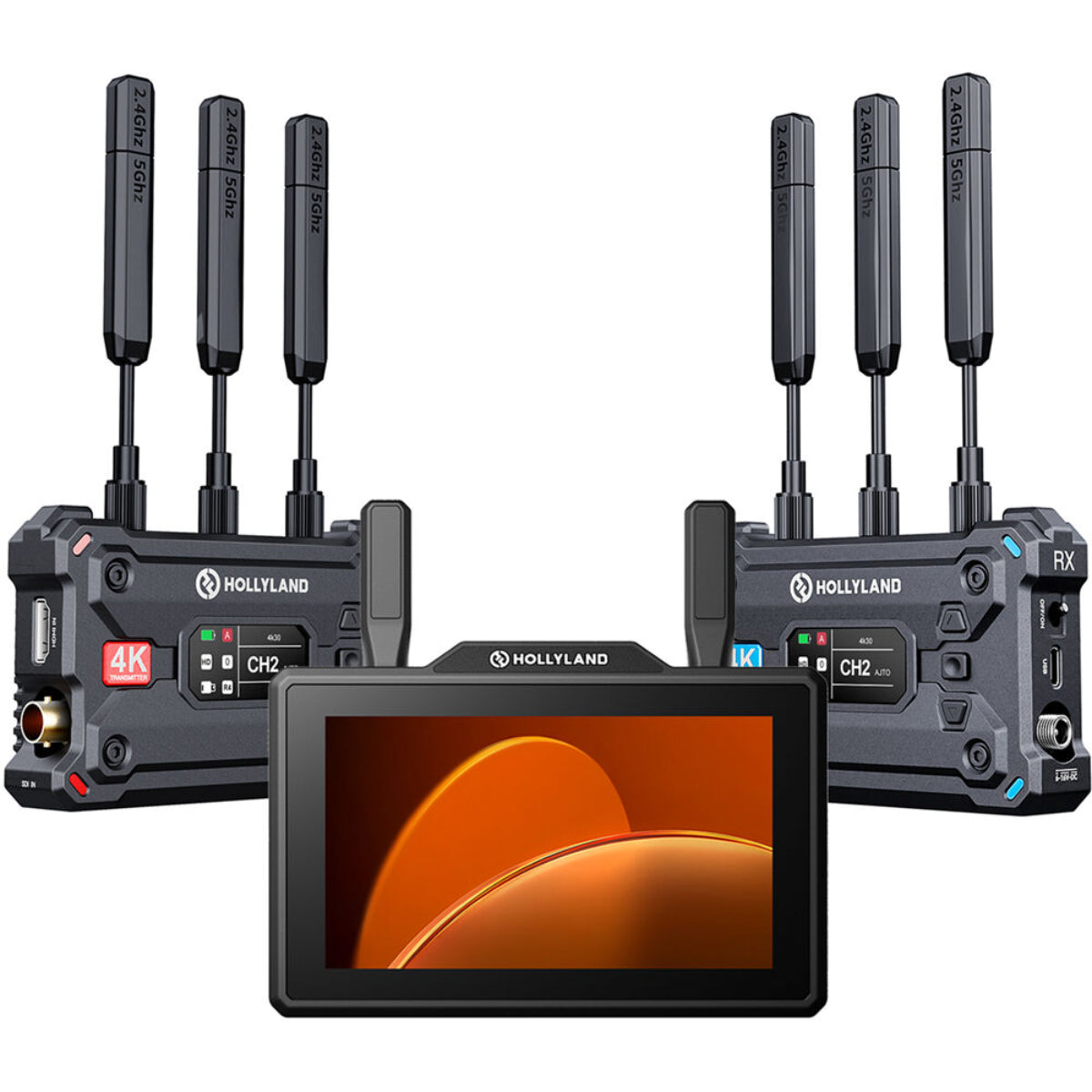

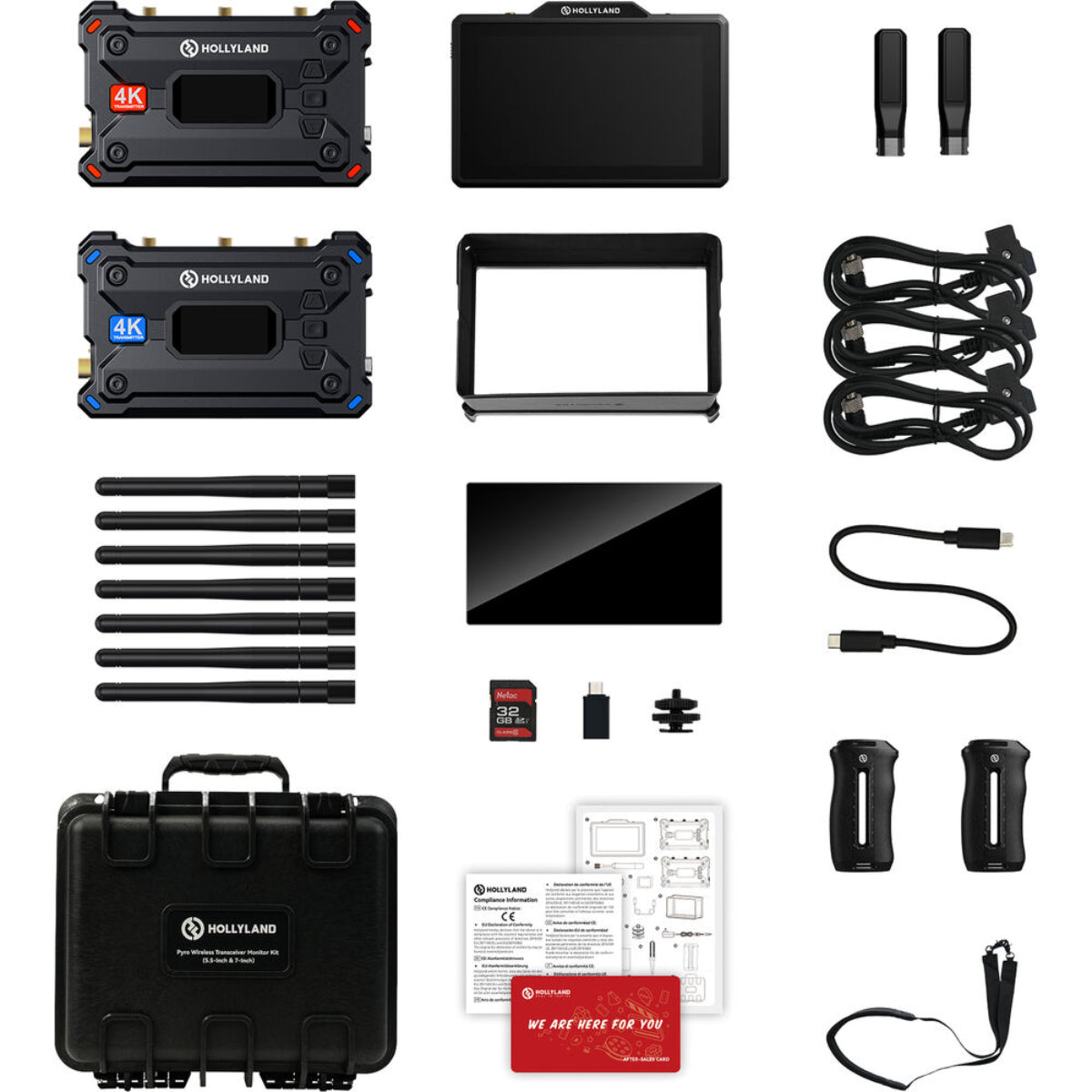

Hollyland Pyro 7 Wireless Video Transmission and Monitoring Kit (7-Inch)

R 28,994.95
Tax included Shipping calculated at checkout.

The Hollyland Pyro 7 Wireless Video Transmission and Monitoring Kit (7-Inch) is a professional, all-in-one transceiver ecosystem designed to fundamentally simplify monitoring workflows on commercial sets, indie film productions, and live event broadcasts.

Traditionally, setting up wireless monitoring required rigging a messy nest of cables, mounting brackets, a separate video transmitter or receiver, a standalone field monitor, and a battery plate onto your camera package or director’s rig. The Pyro 7 completely eliminates this hardware bottleneck by embedding a high-performance 2.4 GHz / 5 GHz dual-band wireless transceiver directly inside an impact-resistant, 1200-nit high-brightness 7-inch touchscreen field monitor.



Core RF, Optical & Engineering Features

  • All-in-One Transceiver Flex Integration: Each Pyro 7 unit can be dynamically toggled via the touchscreen interface to function as either a Transmitter (TX) or a Receiver (RX). This enables rapid configuration changes on set without swapping physical hardware—if your monitoring needs change, simply flip a menu toggle to repurpose the device.

  • Auto-Dual-Band (2.4 GHz + 5 GHz) Pyro-Wave Tech: Utilizing Hollyland’s proprietary Pyro-Wave transmission protocol, the system transmits across both 2.4 GHz and 5 GHz frequency bands simultaneously. If the local environment experiences a sudden spike in 5 GHz Wi-Fi interference, the system dynamically switches or offsets packets to the 2.4 GHz band in real time, guaranteeing an ultra-stable link with an imperceptible 0.06s (60ms) latency.

  • Daylight-Viewable 1200-Nit Touchscreen: Featuring a high-density, 1920 times 1200 resolution IPS LCD display with a massive 1200 nits of peak brightness. This allows directors, DPs, and focus pullers to confidently evaluate critical focus, exposure, and color fidelity outdoors under direct afternoon sunlight without requiring a bulky sun hood.

  • Long-Range Multi-Receiver Broadcasting: Delivers a reliable line-of-sight transmission range of up to 1,300 feet (400 meters) in Broadcast Mode. A single Pyro 7 transmitter can simultaneously broadcast a high-definition video and audio feed to up to four independent Pyro receivers or monitoring nodes across the stage.

  • Professional Dual SDI + HDMI Connectivity: Built for high-end production environments, the chassis features independent HDMI input and loop out ports along with 3G-SDI input and output interfaces. It supports cross-signal conversion, allowing an HDMI input feed on the transmitter to be outputted as an SDI signal on the receiving monitor.

System Interoperability

The Pyro 7 is engineered to integrate natively with Hollyland’s expanded Pyro wireless ecosystem, allowing crews to mix and match hardware form factors based on their rigging constraints:

  • Standalone Transmitters/Receivers: Links seamlessly with the Pyro H (HDMI-only) and Pyro S (SDI & HDMI) standalone wireless boxes.

  • Hybrid Rig Configurations: A camera team can mount a compact Pyro S transmitter directly onto an operational cinema package, and stream the feed directly across the set into a Pyro 7 monitor configured as an RX station for the director's handheld cage.

Technical Specifications Matrix

Feature Specification
Display Characteristics 7-Inch Touchscreen IPS LCD / 1920×1200 Pixels / 323 PPI
Peak Panel Brightness 1200 cd/m² (Nits)
Video I/O Interfaces 1× HDMI Input, 1× HDMI Loop Output, 1× 3G-SDI Input, 1× 3G-SDI Output
Wireless Operating Frequencies 2.412 GHz–2.484 GHz / 5.150 GHz–5.850 GHz Dual-Band Dynamic
Maximum Transmission Range 1,300 Feet (400m) Line-of-Sight Range (LOS)
Maximum Signal Latency Approx. 0.06 Seconds (60 Milliseconds)
Onboard Power Infrastructure Dual NP-F (L-Series) Battery Slots / Locking 10–18V DC Barrel Input
External Media Capture Storage Dedicated SD Card Slot (Supports custom 3D LUT importing & MP4 Recording)

Custom Monitoring Tools (HollyOS)

The device runs an optimized internal operating system tailored specifically for precision image evaluation:

  • Custom 3D LUT Importing: Upload camera log conversion profiles (S-Log3, V-Log, C-Log) directly via an SD card to accurately preview final color grades on set.

  • Advanced Exposure & Focus Assessment: Instantly deploy professional monitoring overlays including Waveform, Vectorscope, Histogram, False Color, Zebra Markers, and customizable Focus Peaking thresholds.

  • On-Monitor MP4 Clip Recording: Operators can record up to 40 minutes of continuous live video feeds directly onto an external SD card. This feature is perfect for instant playback evaluation, scratching rough cuts, or immediate script supervisor reference without bothering the camera department.

On-Set Wireless Rigging Best Practice: When rigging the Pyro 7 to function as your main camera-top transmitter, make use of the unit's Dual NP-F battery plate. The circuit logic inside the Pyro 7 supports hot-swapping—meaning when one battery runs low, you can safely remove and replace it while the monitor continues running off the secondary slot. This prevents having to power down the camera's video system between takes, keeping video village permanently live during fast-paced production schedules.
