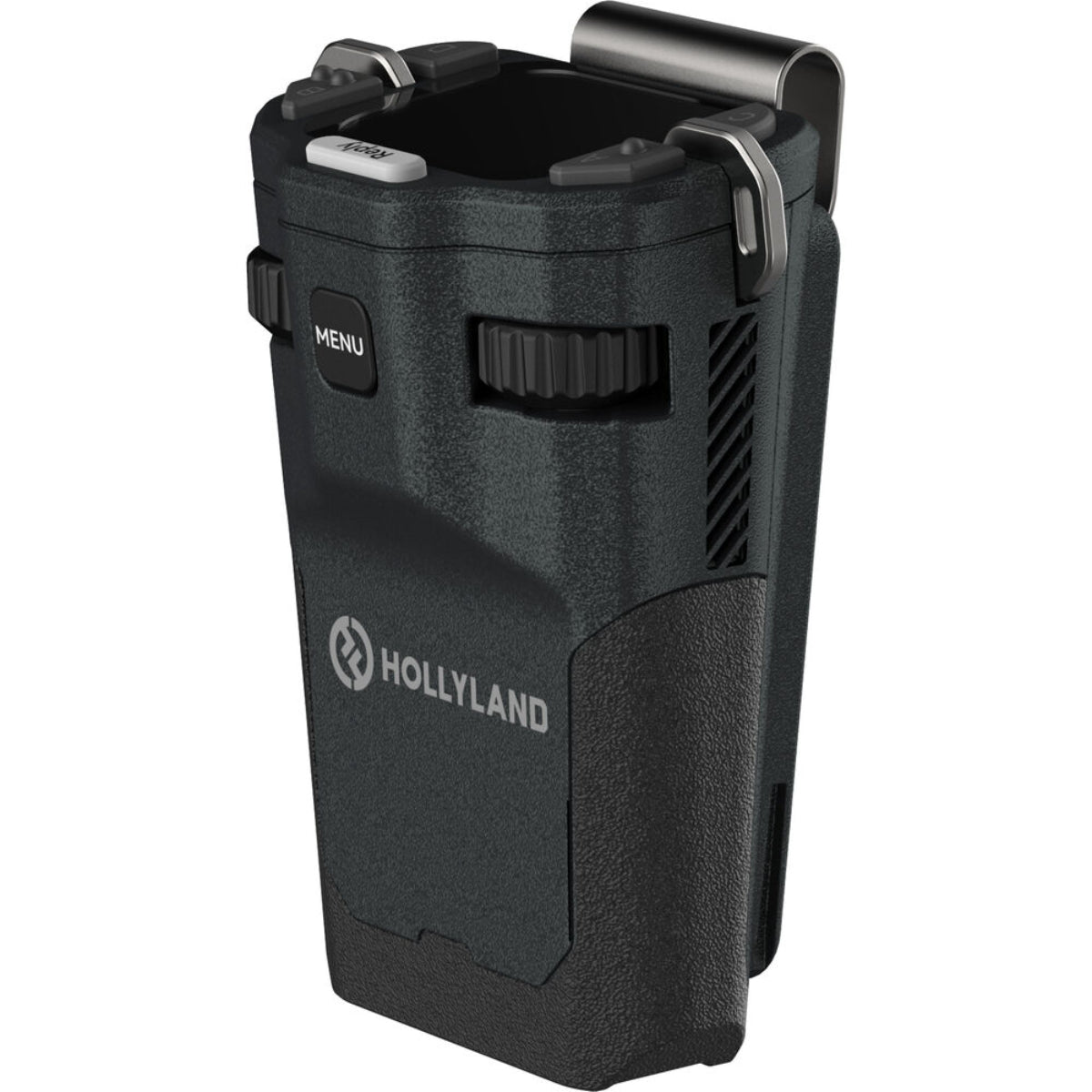

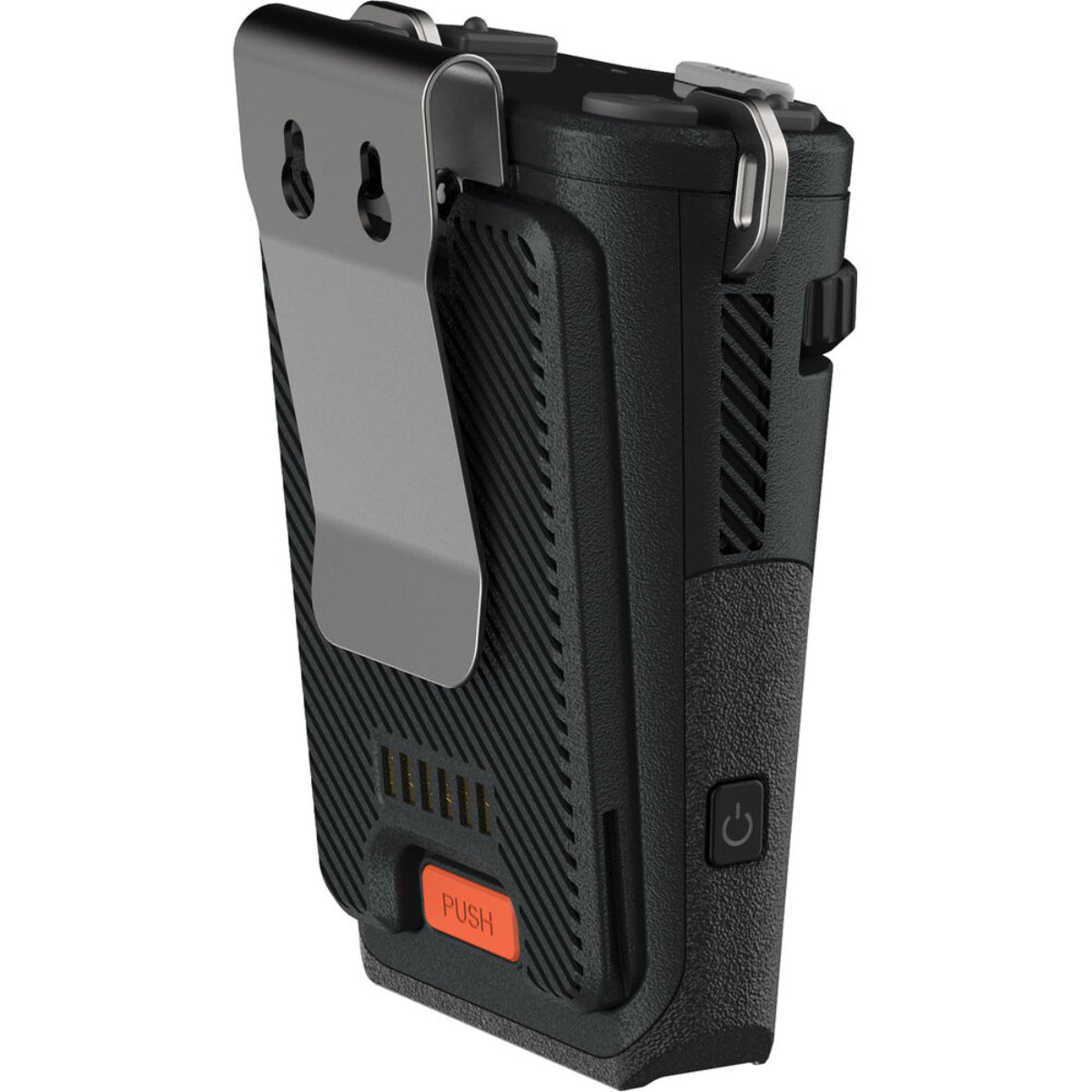

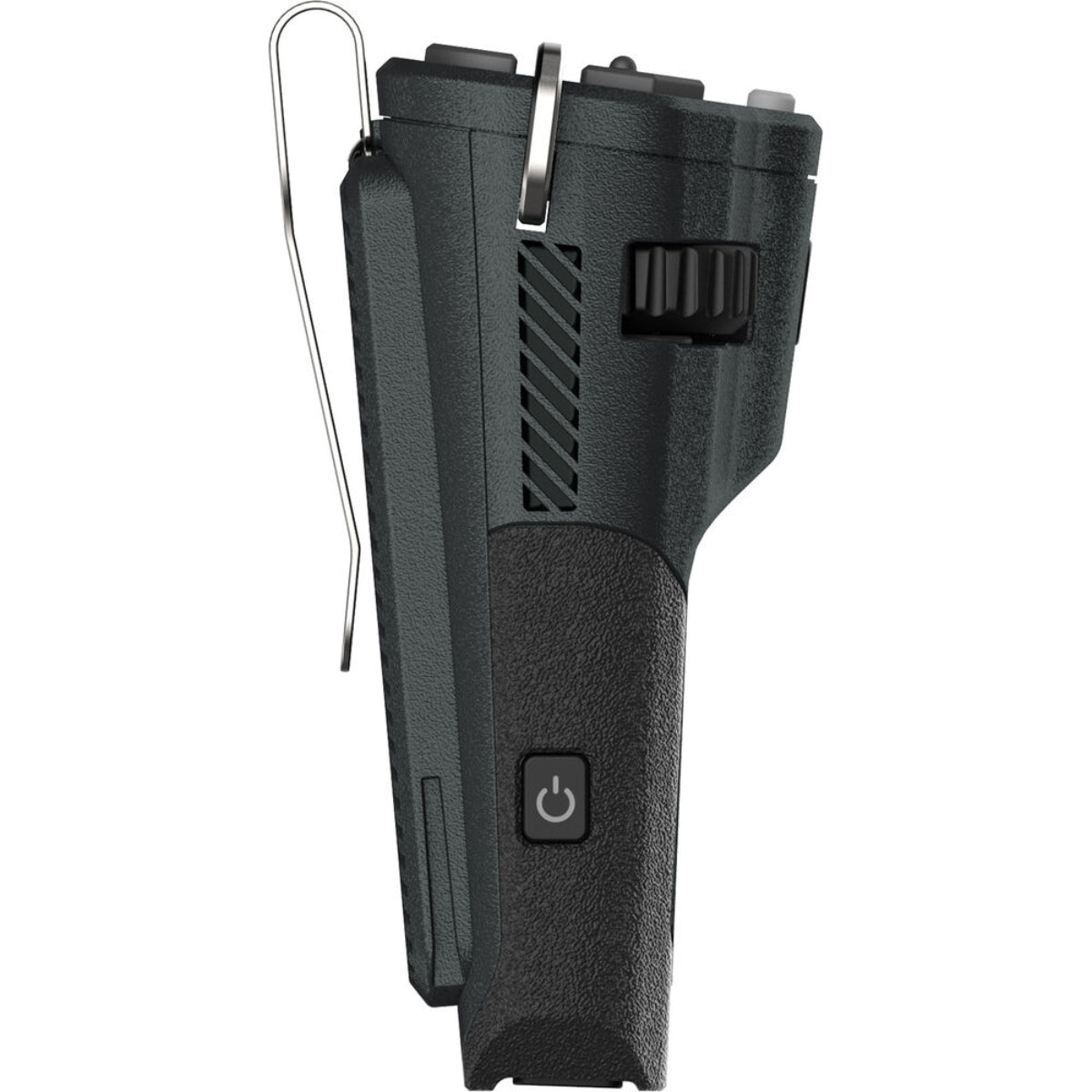

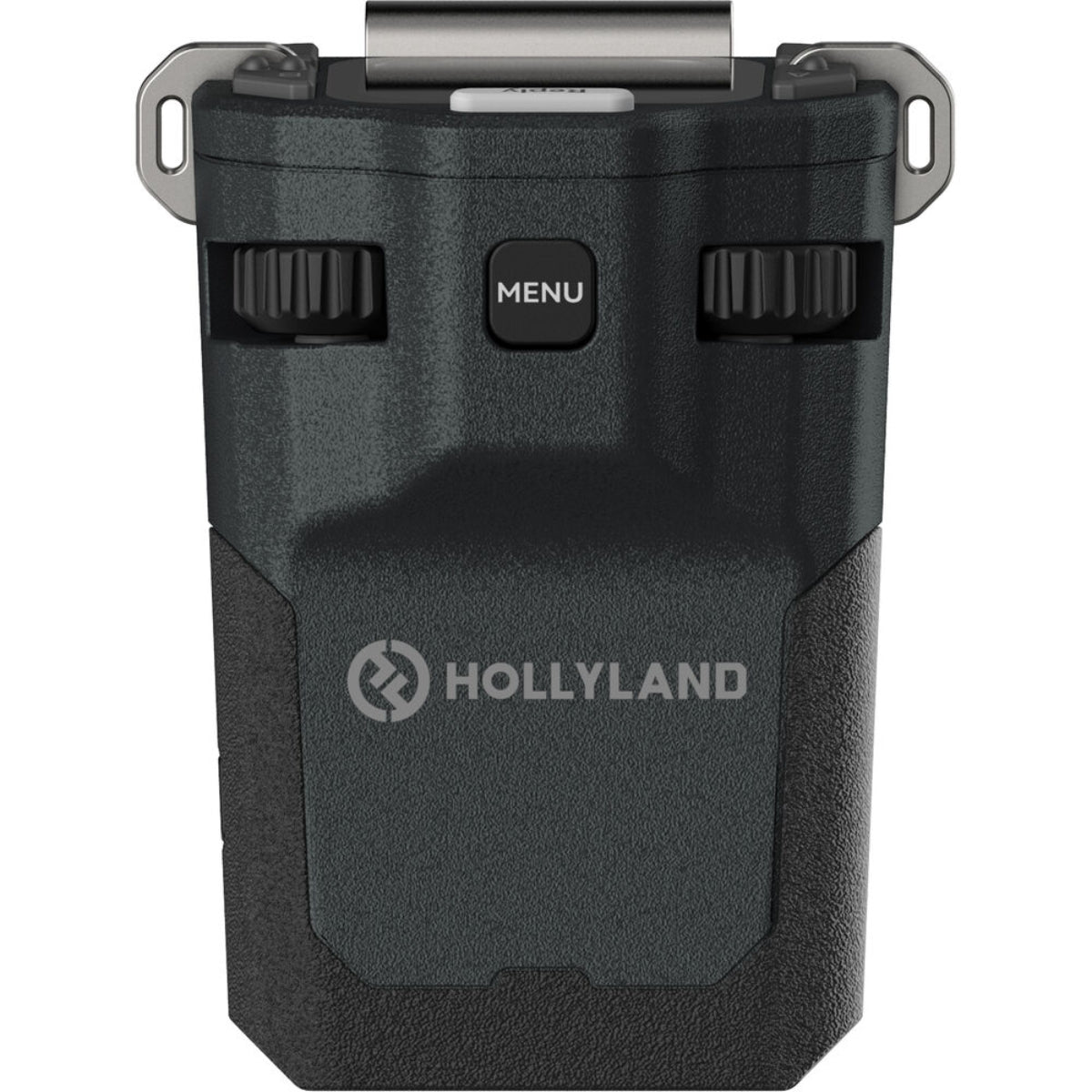

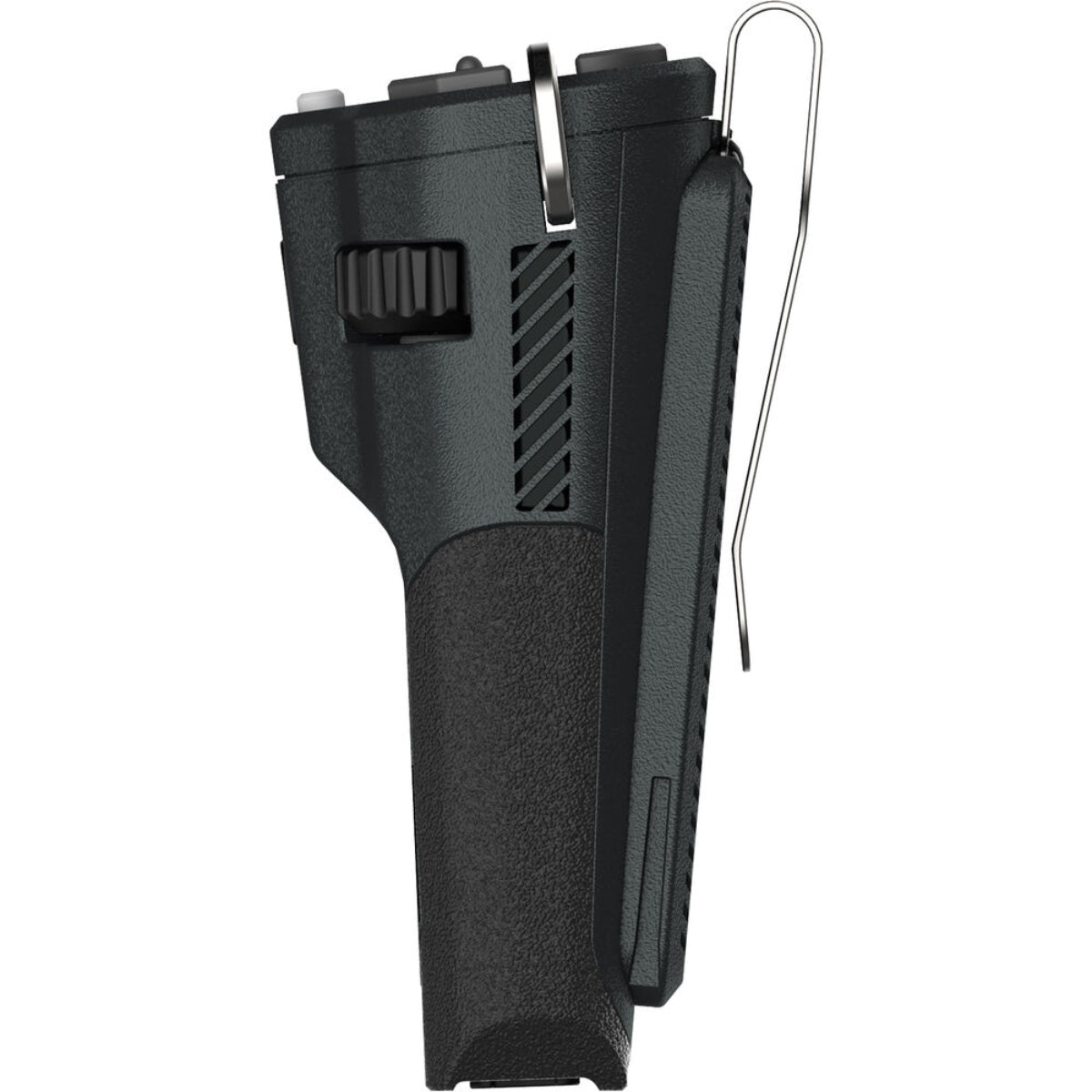

Hollyland Solidcom H1 BPK01 Beltpack
Hollyland Solidcom H1 BPK01 Beltpack is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Hollyland Solidcom H1 BPK01 Wireless Intercom Beltpack is the central user node for Hollyland’s flagship, enterprise-grade Solidcom H1 communications system. Operating on the secure 1.9 GHz DECT professional frequency band, this full-duplex beltpack offers deep, hardware-accelerated routing logic, long-run battery endurance, and broad deployment flexibility.
Engineered for sprawling broadcast sites, live concert touring, and mega-church productions, the BPK01 operates license-free. It can handle mid-sized productions using independent antennas alone or scale up to complex, multi-department team hierarchies when integrated with a master station.
1. Advanced Multi-Channel Routing & Tactile Controls
Unlike basic intercom beltpacks that limit users to a single "party-line" channel, the BPK01 features a specialized interface designed for complex multi-department coordination:
-

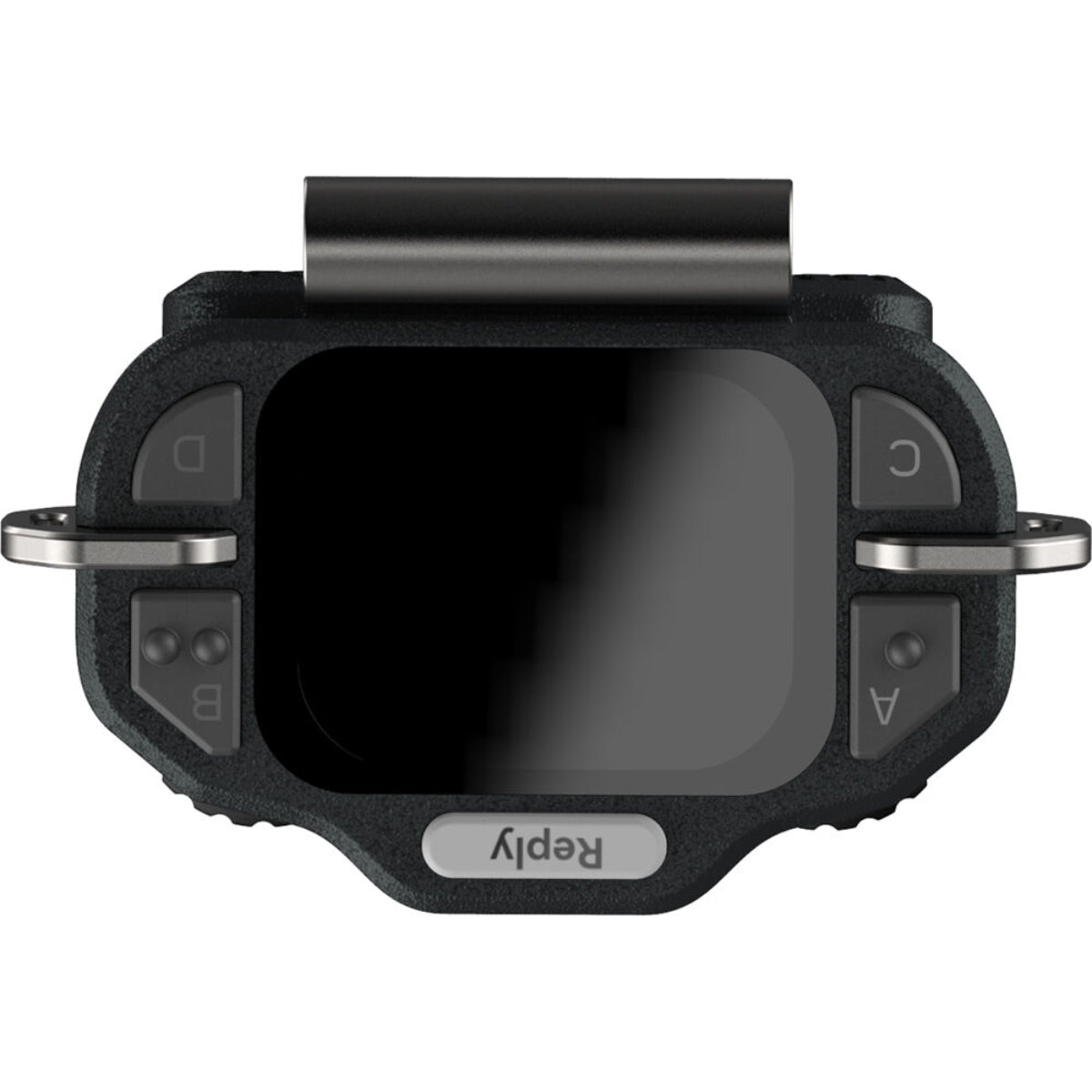

Custom Four-Button Interface: The front face houses four dedicated call buttons alongside a central reply toggle. Each button can be individually mapped as a talk key, call alert, or a stacked group assignment.
-
16-Channel Audio Mapping: When integrated with the system's master station, an operator can stack up to four actions per button. This allows a single team member to smoothly toggle, monitor, and participate across up to 16 separate audio channels simultaneously.
-
Role-Based Provisioning: Production managers can use batch-configuration tools to push instant, one-click updates to the beltpack fleet, assigning specific role presets (e.g., Director, Vision Mixer, Audio, or Gaffer) to modify communication access on the fly.
2. Hybrid Wireless Platform with Native Bluetooth
The BPK01 utilizes a unique hybrid wireless layout that frees crews from being physically tethered to their beltpacks by a cable:
-
Integrated Bluetooth Module: Features built-in Bluetooth connectivity. This allows camera operators, crane technicians, or stage managers to bypass traditional wired headsets entirely and pair the beltpack directly with mainstream True Wireless Stereo (TWS) earbuds or wireless over-ear headsets from consumer brands like Apple, Sony, Bose, or Shokz.
-
Massive Range & Seamless Roaming: When linked to independent ANT01 antennas, the beltpack maintains crystal-clear communication over a 500-meter line-of-sight radius. Advanced roaming algorithms allow users to walk across massive multi-zone venues, transitioning automatically between different antennas without signal degradation or packet drops.
-

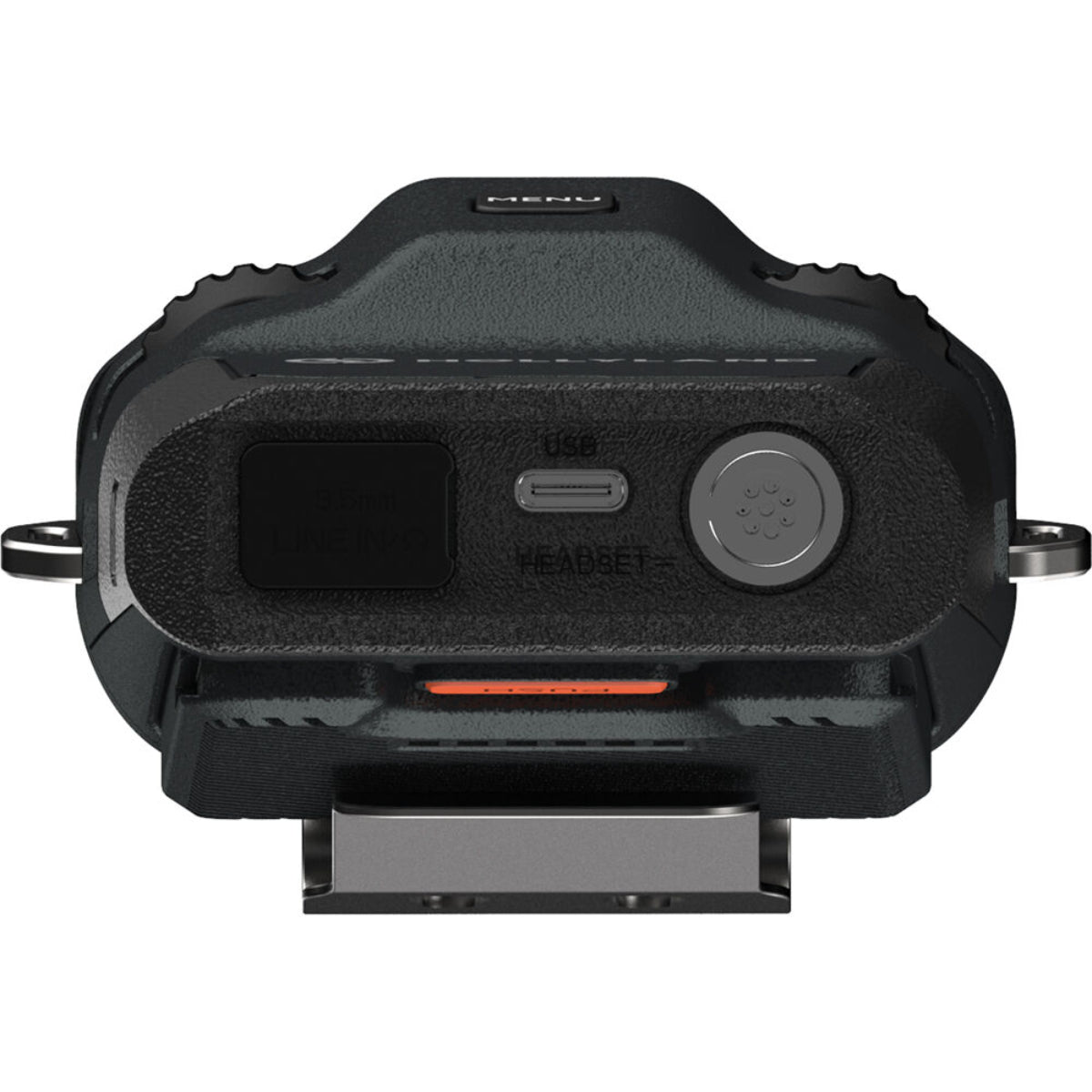

Flexible Wired Connectivity: For traditional setups, the chassis includes a ruggedized LEMO professional audio interface. Out of the box, Hollyland ships the pack with a 10-pin to 4-pin XLR adapter jumper cable to preserve compatibility with standard heavy-duty wired headsets.
3. All-Day Production Power Lifecycle
Event production days are notoriously unpredictable and often run over schedule, which is why the BPK01 power architecture is optimized for extreme endurance:
-

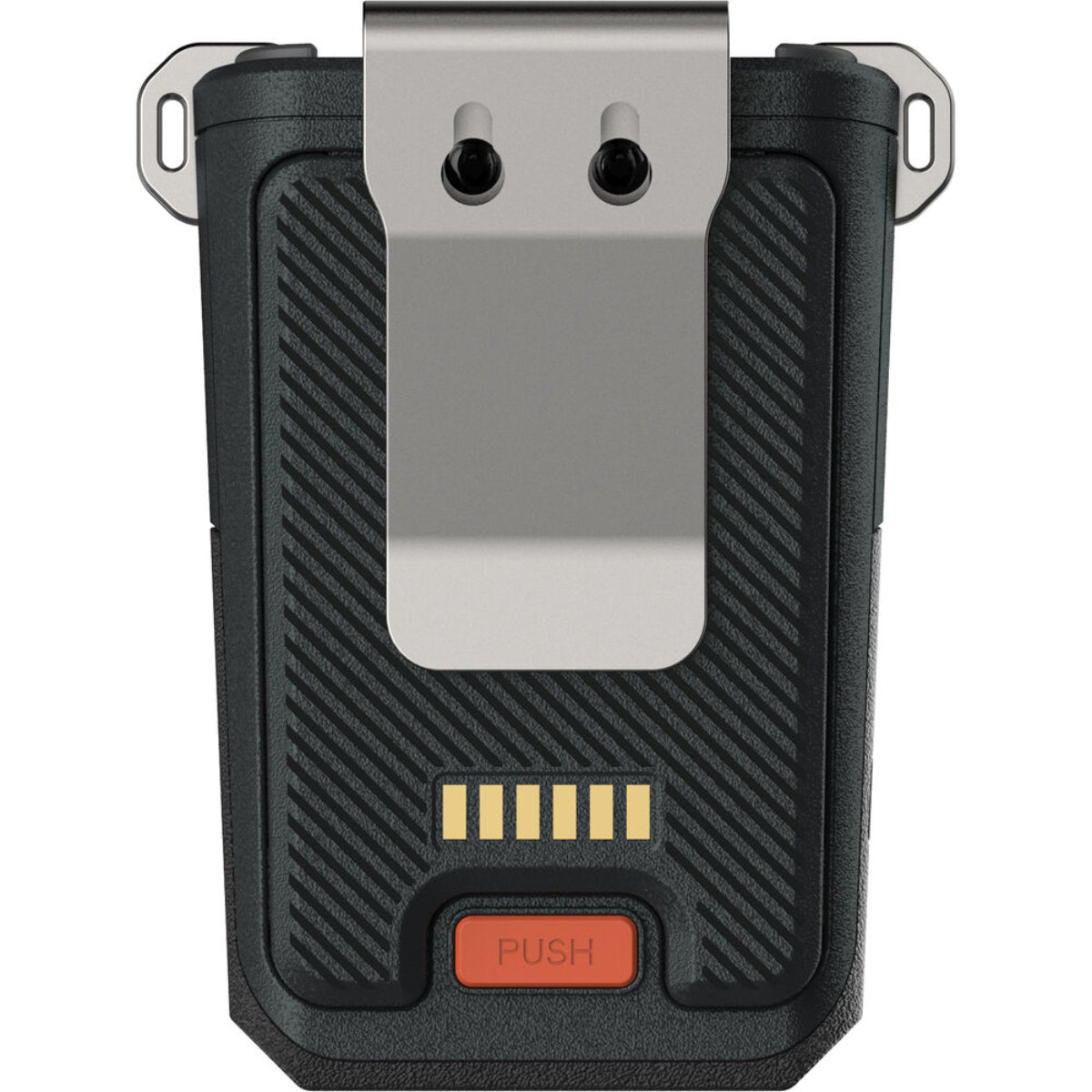

15+ Hours of Continuous Operation: Powered by a removable, high-capacity lithium-ion battery cell, each pack delivers an impressive operating window of over 15 hours on a single charge, minimizing the risk of a communications failure during a live broadcast.
-
Rapid Charging Dock Syncing: The beltpack is designed for drop-in charging via a 10-slot multi-base station. Placing the pack vertically into the cascaded dock replenishes the cell rapidly and triggers automatic system pairing and firmware synchronization within 3 seconds.
4. IP65 Weather-Sealed Field Resilience
Live event gear must endure harsh outdoor conditions. The BPK01 chassis is purpose-built to withstand severe physical demands:
-
IP65 Dust and Water Protection: The housing is highly sealed against environmental factors, preventing dust, dirt, and heavy moisture sprays from infiltrating the internal electronics. This gives crews complete confidence when working in open-air stadiums, dusty festival grounds, or sudden heavy downpours.
-
Acoustic Engineering Layer: Even when exposed to harsh wind or stage noise, its internal processor maintains a strict 20 dB Environmental Noise Cancellation (ENC) barrier across the vocal track, pushing high-intelligibility audio (200Hz to 6.5 kHz) through the monitoring feed with less than 1% distortion.
Technical Summary
-
Wireless Platform: Digital 1.9 GHz DECT (Frequency range: 1920 to 1930 MHz) / GFSK Modulation.
-
Auxiliary Wireless Link: Bluetooth 5.2 (Frequency range: 2402 to 2480 MHz) for wireless monitoring.
-
Ecosystem Capacities: Scales from 20 to 30 beltpacks (antenna-only setups) up to 80 active beltpacks and 100 independent groups when anchored by a Geo Central Station.
-
Maximum Operational Threshold: Up to 500 meters line-of-sight range per antenna cell.
-
Acoustic Processing Passband: 200 Hz to 6.5 kHz frequency response; 67 dB SNR; Max input tolerance of 120 dB SPL.
-
Environmental Ingress Shielding: IP65 Certified Dust & Water Resistant.
-
Operating Temperature Window: 10*c to 45*c.
-

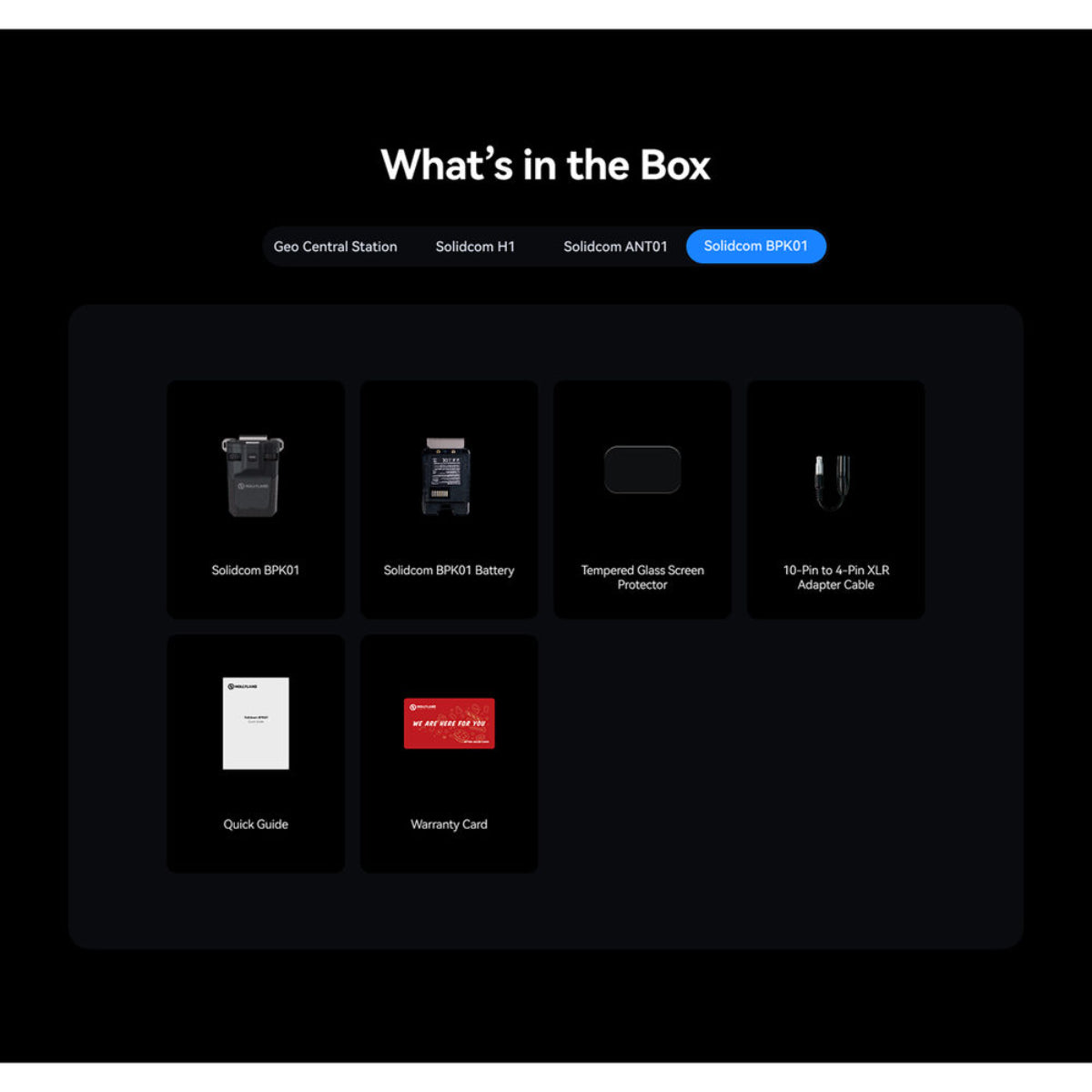

Box Contents: 1x Solidcom BPK01 Beltpack, 1x High-Capacity Rechargeable Battery, 1x Tempered Glass Screen Protector, 1x 10-Pin to 4-Pin XLR Adapter Jumper Cable, 1x Quick Start Guide.
The Hollyland Solidcom H1 BPK01 Beltpack offers an efficient, highly scalable workflow for high-end live events. By combining an IP65 weather-sealed design, a 15-hour runtime, multi-channel button mapping, and native Bluetooth support, it delivers dependable, clear communication for large broadcast and live production crews.
