SKU: HOL-SOLH1-GEO-CS

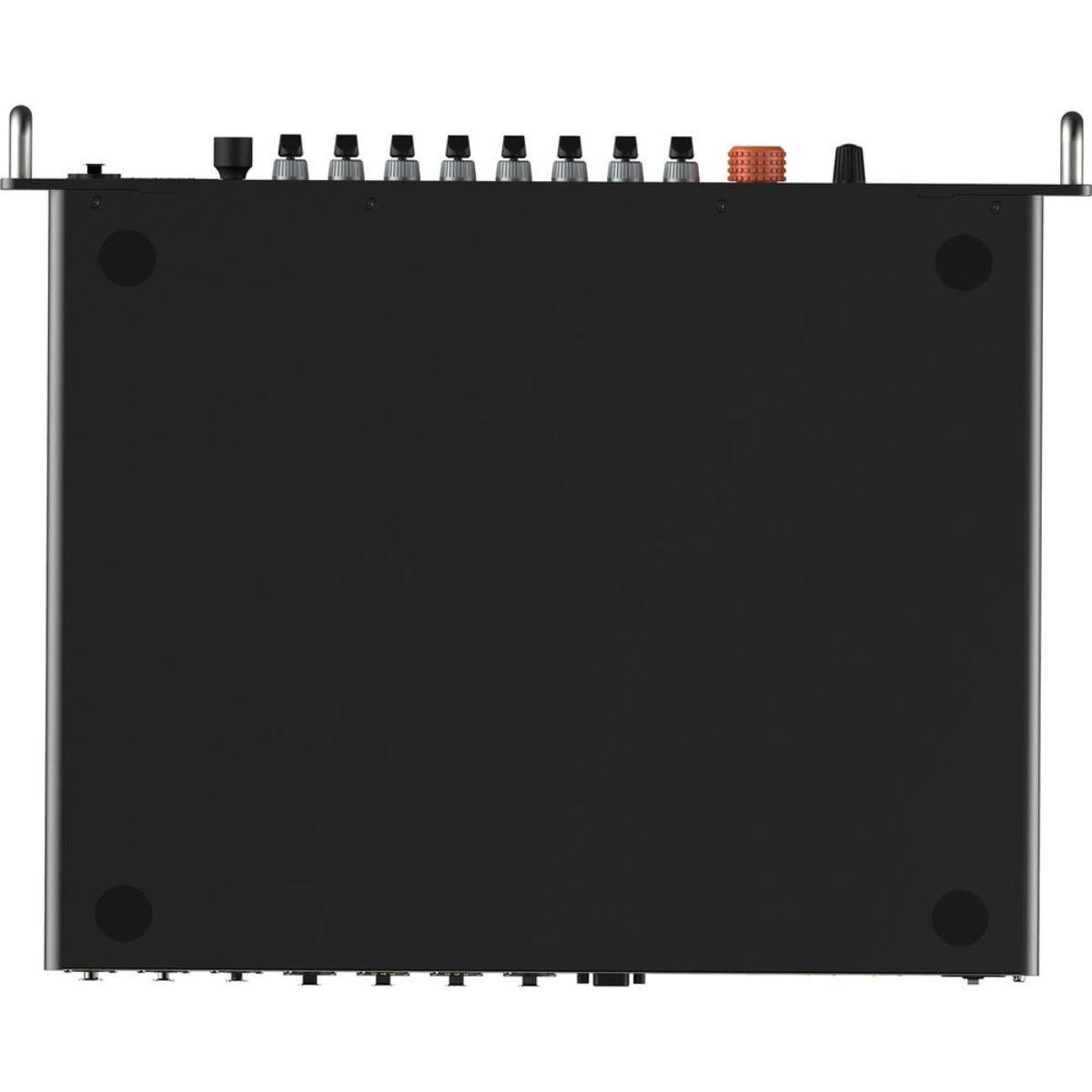

Hollyland Solidcom H1 Geo Central Station

R 242,995.00
Tax included Shipping calculated at checkout.


The Hollyland Solidcom H1 Geo Central Station is an enterprise-grade, large-scale wireless intercom hub designed to serve as the structural backbone for massive live broadcast, festival, and sports venue productions. Taking direct aim at high-tier, established matrix comms, the Geo Central Station acts as a master routing engine that massively expands the capabilities of the license-free Solidcom H1 ecosystem.

While individual H1 antennas can run a streamlined standalone network, integrating the Geo Central Station unlocks high-density user capacities, deep matrix grouping, and seamless IP/Dante infrastructure integration without requiring expensive per-user licensing fees.


1. High-Density Scalability & Multi-Zone Roaming

The primary function of the Geo Central Station is to scale out team communications across sprawling, complex physical sites:

  • 80-Beltpack Ecosystem Capacity: In standalone mode, a local cluster of Solidcom ANT01 antennas maxes out at 30 beltpacks. Dropping the Geo Central Station into your rack expands the system to support up to 80 wireless beltpacks simultaneously.

  • 8-Antenna Plug-and-Play Cascading: The hub allows technical directors to cascade up to 8 independent ANT01 antennas via standard Ethernet cables using an Auto-Cascade protocol that requires zero manual IP mapping.

  • Massive Coverage Footprint: With each antenna delivering a 500-meter line-of-sight radius, an 8-antenna layout managed by the Central Station can blanket a multi-zone area spanning over 4 million square meters (roughly equivalent to 560 football fields) with seamless, zero-dropout roaming.

2. Deep Audio Routing & Matrix Grouping

Managing complex multi-department coordination requires sophisticated logic partitioning, which the Central Station handles natively via hardware-accelerated processing:

  • 100 Independent Groups: The station supports the creation and storage of up to 100 separate communication groups (e.g., lighting, audio, stage management, security, and executives) to isolate conversations and eliminate cross-department cross-talk.

  • 16-Channel Audio Stack Mapping: It coordinates seamlessly with the Solidcom BPK01 beltpacks. Each beltpack features four customizable multi-function buttons, and with the Central Station driving the routing, users can stack up to 4 actions per button—allowing a single operator to toggle and monitor up to 16 separate audio channels.

  • Mass Preset Profiles: Production engineers can pre-configure and store up to 100 role presets (such as Director, Gaffer, or Camera Op) and 80 beltpack profiles, enabling rapid one-click batch deployments for incoming crews.

3. Native Dante Networking & Universal Interactivity

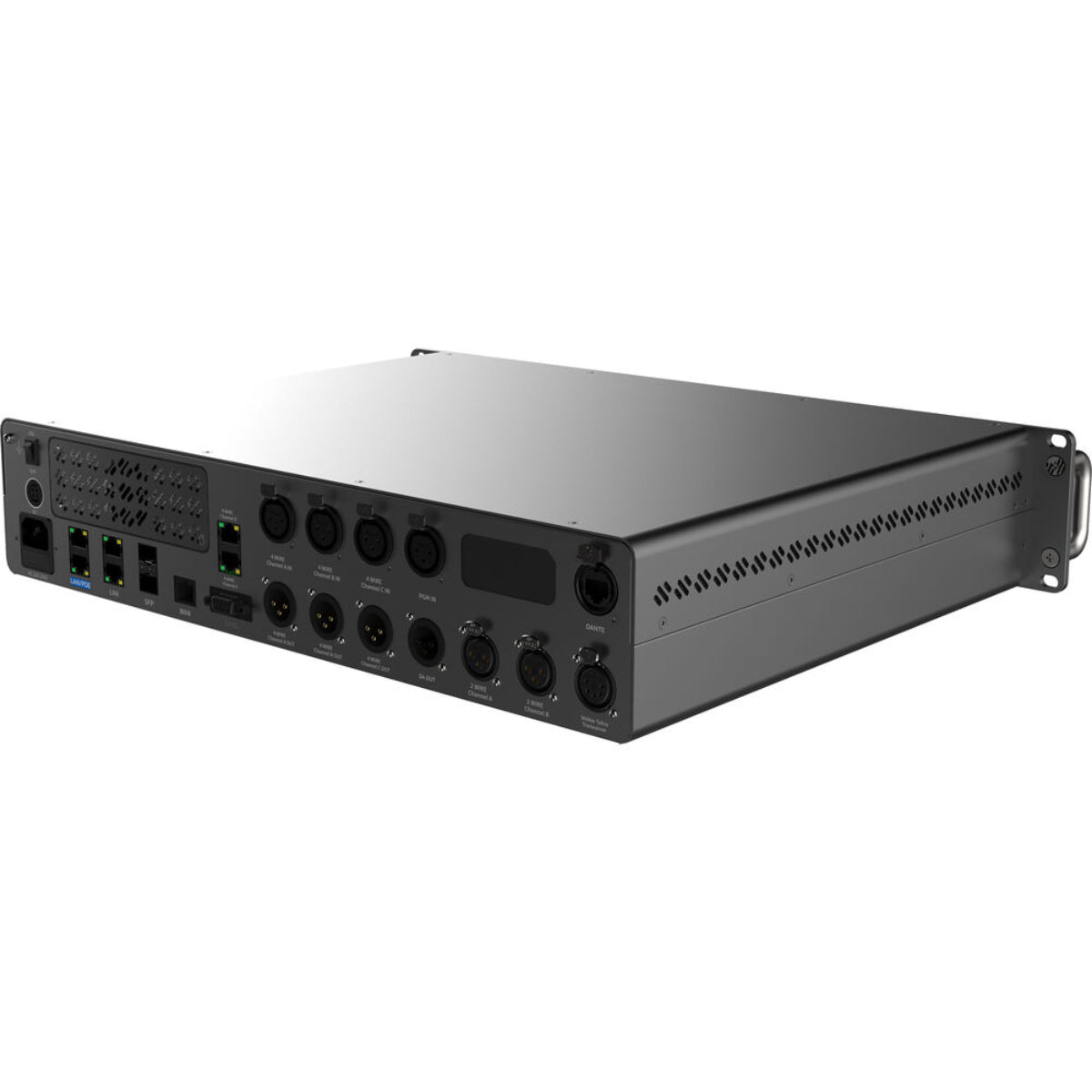

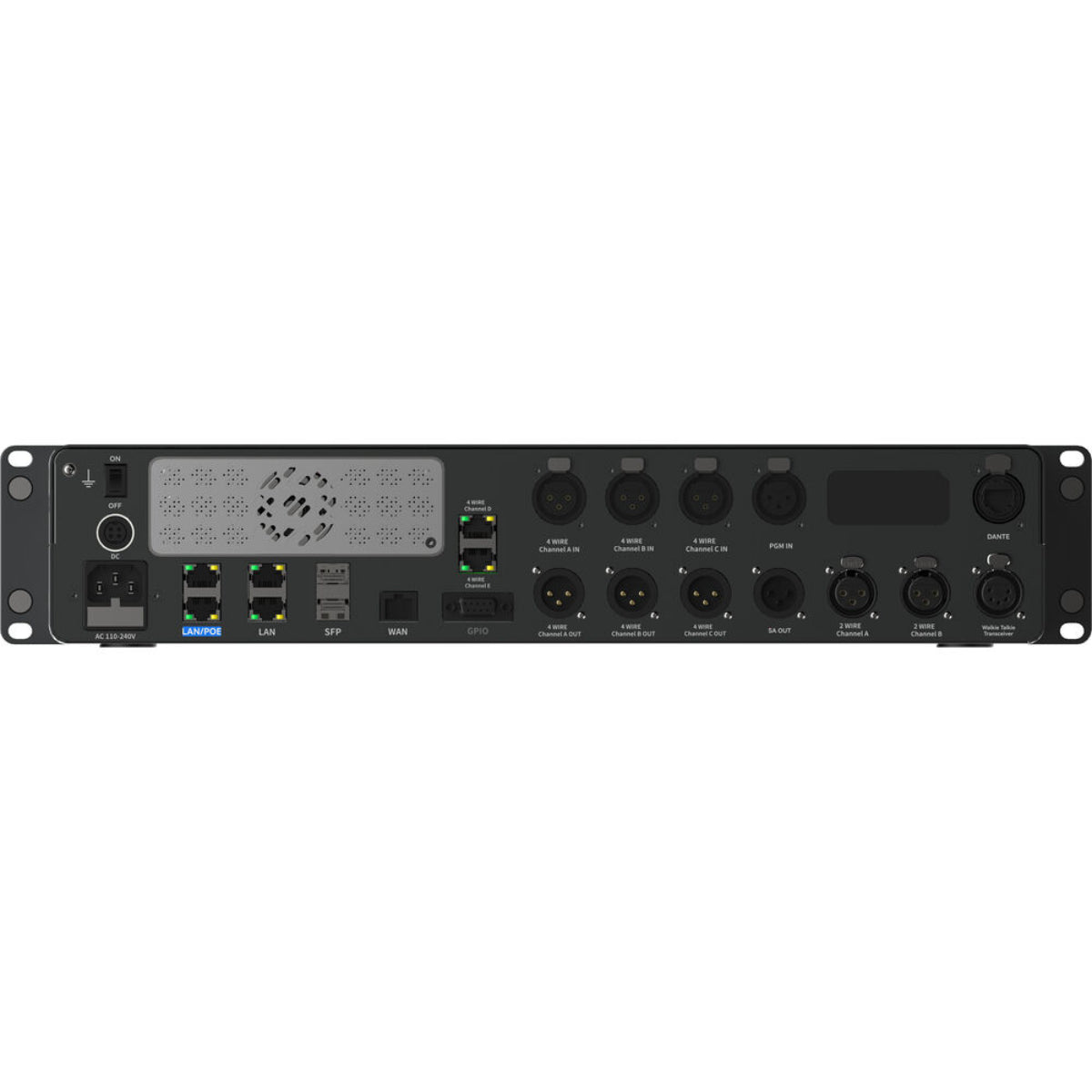

The rear and front chassis layouts are strictly engineered to bridge wireless teams into traditional television broadcast trucks and venue front-of-house configurations:

  • Built-In 4×4 Dante Port: Features native Dante/AES67 digital audio network integration straight out of the box, completely bypassing the need for expensive external digital-to-analog converters or interface boxes.

  • Universal 2-Wire/4-Wire Ports: Houses standard mechanical 2W and 4W termination blocks to hook seamlessly into legacy wired intercom lines from brands like Clear-Com, RTS, and Riedel.

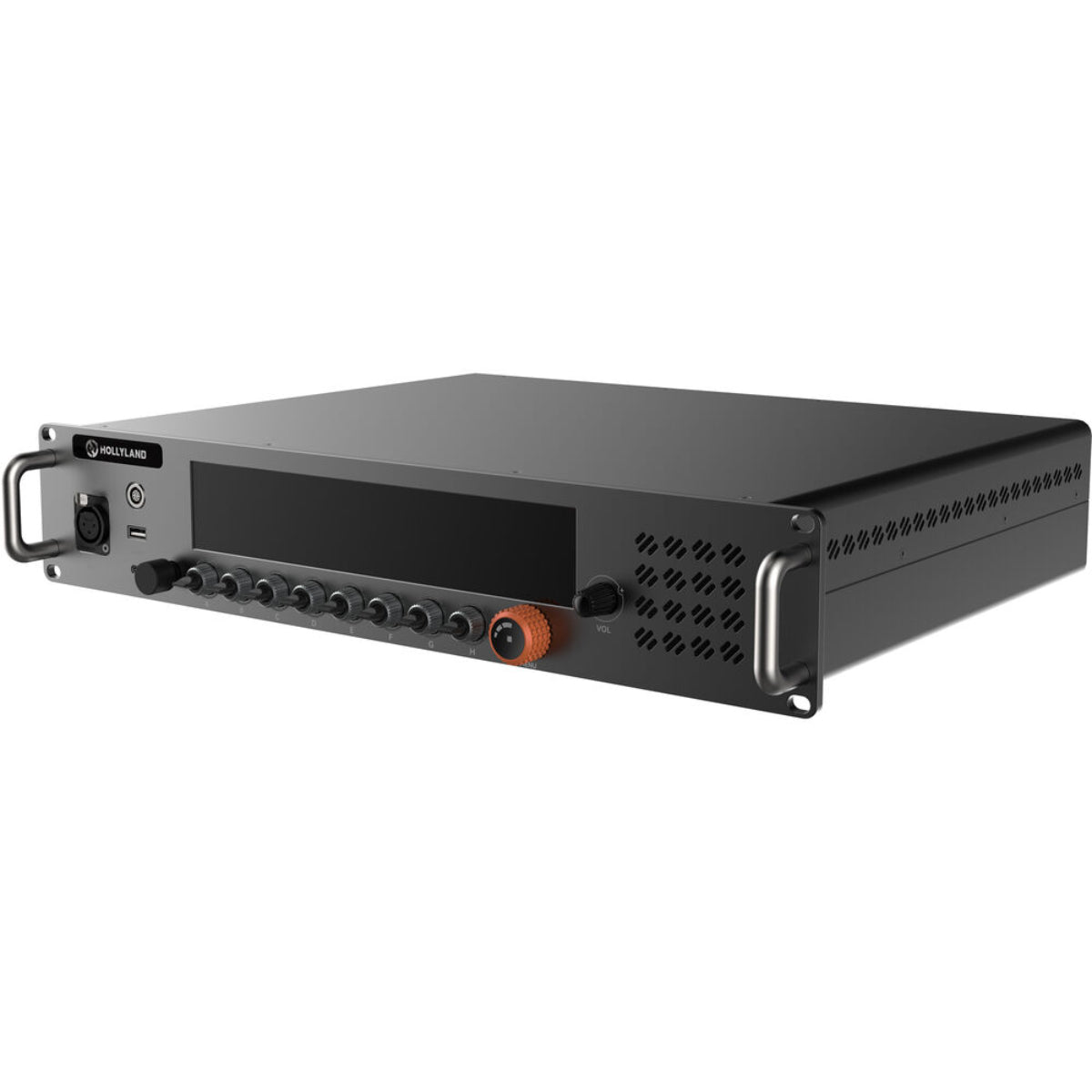

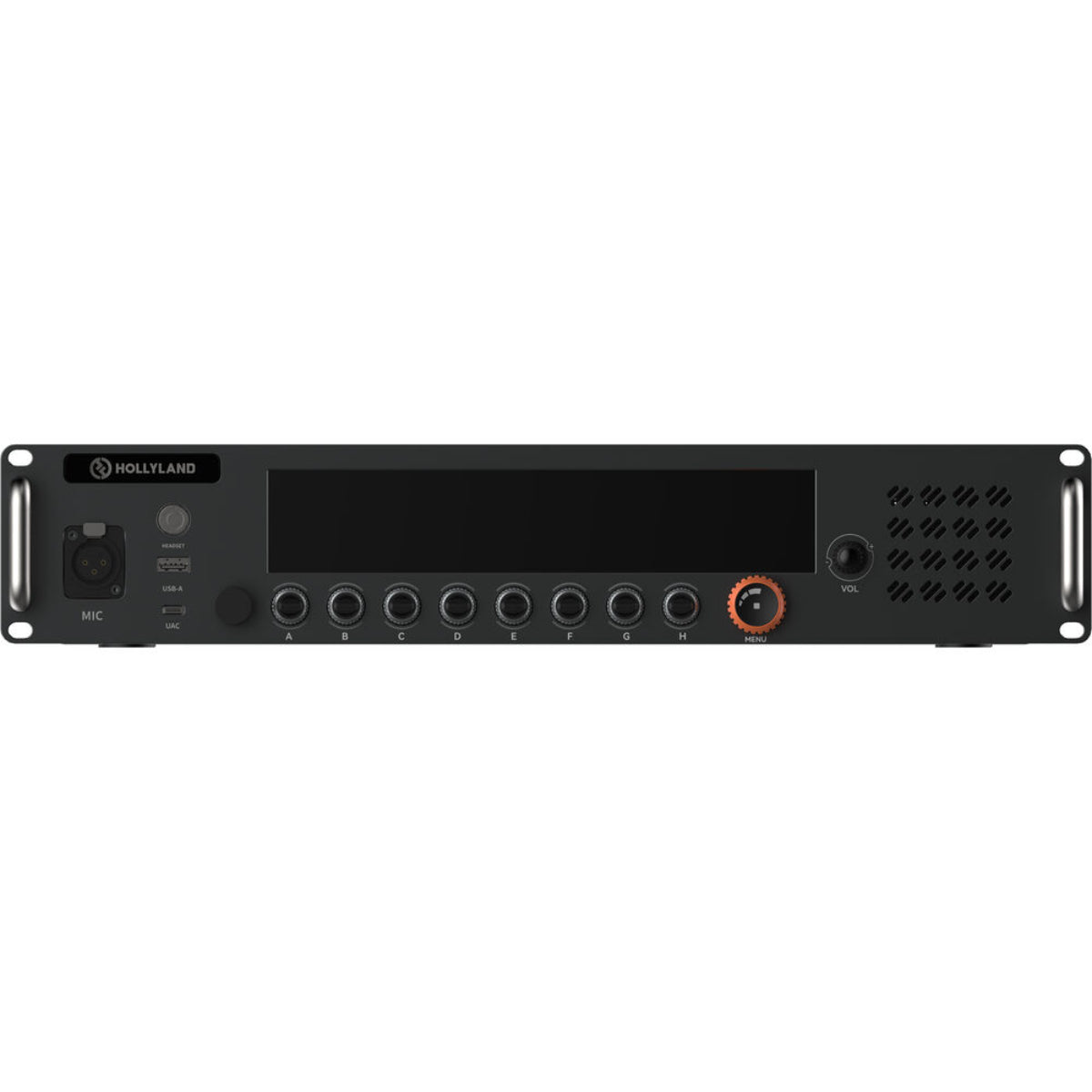

  • Tactile Mechanical Control Panel: The front interface features 8 mechanical Call Toggle Switches, giving the master station operator instant, physical override control to switch between different team call states or override group channels on the fly.

4. Cloud Communication & Remote Tech Support

Built to adapt to modern distributed workflows, the central station incorporates network-layer cloud connectivity:

  • 8 Simultaneous App Users: Systems anchored by the Geo Central Station allow up to 8 remote off-site production coordinators or directors to patch into the active venue intercom stream using a cloud-connected mobile app.

  • Web-UI Remote Management: The hub features an integrated Wi-Fi and Bluetooth module alongside its LAN ports. Technical directors or off-site engineering support can log into the station's parameters remotely via a web browser to monitor RF safety, assign groups, push firmware updates, or troubleshoot errors in real time over the internet.


Technical Summary

  • Hardware Form Factor: Standard 2RU rackmount-ready industrial chassis ($482.6 \times 385 \times 88.1 \text{ mm}$).

  • Ecosystem Limits: Supports up to 80 wireless beltpacks, 8 cascaded antennas, and 100 customized groups.

  • Digital Interfaces: 4×4 Native Dante/AES67 network ports, dedicated 2-Wire/4-Wire terminal loops, and 10-pin XLR expandability.

  • Wireless Tech Layers: Integrated Wi-Fi & Bluetooth antennas for remote software control.

  • Power Specifications: 46 VDC to 54 VDC input via lockable terminal (44W consumption); supports standard 85 VAC to 264 VAC wall power.

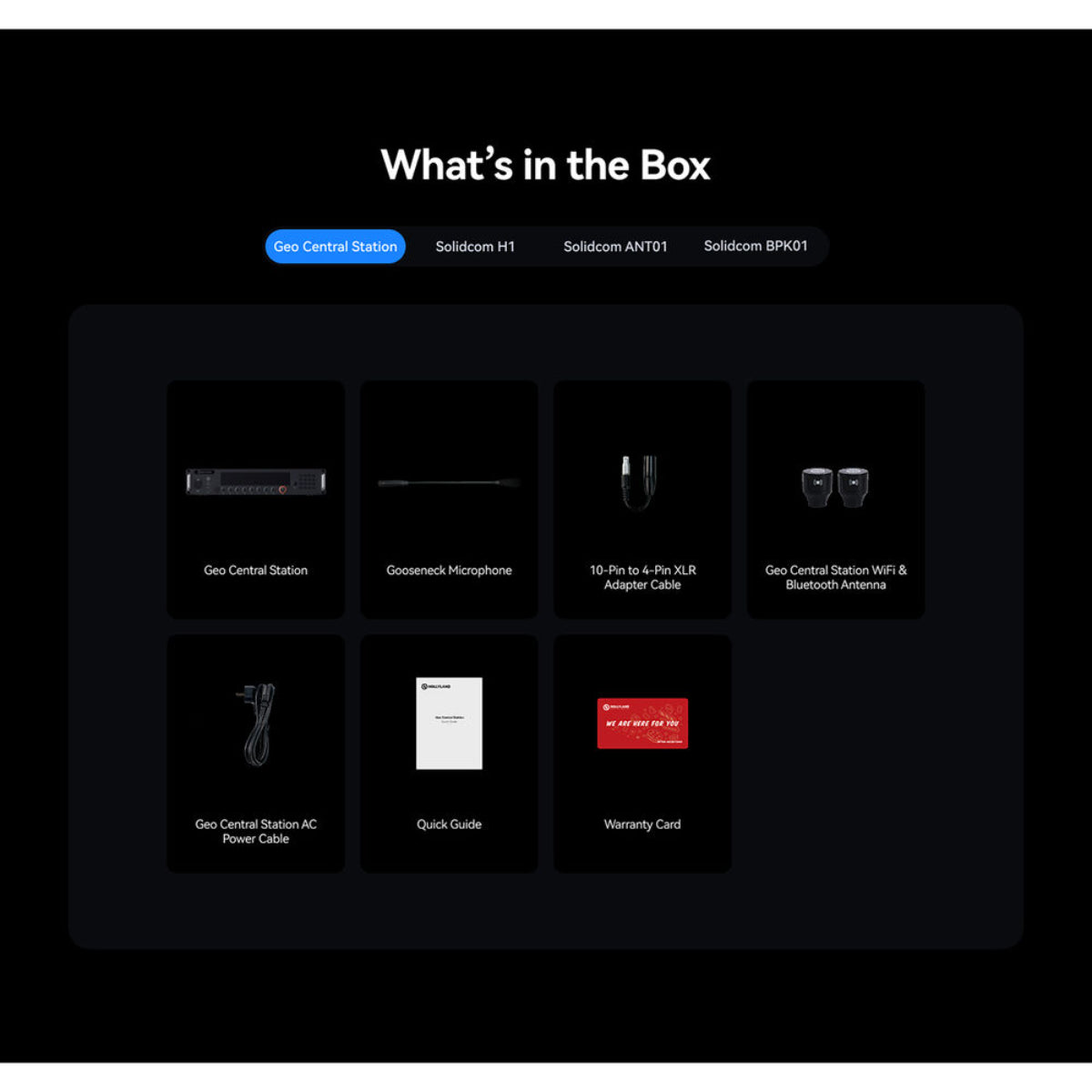

  • Box Configurations: Geo Central Station main frame, gooseneck microphone, 10-pin to 4-pin XLR adapter jumper cable, Wi-Fi/Bluetooth antenna modules, and AC power cabling.

The Hollyland Solidcom H1 Geo Central Station transforms local wireless communication into an enterprise-scale, stadium-ready matrix. By fusing uncompressed Dante routing, automated IP cascading, and deep group programming into a rugged 2RU road-ready enclosure, it gives master control rooms absolute authority over large-scale team deployments.
