SKU: S-HOL-DH-8PIN-01-8PIN

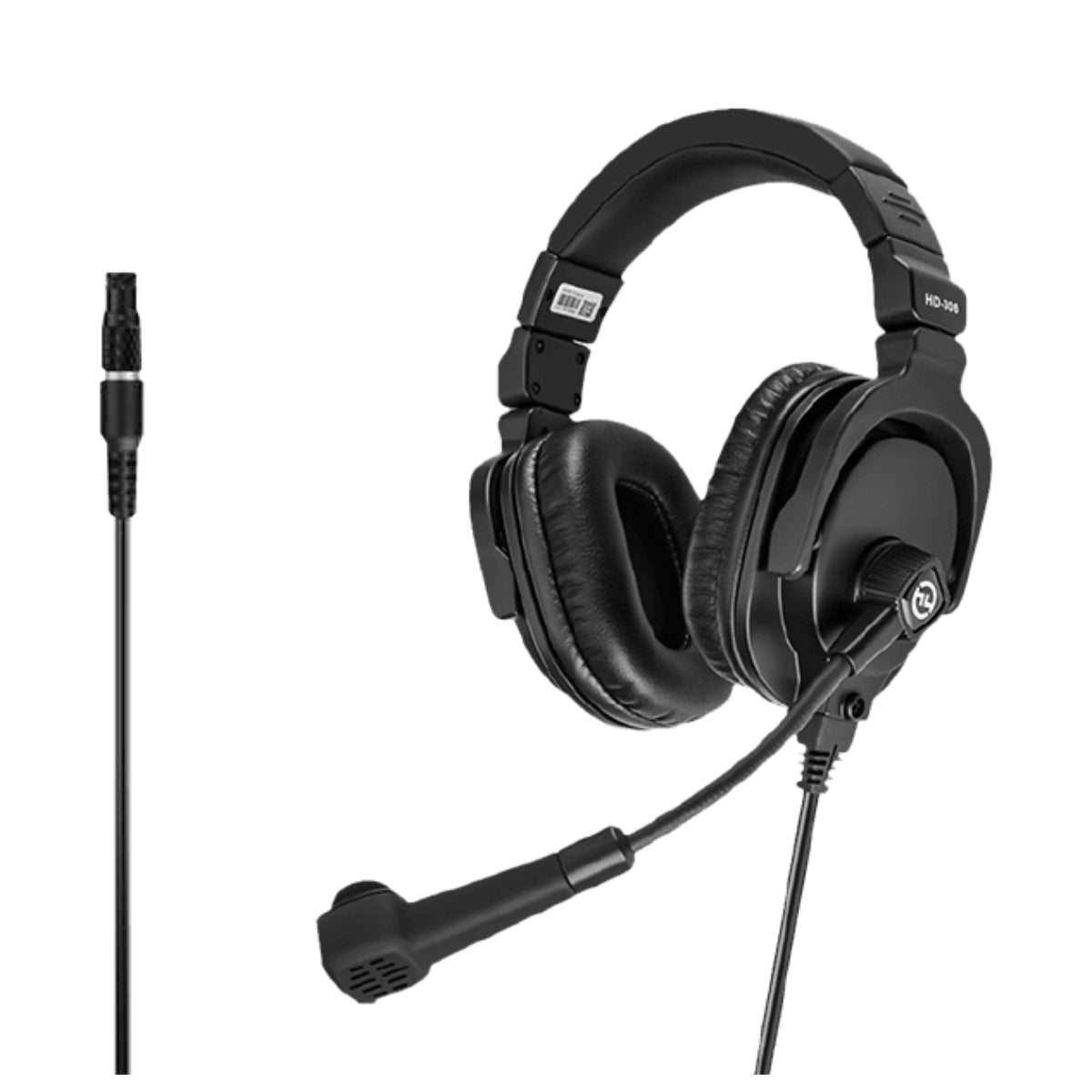

Hollyland Spares - 8pin Dynamic Double-Sided Headset (for SYSCOM 1000TSOLIDCOM M1)

R 5,459.05
Tax included Shipping calculated at checkout.

The Hollyland 8-Pin Dynamic Double-Sided Headset (Model: HL-DH-8PIN-01) is the official premium dual-ear replacement headset engineered for the beltpacks of the Solidcom M1 and Syscom 1000T wireless intercom systems.

Unlike single-ear variations, this dual-sided design isolates both ears with deep acoustic padding. It is built specifically for loud event environments—such as live rock concerts, large worship sanctuaries, motorsport tracks, and high-clearance industrial venues—where excessive ambient noise makes it difficult to hear standard intercom audio feeds.



Core Hardware & Design Features

  • Dual-Ear Passive Noise Isolation: Molded with two deep, over-ear leatherette cushions that seal firmly against the head. This physical barrier blocks external crowd noise and stage PA spill, allowing production personnel to focus strictly on technical directions.

  • Hypercardioid Dynamic Microphone Capsule: Equipped with a high-end dynamic capsule that naturally rolls off ambient low-end frequencies. The directional hypercardioid pickup pattern isolates the user's speech while rejecting neighboring sound sources.

  • Flip-to-Mute Intelligent Boom: The rugged microphone boom arm can swing around up to 270 degrees, allowing the mic assembly to be oriented on either the left or right side of the headset. Moving the boom arm vertically past the forehead activates a mechanical microswitch that automatically mutes the outgoing voice loop.

  • Secure 8-Pin LEMO-Style Termination: Features a circular locking 8-pin connector block that aligns directly into the beltpack chassis. The integrated slide-locking sleeve prevents accidental cable pullouts or dropouts if the cord snags on studio rigging or scenery.

Technical Specifications Matrix

Component Attribute Technical Specifications Detail
Official Model Number HL-DH-8PIN-01
System Interoperability Hollyland Solidcom M1 | Hollyland Syscom 1000T
Microphone Architecture Rugged Dynamic (Directional Hypercardioid Pattern)
Cable Port Connection Industrial Locking 8-Pin Multi-Pin LEMO-Style Terminal
Boom Rotation Clearance 270° (Accommodates left or right-side placement)
Audio Output Layout Dual-Ear Isolation (Mono Intercom Stream split to both ears)
Mute Control Strategy Lift-to-Mute Intelligent Boom Positioning
Headband Engineering Adjustable reinforced steel spring spine with leatherette top pad

Acoustic Deployment Hint: Because this headset seals both ears to block out the physical venue environment, it is highly recommended for static camera operators, video switchers, or audio directors who do not need to move around live production floors. Roaming stage managers or floor coordinators who must remain aware of local physical hazards or verbal stage cues may prefer the single-ear (monaural) model instead.
