Hollyland Spares - DB25 Male to Dual DB15 Male Tally Cable (for Wireless Tally System)
Hollyland Spares - DB25 Male to Dual DB15 Male Tally Cable (for Wireless Tally System) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

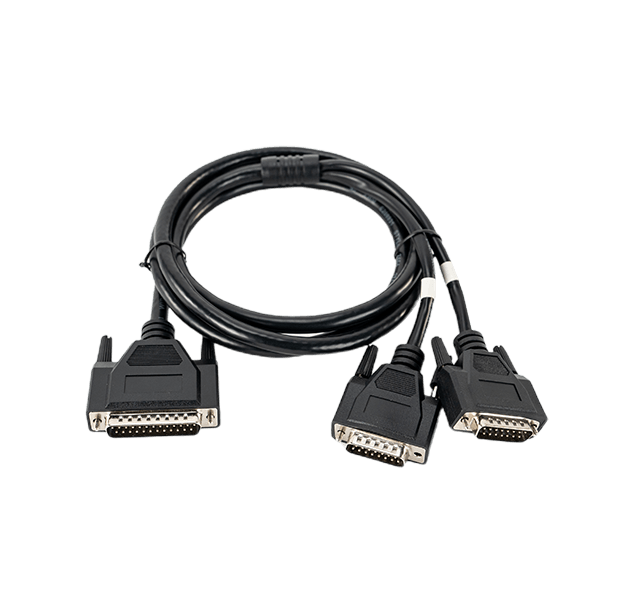

The Hollyland DB25 Male to Dual DB15 Male Tally Cable (Model: HL-TCB09) is an official OEM Y-split adapter cable engineered specifically for the Hollyland Wireless Tally System.
While the master Hollyland Wireless Tally transmitter hub utilizes a centralized female DB25 (25-pin D-Sub) port to output camera triggers, many traditional broadcast vision switchers rely on standard-density DB15 (15-pin D-Sub) terminals. The HL-TCB09 serves as a rugged physical bridge and signal expander between these two connection layouts.
Core Functionality & Purpose
On multi-camera live broadcast sets, managing separate red (on-air/PGM) and green (preview/PVW) tally signals for an expanding camera array can quickly become a cabling bottleneck. The HL-TCB09 provides a dedicated dual breakdown:
-
Y-Split Signal Expansion: It divides a single DB25 master connector out into two separate standard-density DB15 male terminals.
-
Dual-Switcher / Dual-Bank Input Routing: This layout allows a single DB25 port on the Hollyland tally controller to drive two separate switcher input blocks or target two individual destination arrays simultaneously, making it ideal for complex, multi-camera operations.
-
Broadcast-Grade Interoperability: This specific pin mapping is tailored for professional vision switchers from manufacturers like Sony and Panasonic that utilize standard DB15 terminal arrays for their dry-contact tally relay layouts.
-
Precision OEM Mapping: Wired exactly to match Hollyland's native internal ground, program, and preview logic, ensuring zero signal ghosting, lag, or missed light changes during high-speed switching.
Technical Specifications Matrix
| Component Attribute | Technical Specifications Detail |
| Official Model SKU | HL-TCB09 (Part Family: S-HOL-TCB09) |
| System Interoperability | Hollyland Wireless Tally System Main Transmitter Station |
| Connector Side A | 1 × DB25 Male (25-Pin Standard Density D-Sub) |
| Connector Side B | 2 × DB15 Male (15-Pin Standard Density D-Sub) |
| Cable Physical Length | 4.9 feet (1.5 meters) |
| Physical Weight Profile | Approx. 10.9 oz (308 grams) |
| Insulation & Shielding | Heavy-duty molded PVC casing with internal RF interference shielding |
What's In the Box?
-
1 × Hollyland DB25 Male to Dual DB15 Male Tally Cable (1.5m)
-
1 × User Manual / Pin-Out Reference Card
A Note on Connector Density (DB15 vs. HDB15): It is critical to verify the physical pin layout on your vision switcher before deploying this cable. This model utilizes standard-density DB15 connectors, which feature two horizontal rows of pins. If your vision switcher features high-density HDB15 ports—which squeeze 15 pins into three tight rows (the same shape as a classic VGA monitor cable)—you will need the sister cable variant (HL-TCB10) instead to match the physical grid spacing.
