Hollyland Spares - DB25 Male to Dual HDB15 Male Tally Cable (for Wireless Tally System)
Hollyland Spares - DB25 Male to Dual HDB15 Male Tally Cable (for Wireless Tally System) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

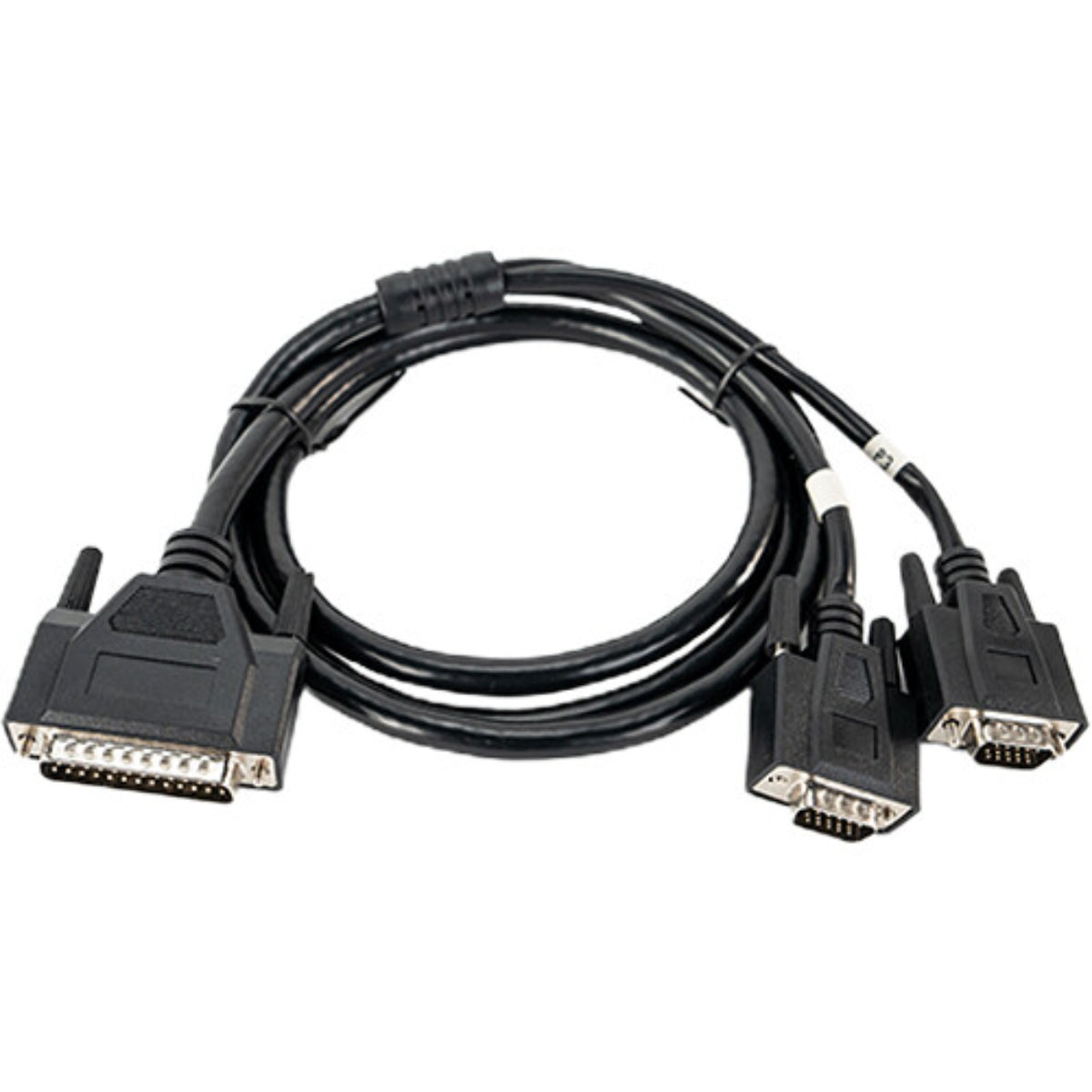

The Hollyland DB25 Male to Dual HDB15 Male Tally Cable (Model: HL-TCB10) is an official OEM Y-split adapter cable engineered for the Hollyland Wireless Tally System.
This specialized interface cable bridges the gap when a professional broadcast vision switcher provides its tally contact-closure outputs via a standard DB25 (25-pin D-Sub) bus, while the Hollyland Wireless Tally main transmitter box utilizes high-density HDB15 (15-pin D-Sub) input terminals.
Core Functionality & Purpose
On multi-camera live broadcast sets, matching the tally cues from a production switcher to a wireless transmitter can easily turn into a cabling nightmare. The HL-TCB10 functions as a physical breakout and converter:
-
Y-Adapter Expansion: It splits a single DB25 switcher master connector out into two separate HDB15 male terminals.
-
Dual-Port Input Routing: This layout allows you to feed a single, consolidated DB25 switcher bus straight into two separate Hollyland wireless tally input banks concurrently, enabling larger multi-camera operations (supporting up to 8 separate tally indicators) without needing custom soldering or breakdown boards.
-
OEM Pin-Out Mapping: Wired precisely to match Hollyland’s internal ground and trigger configuration frameworks, guaranteeing zero ghosting or missed red/green light triggers during high-speed switching.
Technical Specifications Matrix
| Component Attribute | Technical Specifications Detail |
| Official Model SKU | HL-TCB10 (Part Number: S-HOL-TCB10) |
| System Interoperability | Hollyland Wireless Tally System Transmitter Main Station |
| Connector Side A | 1 × DB25 Male (25-Pin Standard Density D-Sub) |
| Connector Side B | 2 × HDB15 Male (15-Pin High Density D-Sub) |
| Cable Physical Length | 4.9 feet (1.5 meters) |
| Physical Weight Profile | Approx. 10.5 oz (298 grams) |
| Outer Insulation Type | Rugged, flexible molded PVC shielding |
What's In the Box?
-
1 × Hollyland DB25 Male to Dual HDB15 Male Tally Cable (1.5m)
-
1 × User Manual / Pin-Out Guide Card
Switcher Deployment Check: Before running this cable, verify your switcher's manual to confirm it uses a standard DB25 dry-contact relay loop. Because this is a direct, passive wire matrix mapping, it assumes your vision switcher completes the circuit to ground when a camera goes live. If your switcher outputs active voltage tally triggers instead of contact closures, running a direct cable can cause an electrical mismatch; double-checking your hardware configuration prevents damage on set.
