Hollyland Spares - Lark M2 Camera Receiver (Shine Charcoal)
Hollyland Spares - Lark M2 Camera Receiver (Shine Charcoal) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Hollyland Spares - Lark M2 Camera Receiver (Shine Charcoal)
The Hollyland Lark M2 Camera Receiver (Shine Charcoal) is the official OEM replacement receiver unit designed for the Lark M2 wireless microphone ecosystem.
Unlike the slim plug-in mobile receivers, this box-style Camera Receiver (RX) mounts directly to your camera's hot shoe or rig. It serves as a seamless factory replacement if your original system receiver is lost or damaged, restoring your ability to capture wireless audio onto DSLR/mirrorless cameras, field recorders, or mixers.
Core Hardware & Interface Features
-

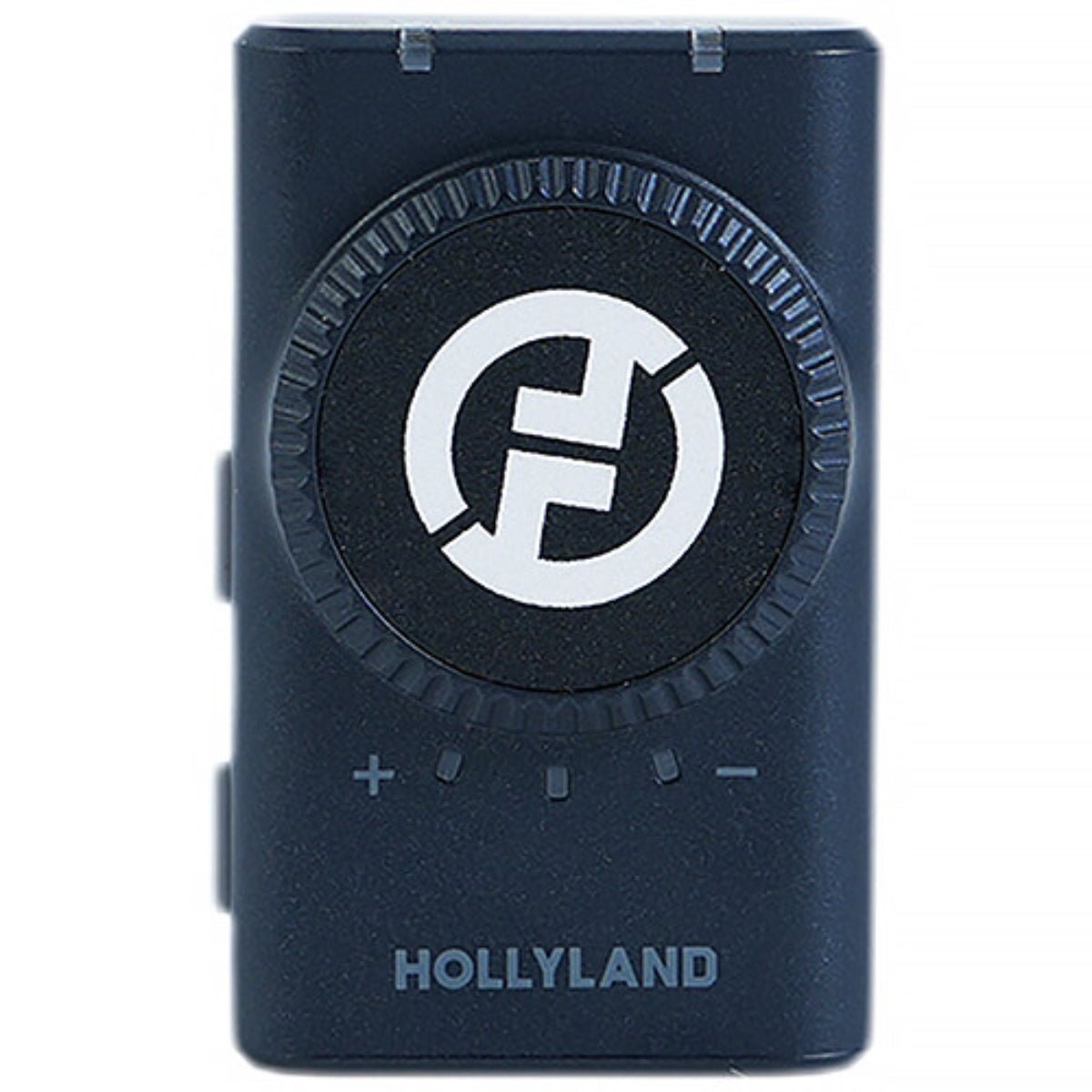

Tactile Volume & Mode Knob: The face of the receiver features a large, ridged rotary dial surrounded by indicator LEDs. This allows you to quickly adjust gain levels across three preset increments or switch between Mono and Stereo recording modes on the fly.
-
Dual-Channel Audio Tracking: Natively tracks up to two Lark M2 microphone transmitter buttons simultaneously, mixing their audio signals or splitting them cleanly into separate channels for post-production flexibility.
-
Flexible Output Interface: Equipped with a standard 3.5mm TRS output port to patch audio straight into your camera. It also features a secondary USB-C digital audio port, allowing you to interface directly with computers or UAC-compliant mobile devices.
-
Camera-Ready Form Factor: Built with a back clip that slides natively into standard camera cold shoe mounts. This keeps the receiver secured flat against your camera body without requiring extra brackets or mounting cages.
Technical Specifications Matrix
| Component Attribute | Technical Specifications Detail |
| System Interoperability | Hollyland Lark M2 Transmitters Only (Shine Charcoal / Ivory White) |
| Form Factor Variant | Camera Version (Box-Style Receiver) |
| Analog Output Port | 1 × 3.5mm TRS Main Output |
| Digital Output Port | 1 × USB-C (Supports UAC / Computer / Mobile connection) |
| Wireless Reception Range | Up to 1,000 feet (300 meters) line-of-sight from transmitters |
| Audio Resolution Depth | 48 kHz / 24-Bit Studio Quality |
| Wireless Spectrum Band | 2.4 GHz Adaptive Frequency Hopping (AFH) |
| Battery Operational Life | Up to 9 Hours of standalone continuous usage |
| Component Weight Profile | Approx. 14.8 grams (0.52 oz) |
Re-Pairing Instructions
When matching a replacement camera receiver to your existing microphone buttons, you must manually initiate a new wireless handshake to sync their encryption codes:
-
Turn on the Lark M2 Camera Receiver and your transmitter buttons.
-
Press and hold the Pairing Button on the side of the camera receiver for roughly 3 seconds until the display indicators or screen enter pairing mode.
-
Hold down the yellow side control button on your transmitter for 3 seconds.
-
The indicator lights on both the receiver and transmitter will turn solid green, confirming that the new receiver has successfully locked onto your microphone channel.
