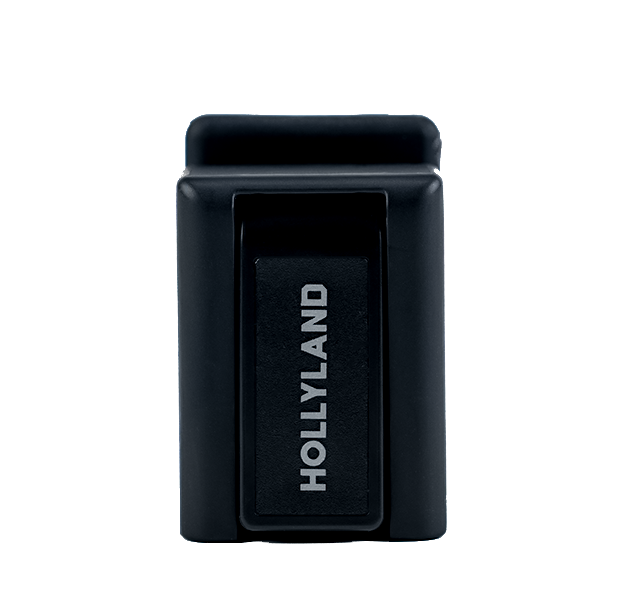

Hollyland Spares - LARK MAX 2 Hot Shoe Adapter

Hollyland Replacement Hot Shoe Adapter for the LARK MAX 2

The Hollyland Replacement Hot Shoe Adapter for the LARK MAX 2 (manufacturer part number HL-HSA) is a dedicated, intelligent hardware accessory designed to mount the LARK MAX 2 camera receiver (Camera RX) directly onto compatible camera bodies.

Moving far beyond a standard passive cold shoe bracket or piece of molded plastic, this adapter features an electronic multi-pin connector block. It completely eliminates the need for trailing 3.5 mm audio patch cables, running clean digital audio directly through the host camera's multi-interface shoe.

1. Cordless Digital Audio Routing

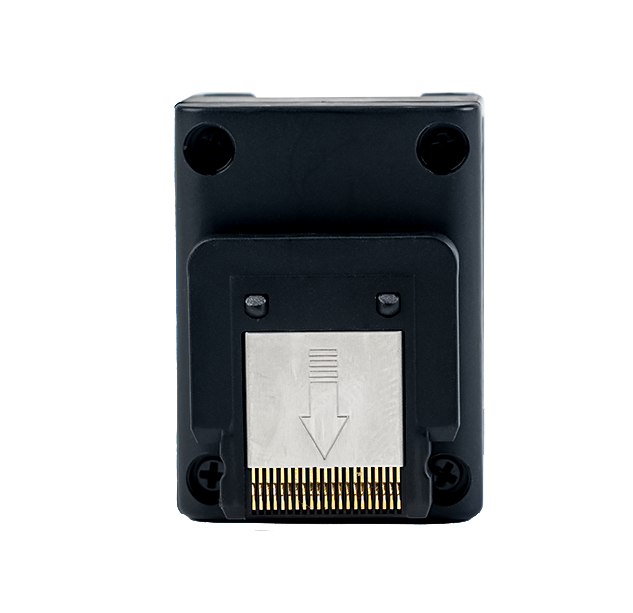

The standout feature of this hot shoe foot is its direct-contact multi-pin array. When the LARK MAX 2 receiver is slid onto the proprietary top channel of the adapter, and the adapter is locked into a compatible camera shoe, the physical audio connection is established automatically.

• Zero Wire Clutter: Camera operators can completely bypass running a 3.5 mm TRS jumper cable from the side of the receiver into the camera’s microphone input port. This streamlines the look of the camera rig and eliminates the risk of an audio feed getting disconnected if a cable gets snagged on a branch or stabilizer gimbal cage.

• Pure Signal Pathway: By passing uncompressed, lossless 24-bit/48 kHz digital audio straight through the camera's system architecture, it eliminates the localized RF buzz, ground-loop hums, or analog-preamp noise floors associated with standard 3.5 mm auxiliary jacks.

2. Sony Multi-Interface (MI) Shoe Integration

The adapter is custom-engineered to map natively to the digital pinning of Sony's Multi-Interface (MI) Shoe configuration. This enables full compatibility across a vast range of mirrorless, hybrid, and cinema bodies without needing specialized audio firmware updates:

• Vlog & Mirrorless Alpha Architecture: Flawlessly pairs with popular Sony models such as the ZV-E1, ZV-E10 / ZV-E10 II, a6700, a7 III, a7 IV, a7R IV, a7R V, a7C II, a7CR, and the flagship a9 III.

• Cinema Line & Multi-Channel Functionality: Integrates perfectly into compact video rigs like the Sony FX3 and FX30. Additionally, the adapter can be utilized on the top handle shoe expansion point of the Sony FX6 cinema camera, allowing operators to capture wireless audio on secondary channels while keeping the camera's main XLR ports free for shotgun or desk mics.

3. Protective Contact Insulation

Because the adapter utilizes sensitive, precision-engineered electronic contact pins on its base, environmental exposure is a major risk when it is off-camera. Hollyland addresses this by shipping the spare component with a dedicated, custom-molded rubber pin cover shield. This cap slides snugly over the multi-pin connector foot, defending the delicate contacts from bending, dust accumulation, grease, and moisture corrosion when the piece is stored in a gear bag.

4. Field Resilience and Practical Workflow Note

This hot shoe adapter is built from reinforced, structural polycarbonate to easily withstand the physical demands of quick-moving field shoots and live-event journalism.

⚠️ Operational Note: Because of the tight tolerances of the LARK MAX 2 system charging case, the receiver unit must be slid off this adapter foot before it can be placed back inside the case for recharging. However, the tool-free, click-and-slide mechanics mean attaching or removing it takes less than three seconds on set.

Technical Summary

• Type: Factory-original replacement digital hot shoe electronic adapter foot.

• Part Number / SKU: HL-HSA (EAN: 6976068117230).

• Compatibility: Explicitly designed for the Hollyland LARK MAX 2 Camera Receiver (Camera RX).

• Camera Hot Shoe Standard: Multi-Interface (MI) Shoe for select Sony Mirrorless and Cinema Line cameras.

• Digital Audio Output: 24-bit / 48 kHz pure digital transfer.

• Box Contents: 1x HL-HSA Hot Shoe Adapter, 1x Protective Rubber Contact Cap, 1x Quick Start Guide.

The Hollyland LARK MAX 2 Hot Shoe Adapter is a must-have maintenance spare or rig upgrade for solo shooters, vloggers, and event videographers who want a truly cable-free workflow. It simplifies camera setups, removes the hazard of tangled audio cables, and ensures a clean, reliable, and entirely digital path for your audio feed.
