SKU: S-HOL-LARK-MAX-TX-BK

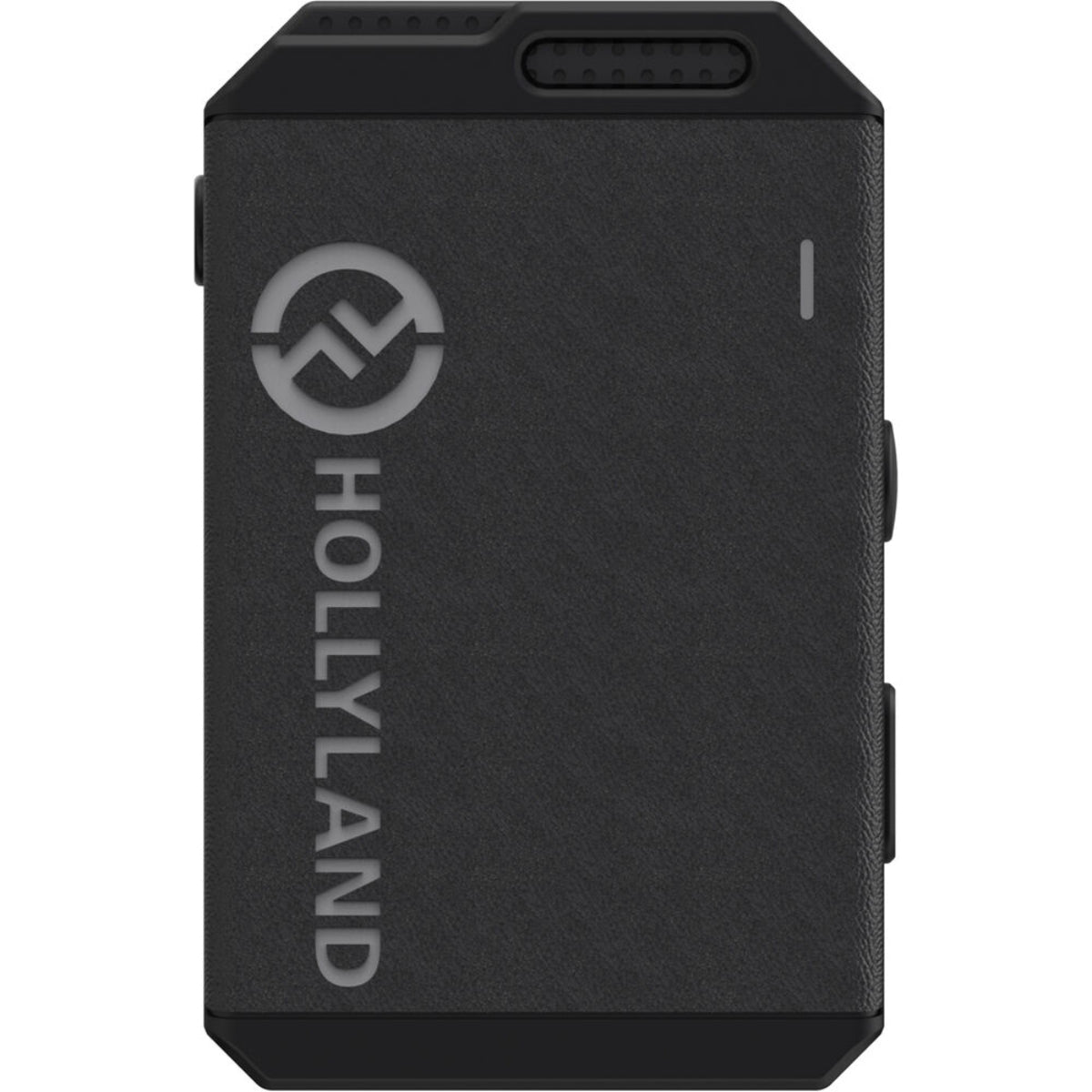

Hollyland Spares - Lark MAX Transmitter (Black)

R 2,967.00
Tax included Shipping calculated at checkout.

The Hollyland LARK MAX Standalone Transmitter (TX) in Black is an official individual spare part or expansion microphone for the flagship LARK MAX wireless system.

Unlike entry-level lavalier units, the LARK MAX transmitter is a high-performance audio engine. It features an integrated omnidirectional microphone, hardware-level onboard recording backups, and advanced MaxStream environmental noise cancellation (ENC).



Core Audio & Field Performance Features

  • Studio-Grade MaxStream Audio: Built with a high-sensitivity, 48 kHz / 24-bit omnidirectional mic capsule. It boasts a 128 dB maximum Sound Pressure Level (SPL), ensuring it captures crystal-clear dialogue without clipping, even during loud event outbursts.

  • 8GB Independent Onboard Backup Layout: The transmitter houses 8GB of internal storage, giving it the power to record up to 14 hours of uncompressed 24-bit WAV backup audio locally. This acts as a complete failsafe against unexpected wireless drops or localized radio interference.

  • One-Click Advanced ENC Technology: Features a dedicated physical button on the side panel to toggle the Advanced Environmental Noise Cancellation (ENC). This instantly isolates human speech from harsh low-end background rumble like air conditioners, traffic, or wind.

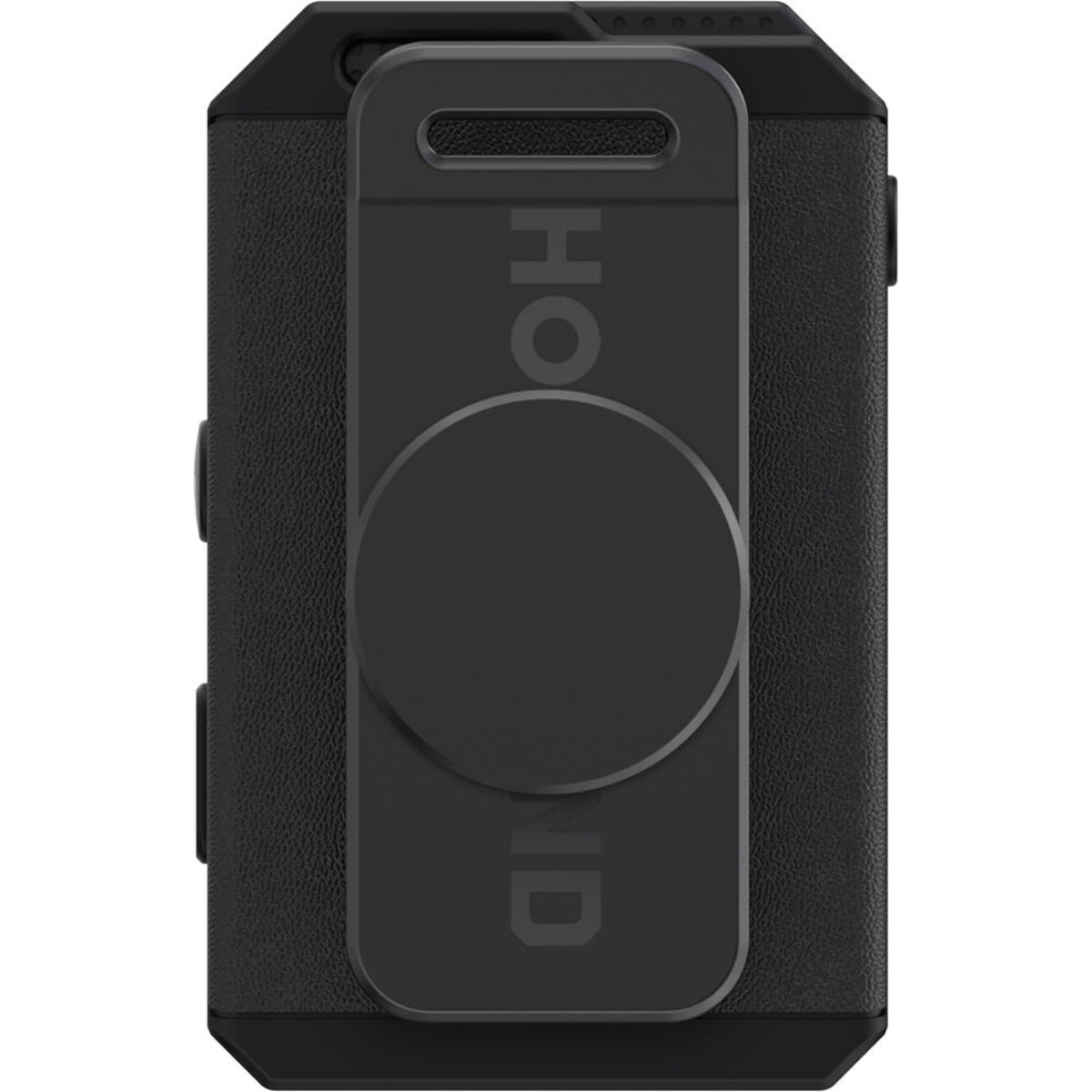

  • Magnetic or Clip-On Versatility: Designed with a robust built-in spring clip on the rear panel, it also includes a powerful detachable magnet slice. This allows the 33-gram unit to be easily mounted onto thick winter jackets, thin T-shirts, or hidden completely underneath costume layers.

Hardware Technical Specifications Matrix

Feature Component Hollyland LARK MAX Transmitter (TX) Specifications
Microphone Pickup Layout Omnidirectional (Built-In Capsule) | 3.5mm TRS Input for external lavaliers
Audio Capture Matrix 48 kHz / 24-bit Lossless Audio
Frequency Response Range 20 Hz to 20 kHz
Onboard Storage Depth 8GB (Stores up to 14 Hours of localized backup WAV audio)
Wireless Engine Profile 2.4 GHz Adaptive Frequency Hopping (AFH)
Line-of-Sight Range Limit Up to 820 feet (250 meters)
Internal Power System 490 mAh Rechargeable Lithium-Polymer Cell
Continuous Operating Life Up to 7.5 Hours (Standalone use without active charging case)
Physical Weight Profile Approx. 33 grams (1.16 oz)

How to Pair Your Replacement LARK MAX Transmitter

When introducing a new spare transmitter to your system, it must be synced to your LARK MAX receiver box. You can do this easily using two different methods:

Method A: The Charging Case Sync (Fastest)

  1. Ensure your central LARK MAX Receiver (RX) is active and sitting inside the original charging case.

  2. Drop the new replacement transmitter into the empty left or right dock inside the charging case.

  3. Close the lid for 3 to 5 seconds. The gold contact pins inside the chassis will automatically force frequency sync and register the new hardware block.

Method B: Touchscreen Manual Pair (No Case Available)

  1. Turn on both your LARK MAX Receiver and the new transmitter.

  2. Swipe down on the receiver’s circular AMOLED touchscreen display to access the system settings menu.

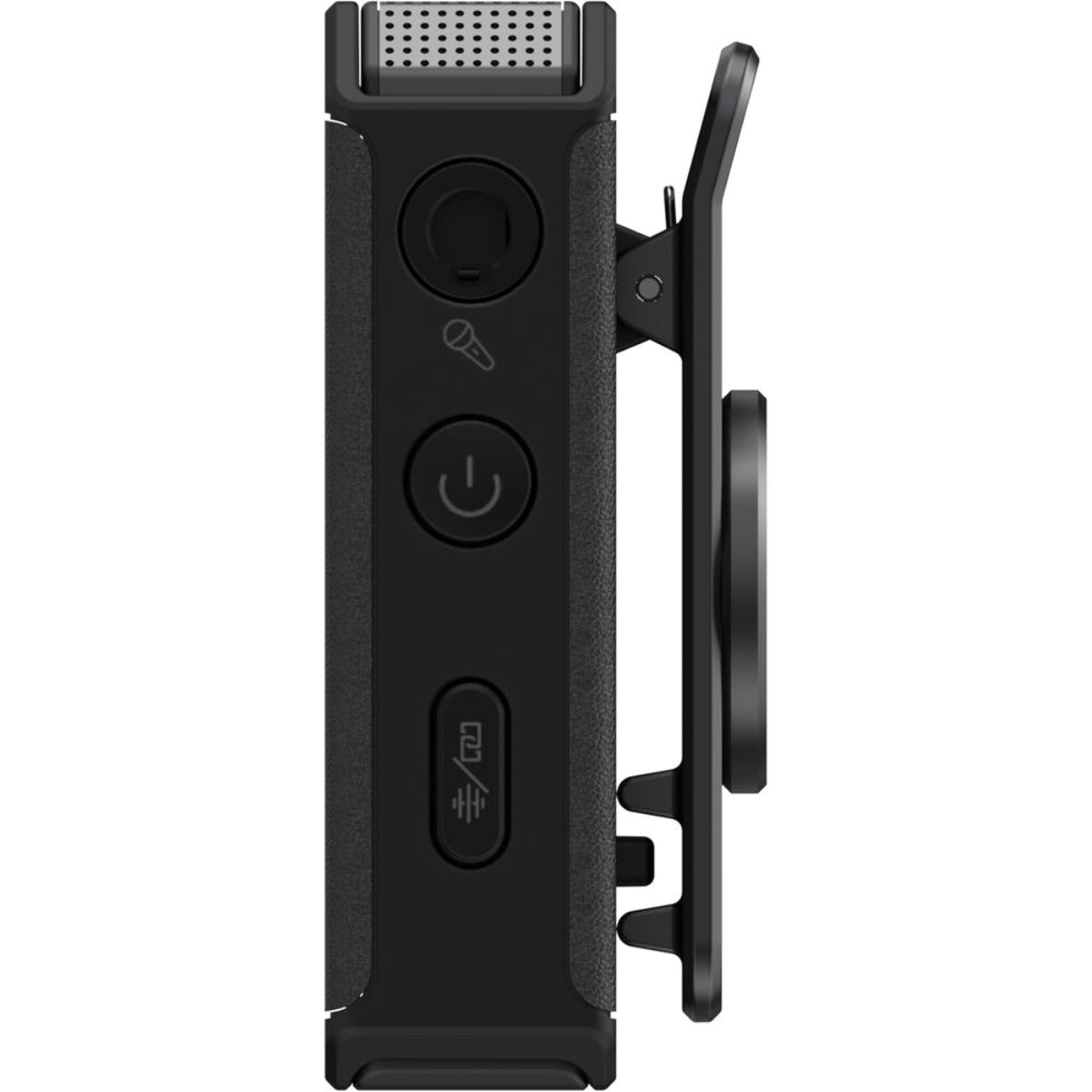

  3. Tap Pairing, then quickly tap the physical Pairing Button located on the lower right side of the transmitter.

  4. The status indicator bar on the receiver screen will instantly lock solid, signaling that the replacement microphone is mapped.

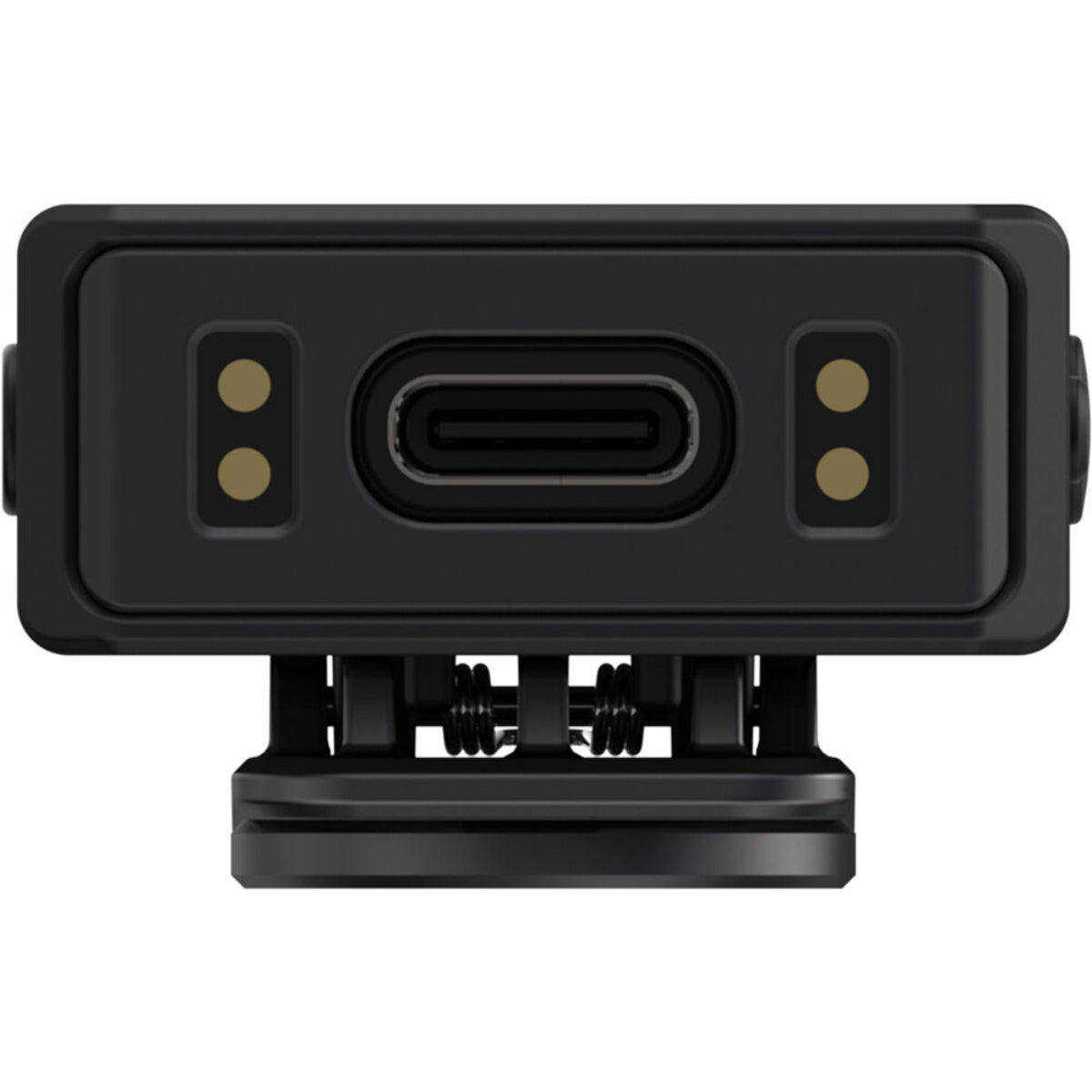

Local USB Data Extraction Note: The internal 8GB storage pool behaves exactly like a USB flash drive. If you need to retrieve recorded backup safety files after a long shoot, simply connect a standard USB-C to USB-A/C cable from the bottom slot of the transmitter straight into your laptop. The computer will immediately recognize the transmitter as a storage volume, allowing you to drag and drop the audio files straight into your video editing software.
