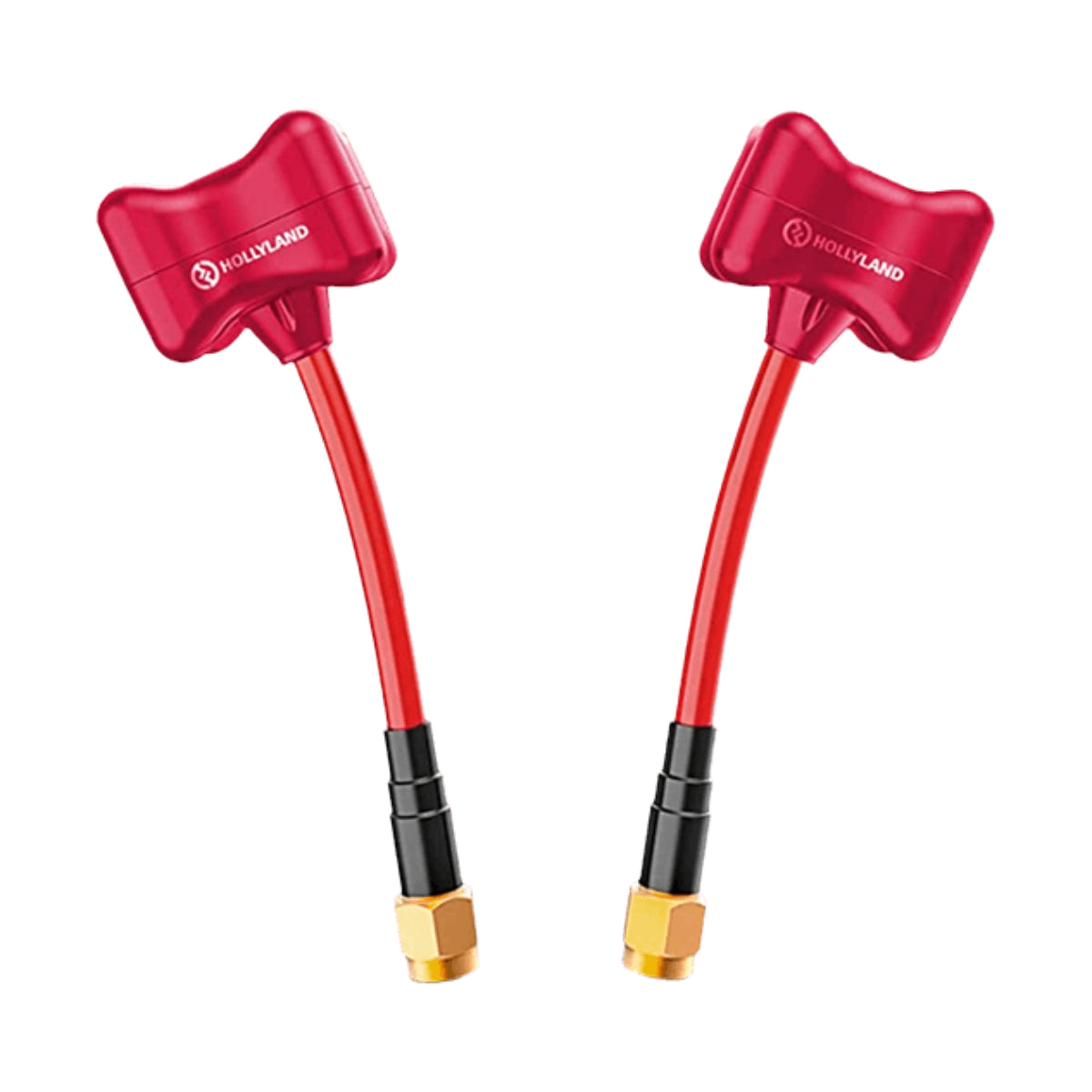

The Hollyland Triumph Antenna (Red) (Model: HL-ATN08) is an official OEM replacement and performance-optimizing antenna kit custom-engineered for several generations of Hollyland’s flagship Mars wireless video transmission series.
Unlike standard flat "paddle" or thin whip antennas that use linear polarization, the Triumph antenna features a specialized circular form factor (often referred to inside production kits as a "lollipop" or "candy box" design). It is highly favored by camera operators running dynamic handheld rigs, multi-axis gimbals, and crane setups where constant, fast-moving physical position shifts would cause standard linear signals to drop or stutter.
Core RF & Engineering Features
-
Circularly Polarized Wave Propagation: Engineered with an omnidirectional, circular polarization pattern. Because the radio frequency waves spiral outward rather than traveling on a single flat axis, the signal easily bypasses physical camera rotation, minimizing "cross-polarization attenuation" (signal drop caused by mismatching transmitter and receiver angles).
-
Broadband 5 GHz Optimization: Fine-tuned to operate flawlessly within a 5000 MHz to 5900 MHz (5 GHz) frequency range. It provides a solid 2.5dBi gain to maintain low-latency HD and 4K video feeds through standard on-set interference.
-
Striking Production Red Color Profile: The vibrant red finish serves a dual purpose. It looks highly professional on a modern camera build while letting ACs, DPs, and utility crew members immediately visually identify the high-gain transmitters or receivers from across a chaotic set.
-
Low-Profile Structural Silhouette: Measuring just 63mm (lollipop profile) to 88mm (candy box structure) in height, this antenna packs high performance into a stubby footprint. It provides plenty of overhead clearance, reducing the likelihood of clipping doorway frames or catching on stabilizing cables.
System Interoperability
This multi-generation performance spare features a standardized, gold-plated internal RP-SMA female connection thread that interfaces seamlessly with:
-
Mars Core Transmission Series: Hollyland Mars 4K, Mars 400S Pro, Mars 400S Pro II, Mars 400, and the original Mars 300 / Mars 300 Pro wireless transmission systems.
Technical Specifications Matrix
| Feature | Specification |
| Official Model SKU | HL-ATN08 (Part Family: High-Performance Wireless Video RF Spares) |
| Antenna Layout Profile | Circularly Polarized Omnidirectional "Lollipop" / "Candy Box" |
| Target Working Bandwidth | 5.0 GHz to 5.9 GHz Frequency Optimization |
| Connection Port Interface | RP-SMA Female (Coaxial Threaded) |
| Signal Gain / VSWR | 2.5 dBi Gain Base / Voltage Standing Wave Ratio ≤ 2.0 |
| Net Structural Weight | Approx. 19.4g to 23.2g per individual antenna node |
| Package Distribution Configuration | 2 × Individual Matched Red Antennas per Pack |
On-Set RF Polarization Tip: To unlock the maximum range and zero-glitch performance of the Triumph system, always deploy them as a matched pair on both ends of the transmission path. Screw two Red Triumph antennas onto your transmitter, and match them with circularly polarized antennas on your receiver. Mixing a circularly polarized antenna on your camera with a standard flat linear paddle antenna on your video village monitor forces the signal to cross-match types, which can cut your effective transmission distance by half.
