SKU: LIB-CABLE500

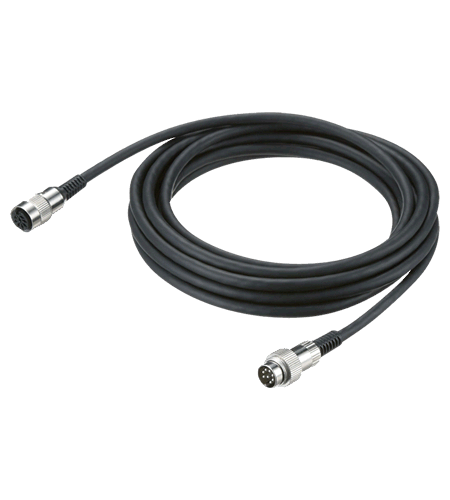

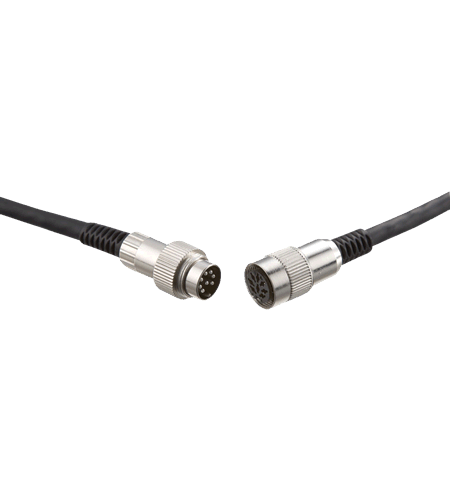

Libec 5m/16.5' control cable for REMO30, LANC and monitor

R 2,914.10
Tax included Shipping calculated at checkout.

The Libec EX-500R is a multi-channel control cable extension engineered to bridge the data loop between a remote monitoring position and a camera rigged to a heavy-duty pan/tilt head. Designed as a key component for the Libec REMO30 motorized pan and tilt head, it combines video, power, and camera commands into a single, highly durable line.

Core Features & Practical Utility

  • All-In-One Signal Consolidation: Instead of running three separate cables that can easily twist, snag, or weigh down a crane arm, the system combines REMO30 head data, LANC camera control, and composite/HD video monitoring signals inside a single, heavily insulated outer jacket.

  • LANC Remote Control Pass-Through: The cable incorporates standard 2.5mm sub-mini plugs to extend remote zoom, focus, and record triggers from a pan-handle controller (like the Libec ZC-3DV) directly to a LANC-compatible Sony or Canon camera body mounted up on the motorized head.

  • BNC Video Line Isolation: A dedicated, high-quality video line terminated with BNC connectors runs through the center of the bundle. This setup delivers crisp, real-time video monitoring feeds back to the operator’s control station without latency or frame dropping.

  • Heavy-Duty Shielded Molding: The internal copper paths are wrapped in high-density shielding to protect fragile digital data blocks from the electromagnetic interference (EMI) generated by large crane motors, power generators, or nearby wireless video transmitters.

Hardware Technical Specifications Matrix:

Parameter Libec EX-500R Specifications
Model EX-500R
Total Cable Run Length 16.5 feet or 5.0 meters
REMO30 Data Interface Multi-pin circular connection block
Camera Control Protocol 2.5mm Sub-Mini LANC Standard (Male to Female)
Video Monitoring Output Integrated BNC Connection Loop
Primary System Target Libec REMO30 Motorized Pan & Tilt Head
Jacket Compound Type High-flexibility vulcanized industrial PVC

Operational System Tips for the EX-500R:

💡 The Motor Rotation Slack Method: When routing this 5-meter bundle down the arm of a crane like the Libec Swift Jib50, always leave a loose loop of about 8 to 10 inches right where the cable meets the REMO30 pan/tilt head. Because the REMO30 is capable of rapid, full 360-degree pans and tilts, a cable pulled completely taut will wrap tightly around the motor assembly, binding the gears and potentially ripping the delicate multi-pin connectors right out of their housings mid-pan.

  • Pin Cavity Storage Care: Before packing the EX-500R back into its storage bag after an outdoor shoot, check the multi-pin control connectors for dirt or moisture. Wiping the terminal ends clean ensures the electronic contacts won't oxidize, preventing communication errors or intermittent control dropouts during your next live production.

Libec

Libec 5m/16.5' control cable for REMO30, LANC and monitor

R 2,914.10

The Libec EX-500R is a multi-channel control cable extension engineered to bridge the data loop between a remote monitoring position and a camera rigged to a heavy-duty pan/tilt head. Designed as a key component for the Libec REMO30 motorized pan and tilt head, it combines video, power, and camera commands into a single, highly durable line.

Core Features & Practical Utility

  • All-In-One Signal Consolidation: Instead of running three separate cables that can easily twist, snag, or weigh down a crane arm, the system combines REMO30 head data, LANC camera control, and composite/HD video monitoring signals inside a single, heavily insulated outer jacket.

  • LANC Remote Control Pass-Through: The cable incorporates standard 2.5mm sub-mini plugs to extend remote zoom, focus, and record triggers from a pan-handle controller (like the Libec ZC-3DV) directly to a LANC-compatible Sony or Canon camera body mounted up on the motorized head.

  • BNC Video Line Isolation: A dedicated, high-quality video line terminated with BNC connectors runs through the center of the bundle. This setup delivers crisp, real-time video monitoring feeds back to the operator’s control station without latency or frame dropping.

  • Heavy-Duty Shielded Molding: The internal copper paths are wrapped in high-density shielding to protect fragile digital data blocks from the electromagnetic interference (EMI) generated by large crane motors, power generators, or nearby wireless video transmitters.

Hardware Technical Specifications Matrix:

Parameter Libec EX-500R Specifications
Model EX-500R
Total Cable Run Length 16.5 feet or 5.0 meters
REMO30 Data Interface Multi-pin circular connection block
Camera Control Protocol 2.5mm Sub-Mini LANC Standard (Male to Female)
Video Monitoring Output Integrated BNC Connection Loop
Primary System Target Libec REMO30 Motorized Pan & Tilt Head
Jacket Compound Type High-flexibility vulcanized industrial PVC

Operational System Tips for the EX-500R:

💡 The Motor Rotation Slack Method: When routing this 5-meter bundle down the arm of a crane like the Libec Swift Jib50, always leave a loose loop of about 8 to 10 inches right where the cable meets the REMO30 pan/tilt head. Because the REMO30 is capable of rapid, full 360-degree pans and tilts, a cable pulled completely taut will wrap tightly around the motor assembly, binding the gears and potentially ripping the delicate multi-pin connectors right out of their housings mid-pan.

  • Pin Cavity Storage Care: Before packing the EX-500R back into its storage bag after an outdoor shoot, check the multi-pin control connectors for dirt or moisture. Wiping the terminal ends clean ensures the electronic contacts won't oxidize, preventing communication errors or intermittent control dropouts during your next live production.
