Libec 650EX Tripod System with Mid-Level Spreader (65mm Ball), payload 3kg
Libec 650EX Tripod System with Mid-Level Spreader (65mm Ball), payload 3kg is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Libec 650EX is a compact, entry-level tripod system designed for independent videographers, compact mirrorless or DSLR setups, and small handheld camcorders. Replacing the long-popular 650GX, this system combines a specialized fluid head, two-stage aluminum legs, and an integrated mid-level spreader into a lightweight mobile package.
Core System Engineering and Structural Features
-

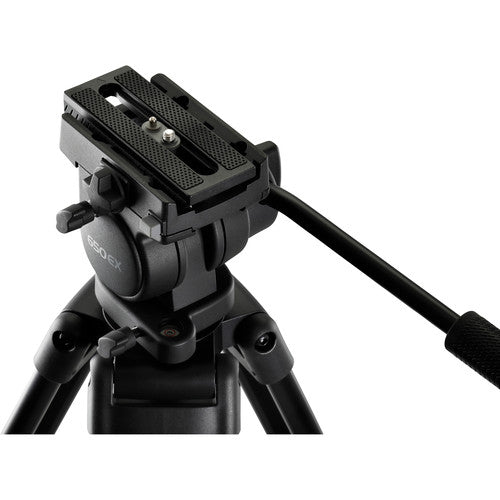

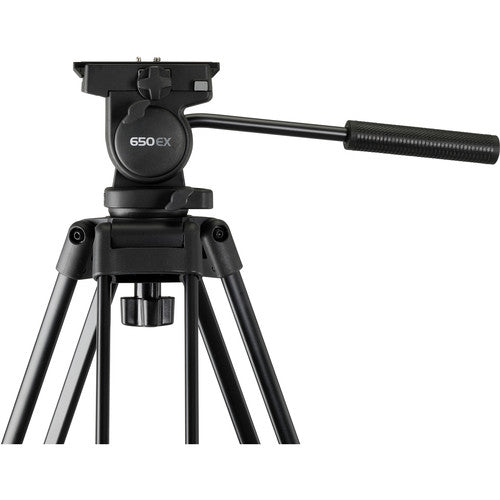

Dual-Base Fluid Head Interface: The 650EX fluid head features a unique hybrid base layout. It functions as a 65mm ball claw for quick horizon leveling inside the included tripod bowl, but it also features a flat bottom with a three-eighths inch threaded mounting point. This allows you to unscrew the tie-down knob and attach the head directly to flat-base production gear like camera sliders or monopods.
-
Upgraded Sliding Quick Release: Moving away from the legacy fixed wedge plates, the 650EX adopts a sliding camera plate system that is compatible with standard Manfrotto 501PL plates. It offers a sliding travel window of plus or minus one point two inches to easily balance front-heavy setups equipped with long telephoto lenses or matte boxes.
-

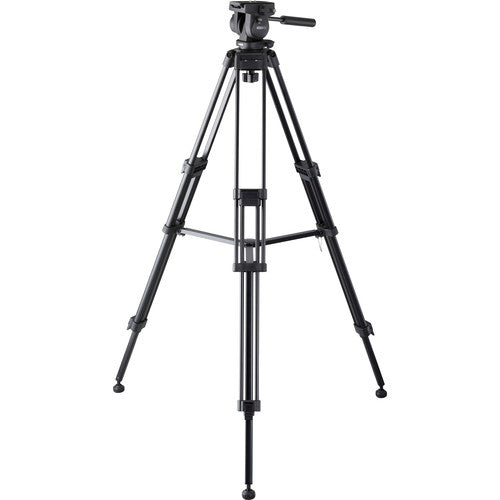

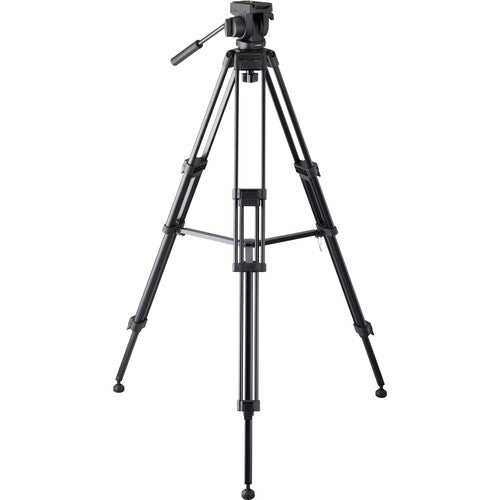

Integrated Mid-Level Spreader Setup: Unlike heavy studio systems that use detachable ground links, the 650EX features a lightweight, permanently installed mid-level spreader. This provides structural anti-splay rigidity on uneven surfaces, stairs, or rocky ground while maintaining a simple, fast setup routine.
-

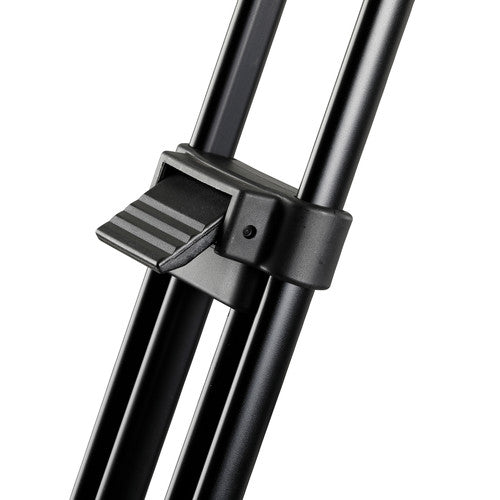

Flip-Style Quick Leg Locks: The two-stage legs utilize durable mechanical flip-lever locks rather than rotary twist rings, allowing solo operators to adjust the height from twenty-seven point five inches to fifty-nine point two inches in seconds.
Hardware Technical Specifications Matrix
| Parameter | Libec 650EX System Specifications |
| Maximum Payload Capacity | Six point six pounds or three point zero kilograms |
| Counterbalance System | Fixed Internal Spring |
| Pan and Tilt Drag Mode | Fixed Fluid Drag |
| Tilt Angle Range | Plus ninety degrees to minus seventy degrees |
| Height Elevation Range | Twenty-seven point five to fifty-nine point two inches |
| Ball Base Diameter | Sixty-five millimeters with hybrid flat-base bottom |
| Camera Plate Interface | Sliding Plate cross-compatible with Manfrotto 501PL |
| Total Assembly System Weight | Seven point three pounds or three point three kilograms |
Operational System Tips for the 650EX
The Three Kilogram Center-of-Gravity Threshold: The three kilogram maximum payload capacity assumes a standard camera center-of-gravity height of roughly fifty millimeters above the plate. If you build a top-heavy rig by stacking high-rise cage top handles, thick battery plates, or deep wireless receivers, the effective leverage on the head multiplies. For rigs pushing right up against the three kilogram limit, strip accessory weight off the hot shoe and mount it lower down to keep pan and tilt movements completely smooth and avoid overloading the fixed internal counterbalance spring.
-
One-Touch Transport Packing: When wrapping up a shoot, you do not need to overcomplicate the teardown. Simply loosen the leg locks, collapse the stages, and pull the central ring of the mid-level spreader straight up. The legs fold inward flat against the core, and the entire system clicks neatly into the included zippered transport case without requiring you to remove the pan bar.
