SKU: LIB-H25

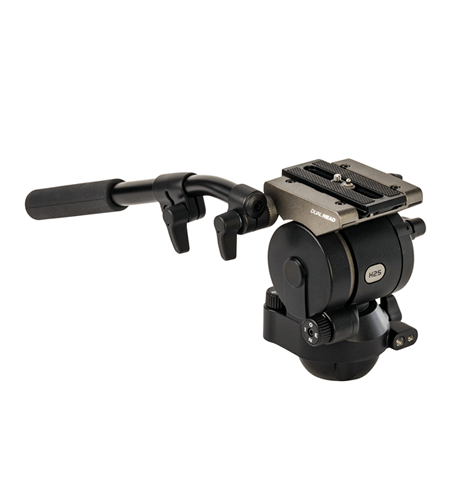

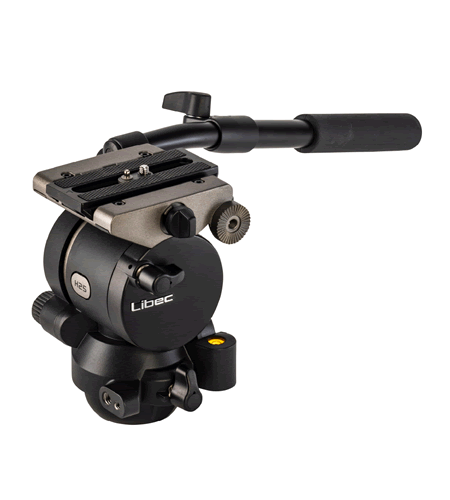

Libec 75mm ball and flat base video head with a PH-6B, payload 5kg

R 26,413.20
Tax included Shipping calculated at checkout.


The Libec H25 Professional Fluid Head combined with the Libec PH-6B Extendable Pan Handle. This combination serves as Libec's high-performance seventy-five millimeter dual-base fluid head optimized for a maximum payload capacity of exactly eleven pounds or five kilograms.

This setup is ideal for mirrorless rigs, small modular cinema setups, and compact handheld camcorders where the operator requires fluid motion control across multiple support types.

Core Engineering & Performance Design

1. Universal Dual-Base Hybrid Interface

The H25 features a versatile dual-base layout. The bottom casting is shaped with a standard seventy-five millimeter half-ball to drop into video tripod bowls. It also features a completely flat base with a standard three-eighths inch sixteen female thread in the center. This design lets an operator remove the head from its legs and attach it straight onto flat-surfaced camera gear like production sliders, dollies, or mini jibs without requiring separate adapters.

2. Perfect Continuous Counterbalance

Rather than limiting you to a few fixed presets, the H25 uses a continuous internal spring counterbalance mechanism. This system allows you to tune the head precisely to your camera's exact center of gravity for payloads up to eleven pounds or five kilograms. An illuminated zero-to-one-hundred scale meter on the back housing tracks your exact spring tension setting. Once dialed in, the camera floats weightlessly and holds its exact position at any tilt angle without falling forward or snapping back to center when you let go of the handle.

3. Stepped Damping Control

The internal pan and tilt modules are constructed from layered metal structures running specialized silicon grease to ensure stable drag resistance. The friction setup delivers four independent options, which are zero free mode plus three separate stages of increasing fluid torque resistance. This allows you to match the drag to your tracking speed or focal length smoothly.

4. Tailored Leverage with the PH-6B

The included Libec PH-6B is a premium telescopic pan handle that upgrades your steering control. It features an ergonomic rubber handle grip over a rigid aluminum shaft. By loosening its mechanical compression collar, you can adjust the physical handle length anywhere from eleven point six inches to nineteen point seven inches. Extending the handle gives you greater physical leverage, reducing muscle effort when executing slow, ultra-precise panning movements with a five-kilogram camera package.

System Technical Specifications Matrix:

Performance Parameter Libec H25 Head with PH-6B Specifications
Official Hardware SKU Libec H25 (Head Only)
Maximum System Payload Capacity Eleven pounds or five kilograms
Counterbalance Tuning Window Three point seven to nine point nine pounds or one point seven to fire point five kilograms
Pan and Tilt Torque Profiles Zero Free setting plus three steps of mechanical fluid drag
Vertical Tilt Angle Limits Positive ninety degrees to negative seventy degrees
Base Attachment Standard Seventy-five millimeter Half Ball and Threaded Flat Base combined
Camera Sliding Plate Style One-touch sideload mechanism compatible with Manfrotto and Sachtler systems
Telescopic Handle Range (PH-6B) Eleven point six inches to nineteen point seven inches
Total Head Net Weight Six point two pounds or two point eight kilograms

Operational System Tips for the H25 and PH-6B Combo:

💡 Isolating Accessory Weight: The lower stationary base casting of the H25 head houses dedicated one-quarter inch twenty and three-eighths inch sixteen female accessory threads. When mounting production monitors, wireless audio units, or video transmitters, screw your articulating arms straight into these base holes instead of clamping them to your moving camera cage. Because these holes remain completely static during camera tracking, your accessories' weight will not alter the rig's center of gravity or throw off your perfect counterbalance settings during steep tilts.

  • Managing Slider Transitions: When moving the H25 from tripod legs onto a slider carriage, always set your pan and tilt drag controls to zero free mode temporarily before unscrewing the tie-down knob. This prevents the head from shifting abruptly under your hand while you lift the five-kilogram camera rig off the tripod bowl.
