SKU: LIB-AS-7K

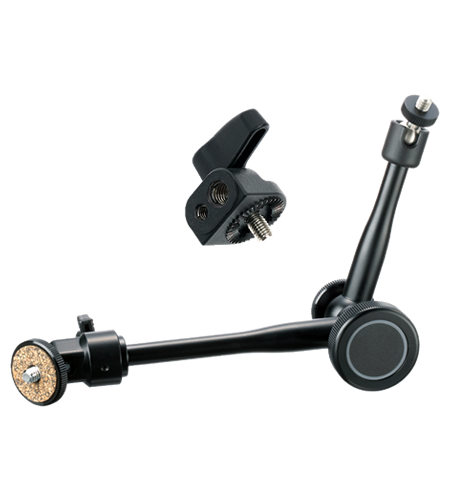

Libec Accessory support kit

R 4,909.35
Tax included Shipping calculated at checkout.

The Libec AS-7K is a professional-grade articulating accessory support kit designed to rigidly mount and position critical on-set peripherals—such as secondary LCD monitors, wireless video transmitters, audio recorders, or directional microphones—directly to your camera configuration, cage, or tripod structure.

Core Features & Practical Utility

  • Articulating Multi-Angle Arm: Measuring 10.3 inches (261mm) in length, the central mechanism functions as an adjustable friction arm. It allows camera operators to continuously variable-angle pan, tilt, and swivel an external monitor or peripheral to achieve the ideal view, then lock it firmly in place with a single knob.

  • Detachable Dual-Purpose Ball Head: The kit is topped with a modular, detachable compact ball head interface. This enables rapid accessory reconfiguration on the fly depending on whether you are running a stripped-back handheld setup or a fully systemized studio configuration.

  • Cold Shoe Adapter Versatility: The system includes a standard cold-shoe mount adapter. This allows the arm to lock into any standard camera top-handle shoe tracking rail. When the shoe adapter isn't needed, it features a clever storage design that allows it to thread directly onto the body of the support arm so it won't get lost in your gear bag.

  • Included A7 Proprietary Adapter: The kit ships with the Libec A7 Accessory Support Adapter. This specialized bolt-on bracket allows the arm to mount directly onto the accessory threads located on professional Libec fluid head housings, transferring weight away from the camera body itself.

Hardware Technical Specifications Matrix:

Parameter Libec AS-7K Specifications
Model Number AS-7K
Total Reach / Length 10.3 inches or 261 millimeters
Primary Interface Standard 1/4"-20 Threaded Mounting Screws
Included Mounting Brackets A7 Fluid Head Adapter & Standard Cold Shoe Stud
Primary System Use Case On-Camera Monitors, Microphones, TX Units
Total Net Structural Weight 0.8 pounds or 350 grams

Operational System Tips for the AS-7K:

💡 The Libec Head Thread Exception: The included A7 adapter bracket is engineered specifically to match the casting design of Libec fluid heads. While the main arm relies on an industry-standard 1/4"-20 thread for standard accessories, trying to force the specialized A7 base plate onto third-party tripods (like Manfrotto or Sachtler housings) without an intermediate reducer bushing can strip out non-matching accessory ports.

  • Preventing Lever Sag: When mounting heavy 7-inch production monitors or deep dual-battery receivers, position the articulating arm joints so they line up vertically with gravity rather than angling out horizontally as an overextended lever. Minimizing horizontal leverage protects the inner friction ball joints from slipping during fast panoramic camera movements.
