SKU: LIB-AD-100V

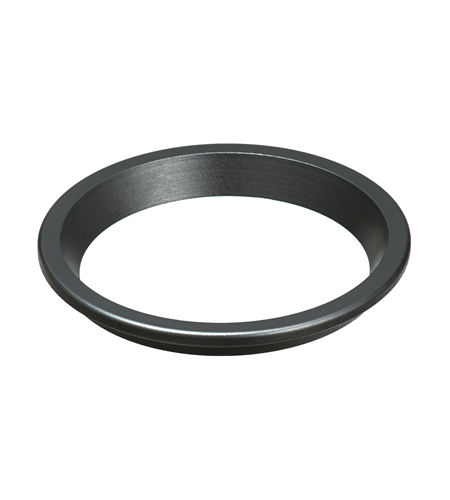

Libec Adapter of Vinten 100mm heads for 100mm ball diameter tripods

R 1,637.60
Tax included Shipping calculated at checkout.

The Libec AD-100V is a highly specific, precision-machined adapter ring engineered to mount standard Vinten 100mm spherical leveling fluid heads seamlessly onto Libec 100mm bowl-diameter tripod legs or pedestals.

While both brands utilize the "100mm" sizing standard, Vinten fluid heads feature a slightly different spherical contour, lip shape, and tie-down thread depth compared to native Japanese or standard European layouts. The AD-100V bridges this minor dimensional gap to prevent physical slippage.

Core Features & Practical Utility

  • Precision Dimensional Profiling: The adapter ring functions as a perfect concentric spacing sleeve. It alters the curvature of the receiver track so that Vinten's distinct 100mm ball base seats with 100% surface contact inside a Libec 100mm bowl, completely eliminating structural gaps.

  • Preserves Smooth Swivel Leveling: Using the AD-100V ensures you do not have to resort to a flat-base conversion puck. The camera operator retains full, unhindered use of the head's spherical swivel design, letting you level the horizon in seconds without messing with individual tripod leg heights.

  • Eliminates Drag Torsional Slop: When performing high-drag panoramic tilts or high-torque pans with long broadcast lenses, any microscopic mismatch between a head and a bowl will manifest as a tiny frame stutter. This alloy ring absorbs that torque, providing a rigid anchor.

Hardware Technical Specifications Matrix:

Parameter Libec AD-100V Specifications
Model Number AD-100V
Upper Receiver Profile Custom-contoured for Vinten 100mm Ball Heads (e.g., Vision series)
Lower Interface Target Libec 100mm Diameter Tripod Bowls
Primary System Use Case Studio Pedestals (like BA-100/P1000) & Heavy-Duty Video Legs
Material Build High-Grade Anodized Structural Aluminum

Operational System Tips for the AD-100V:

💡 The Sandwich Pressure Check: The AD-100V is a completely free-floating adapter ring with no separate mounting screws of its own. It locks down purely through vertical compression. To install it safely, drop the AD-100V cleanly into the Libec 100mm tripod bowl first, seat your Vinten fluid head directly inside the ring, and firmly tighten the Vinten's lower tie-down clamping knob from underneath. The mechanical sandwiching force binds the three independent elements into one immovable unit.

  • Keep the Surfaces Pristine: Because the adapter sits directly between two moving metal surfaces during coarse leveling adjustments, keep its faces totally free of fine grit or arena dust. Trapped particles can act as an abrasive under the extreme weight of a broadcast camera package, scoring the protective finish of your gear over time.
