SKU: LIB-CA-7S

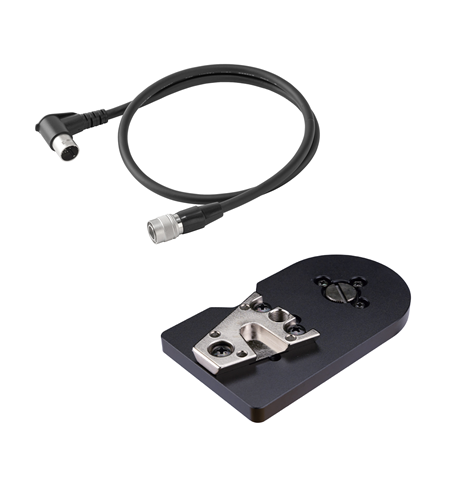

Libec Connection cable and shoe attachment for Sony system cameras and the SVF-7Pro

R 14,568.20
Tax included Shipping calculated at checkout.


The Libec CA-7S is a dedicated integration hardware kit engineered to adapt the Libec SVF-7Pro 7" Full HD Studio Viewfinder directly onto Sony system and studio cameras. Because studio viewfinders require proprietary physical mounting and specific multi-channel signal routing, this system package acts as the bridge needed to convert a portable camera configuration into a full-fledged studio pedestal build.

Core Features & Practical Utility

  • Direct 20-Pin Hirose Interfacing: The included viewfinder cable features a high-density 20-pin Hirose connector. This single line pipes the camera's analog HD component video return signals, comprehensive menu overlays, power, and tally commands directly to the SVF-7Pro monitor chassis without latency.

  • Sony-Specific Heavy Duty Shoe Mount: The kit includes a machined mechanical shoe attachment designed specifically to slide cleanly into the proprietary top viewfinder tracks found on Sony broadcast camera bodies. It creates a completely rigid, wobble-free anchor point capable of handling the monitor's 2.65-pound (1.2 kg) weight during rapid pedestal pans.

  • Integrated Studio Systemization: By marrying the camera body to the SVF-7Pro monitor via the CA-7S, it enables proper operation of the viewfinder's front and rear tally indicators (Red and Green), allowing both the studio talent and the operator to know precisely when that camera build is on-air.

Hardware Technical Specifications Matrix:

Parameter Libec CA-7S Specifications
Model Number CA-7S
Primary Monitor Matching Libec SVF-7Pro 7" Color Viewfinder
Target Camera Standard Sony Studio / System Camcorders
Cable Interface Standard 1x 20-Pin Hirose Multi-Channel Connection
Mounting Hardware Dedicated Sony Viewfinder Track Shoe Attachment
Chassis Component Color Matte Broadcast Black

The Studio Viewfinder Compatibility Matrix:

If you ever deploy a mixed-camera studio floor utilizing camera heads from different manufacturers alongside your Sony systems, note that the internal pin layouts and shoe mount widths change. Libec splits these system kits into three distinct variants:

  • Libec CA-7S: Tailored exclusively for Sony System Cameras.

  • Libec CA-7I: Tailored exclusively for Ikegami System Cameras.

  • Libec CA-7H: Tailored exclusively for Hitachi System Cameras.

Operational System Tips for the CA-7S:

💡 The Alignment Lock Check: When sliding the CA-7S shoe attachment into the Sony camera mount track, push it completely forward until the integrated physical guide pins click into place. Always tighten down the main mechanical wing-bolt knob before mounting the SVF-7Pro monitor. If you mount the heavy 7-inch monitor onto a loose shoe, the lever action can twist and warp the camera's native top plate tracks during rapid studio shifts.

  • Hirose Cable Break-Down Routine: When breaking down your broadcast configuration after a show, do not tug on the flexible rubber middle section of the 20-pin Hirose cable to disengage it. The connector relies on an outer sliding collar lock. Grasp the knurled metal barrel directly and pull it straight back; the internal lock will release effortlessly, preventing bent pin needles.
