SKU: LIB-DC-Z20

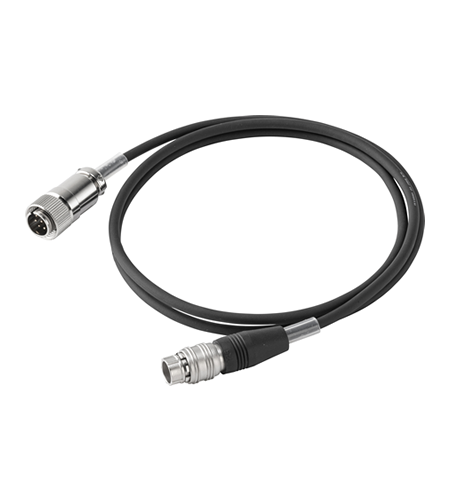

Libec Connection cable for Canon 20-pin portable lenses and the ZD-1

R 5,245.15
Tax included Shipping calculated at checkout.

The Libec DC-Z20 is a specialized, high-performance connection cable engineered to link the Libec ZD-1 Zoom Demand controller directly to Canon 20-pin portable broadcast lenses. It serves as an essential data bridge, enabling fluid, variable-speed digital servo zoom functionality on live production, EFP, and studio pedestal camera setups.

Core Features & Practical Utility

  • Precision Hirose Signaling: The cable features an industry-standard 20-pin Hirose-style push-pull male connector on the lens side. It establishes a secure multi-channel interface to communicate zoom speed adjustments, record start/stop triggers, and video return (RET) commands instantly without data lag.

  • Lossless Voltage Shielding: The internal architecture is layered with heavy anti-interference shielding to isolate the electronic command signals from electromagnetic interference (EMI) and radio frequencies (RF) commonly present near high-output studio lighting grids and power arrays.

  • Optimized Panning Length: With a physical length of 39.3 inches (1 meter), the cable offers the ideal amount of slack to run along a fluid head pan handle without creating an unmanageable mess of wire, while remaining loose enough to prevent binding during extreme vertical tilts or panoramic swings.

Hardware Technical Specifications Matrix:

Parameter Libec DC-Z20 Specifications
Model DC-Z20
Total Run Length 39.3 inches or 1.0 meter
Lens-Side Interface 1x 20-Pin Hirose Push-Pull Male Connector
Demand-Side Interface 1x 8-Pin Circular Dedicated Connection
Primary System Matching Libec ZD-1 Zoom Demand Controller
Lens Standard Target Canon ENG / EFP Portable Servo Lenses (20-Pin variants)
Net Structural Weight 0.13 pounds or 60 grams

Operational System Tips for the DC-Z20:

💡 The Hardware Protocol Switch: The Libec ZD-1 is a cross-brand universal demand controller. When pairing it with a Canon 20-pin lens via the DC-Z20 cable, you must manually align the physical hardware settings on the controller itself. Locate the recessed Lens Switch toggle situated on the base or underside of the ZD-1 housing and ensure it is switched cleanly over to "C" (Canon). If left on the "F" (Fujinon) preset, the servo electronic commands will conflict, rendering the pan-handle zoom lever completely unresponsive.

  • Managing Push-Pull Strain: When breaking down your broadcast rig at the end of a multi-camera shoot, never pull on the flexible rubber cable jacket to disconnect the 20-pin Hirose terminal from your Canon lens block. The connector relies on an outer sliding locking collar; firmly grasp the knurled metal barrel sleeve and slide it backwards to disengage the mechanical internal lock smoothly, preventing internal wire fractures over time.
