SKU: LIB-DC-Z12

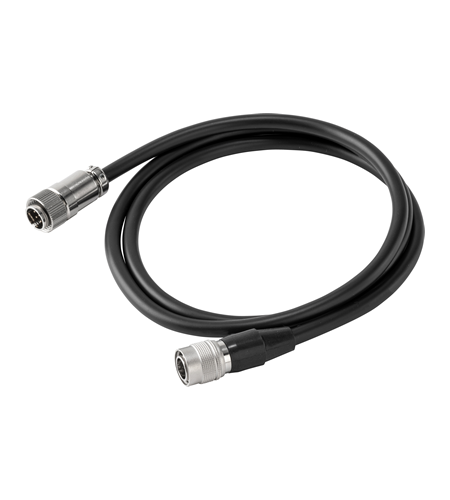

Libec Connection cable for Fujinon 12-pin portable lenses and the ZD-1

R 5,245.15
Tax included Shipping calculated at checkout.

The Libec DC-Z12 is a specialized, high-performance connection cable engineered to link the Libec ZD-1 Zoom Demand controller directly to Fujinon 12-pin portable broadcast lenses. It serves as an essential data bridge, enabling fluid, variable-speed digital servo zoom functionality on live production, EFP, and studio pedestal camera setups.

Core Features & Practical Utility

  • Precision Hirose Signaling: The cable features an industry-standard 12-pin Fujinon-style circular male connector on the lens side. It establishes a secure multi-channel interface to communicate zoom speed adjustments, record start/stop triggers, and video return (RET) commands instantly without data lag.

  • Lossless Voltage Shielding: The internal architecture is layered with heavy anti-interference shielding to isolate electronic command signals from electromagnetic interference (EMI) and radio frequencies (RF) commonly present near high-output studio lighting grids and power arrays.

  • Optimized Panning Length: With a physical length of 39.4 inches (1 meter), the cable offers the ideal amount of slack to run along a fluid head pan handle without creating an unmanageable mess of wire, while remaining loose enough to prevent binding during extreme vertical tilts or panoramic swings.

Hardware Technical Specifications Matrix:

Parameter Libec DC-Z12 Specifications
Model DC-Z12
Total Run Length 39.4 inches or 1.0 meter
Lens-Side Interface 1x 12-Pin Circular Male Connector
Demand-Side Interface 1x 8-Pin Dedicated Connection
Primary System Matching Libec ZD-1 Zoom Demand Controller
Lens Standard Target Fujinon ENG / EFP Portable Servo Lenses (12-Pin variants)
Net Structural Weight 0.13 pounds or 60 grams

Operational System Tips for the DC-Z12:

💡 The Hardware Protocol Switch: The Libec ZD-1 is a cross-brand universal demand controller. When pairing it with a Fujinon 12-pin lens via the DC-Z12 cable, you must manually align the physical hardware settings on the controller itself. Locate the recessed Lens Switch toggle situated on the base or underside of the ZD-1 housing and ensure it is switched cleanly over to "F" (Fujinon). If left on the "C" (Canon) preset, the servo electronic commands will conflict, rendering the pan-handle zoom lever completely unresponsive.

  • Managing Push-Pull Strain: When breaking down your broadcast rig at the end of a multi-camera shoot, never pull on the flexible rubber cable jacket to disconnect the 12-pin terminal from your Fujinon lens block. Securely grasp the outer metal alignment sleeve of the circular plug and slide it backward to disengage the mechanical internal lock smoothly, preventing internal wire fractures over time.
