SKU: LIB-PH-6B

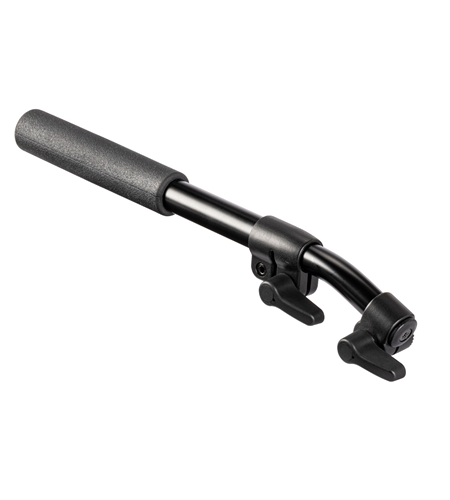

Libec Extendable pan handle for RH25D, RH35D, RH45D, H15, H25, H35 and H45

R 1,914.75
Tax included Shipping calculated at checkout.

The official, factory-designated extendable pan handle designed for the Libec RH25D, RH35D, RH45D heads, as well as the H15, H25, H35, and H45 video heads, is the Libec PH-6B.

Unlike the PH-8B series (which is keyed exclusively for the larger LX10 and RHP lineups), the PH-6B uses a specific rosette matching configuration that aligns flawlessly with both the modern "H" series and the classic "RH" series fluid head brackets.

Key Performance & Mechanical Features

  • Continuous Telescopic Range: Features a built-in twist-lock collar that enables smooth adjustment of the effective handle length from 40.6 cm to 55.9 cm (16.0" to 22.0").

  • Ergonomic Fine-Tuning: The bar features a precision-angled bend right after the rosette mount. Because it can rotate fully within its own attachment clamp before being locked down, a single PH-6B bar can be configured for a downward-pointing angle on either the right or left side of the head without needing to buy a separate mirrored part number.

  • Leverage for Mid-to-Heavy Rigs: Extending the handle increases your physical leverage, making it much easier to execute slow, steady panning and tilting shots. This is essential when managing heavier setups near the payload capacities of the H35 or H45 systems.

  • Dual-Axis Rosette Lock: The connection point uses deep-cut, hardened mechanical rosettes that lock metal-on-metal with the sides of the head. This design completely eliminates mechanical play, shifting, or backlash when guiding heavy configurations.

Technical Specifications Matrix:

Performance Parameter Libec PH-6B Factory Specifications
Official Catalog SKU PH-6B
Adjustable Length Range 40.6 cm to 55.9 cm / 16.0" to 22.0"
Orientation Capabilities Universally Reversible (Rotates for Right or Left Hand Mounting)
Primary Material High-Strength Structural Aluminum Alloy
Grip Architecture Heavy-Duty Non-Slip Rubber Studio Handle Grip
Native Head Compatibility RH25D, RH35D, RH45D, H15, H25, H35, H45 (Plus legacy RH-R models)
Net Hardware Weight Approximately 0.45 kg / 1.0 lb

💡 Dual Broadcast Demand Tip: If you want to configure your H-series or RH-series head for a traditional dual-handle broadcast workflow, you can purchase two standard PH-6B bars. Simply mount one to each side rosette and rotate the left bar's clamp adjustment downward to create a perfectly symmetrical dual-handle platform. This gives you the ideal layout for attaching lens zoom demands on one side and mechanical focus demands on the other.
