SKU: LIB-BL-F

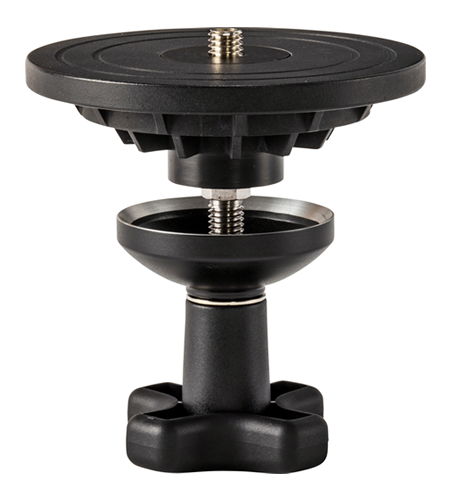

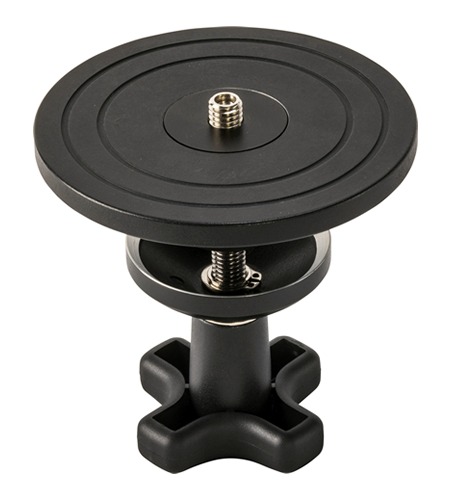

Libec Flat-base adapter for 75mm/100mm bowl tripods

R 9,185.05
Tax included Shipping calculated at checkout.

The Libec BL-F is a specialized flat-base adapter engineered to mount flat-base fluid heads, slider rails, or camera accessories directly onto standard video tripod legs featuring either a 75mm or 100mm bowl. This tool bridges the gap between different mounting standards, allowing operators to leverage the rapid leveling capabilities of bowl-mount tripod legs with flat-base production equipment.

Core Features & Practical Utility

  • Dual-Step Bowl Fitting: The chassis of the adapter is precision-machined with a stepped contour. The narrower step drops natively into standard 75mm bowl tripods, while the wider step rests securely inside larger 100mm bowl systems.

  • Dual-Thread Head Attachment: The adapter comes equipped with interchangeable 1/4"-20 and 3/8"-16 mounting screws. This allows you to secure various gear, from lightweight flat-base photo heads to heavy-duty cinema flat-base fluid heads, sliders, or high-hat mounts.

  • Heavy-Duty Tie-Down Knuckle: The package includes an ergonomic, oversized bottom tie-down handle (knuckle). Once threaded into the base of your flat head through the adapter bowl, spinning the knuckle locks the entire assembly into the tripod bowl, providing a rock-solid platform that resists rotation and play.

  • Expanded Slider Functionality: Beyond simple head conversion, the BL-F is commonly used as a heavy-duty mounting puck to center camera slider systems (like the Libec Libec Allex/Libec Sliders) on top of a single 100mm bowl tripod, eliminating the need for light-stand support on the slider's outer edges.

Hardware Technical Specifications Matrix:

Parameter Libec BL-F Specifications
Model Number BL-F
Tripod Leg Interface Fits both 75mm and 100mm Bowls
Top Attachment Interface 1/4"-20 and 3/8"-16 Threaded Screws
Maximum Payload Capacity 22 pounds or 10.0 kilograms
Total Net Weight 0.8 pounds or 0.36 kilograms
Included Accessories Tie-down assembly knuckle

Operational System Tips for the BL-F Adapter:

💡 The Quick-Leveling Technique: Because the BL-F features a rounded bowl-matching underside, you retain the ability to coarsely level your flat-base head using the tripod's native bowl design. Slightly loosen the bottom tie-down knuckle, tilt the adapter until your fluid head's bubble level is perfectly centered, and crank the knuckle back down. This eliminates the tedious process of adjusting individual tripod leg extensions on uneven terrain just to level a flat-base head.

  • Preventing Stud Free-Spin: When switching between the 1/4"-20 and 3/8"-16 screw options, ensure the unused screw is completely removed from the central recess. Tighten your flat-base head firmly down onto the active screw threads before locking the bottom knuckle to prevent the adapter from spinning loosely inside the bowl during high-drag panoramic pans.

Libec

Libec Flat-base adapter for 75mm/100mm bowl tripods

R 9,185.05

The Libec BL-F is a specialized flat-base adapter engineered to mount flat-base fluid heads, slider rails, or camera accessories directly onto standard video tripod legs featuring either a 75mm or 100mm bowl. This tool bridges the gap between different mounting standards, allowing operators to leverage the rapid leveling capabilities of bowl-mount tripod legs with flat-base production equipment.

Core Features & Practical Utility

  • Dual-Step Bowl Fitting: The chassis of the adapter is precision-machined with a stepped contour. The narrower step drops natively into standard 75mm bowl tripods, while the wider step rests securely inside larger 100mm bowl systems.

  • Dual-Thread Head Attachment: The adapter comes equipped with interchangeable 1/4"-20 and 3/8"-16 mounting screws. This allows you to secure various gear, from lightweight flat-base photo heads to heavy-duty cinema flat-base fluid heads, sliders, or high-hat mounts.

  • Heavy-Duty Tie-Down Knuckle: The package includes an ergonomic, oversized bottom tie-down handle (knuckle). Once threaded into the base of your flat head through the adapter bowl, spinning the knuckle locks the entire assembly into the tripod bowl, providing a rock-solid platform that resists rotation and play.

  • Expanded Slider Functionality: Beyond simple head conversion, the BL-F is commonly used as a heavy-duty mounting puck to center camera slider systems (like the Libec Libec Allex/Libec Sliders) on top of a single 100mm bowl tripod, eliminating the need for light-stand support on the slider's outer edges.

Hardware Technical Specifications Matrix:

Parameter Libec BL-F Specifications
Model Number BL-F
Tripod Leg Interface Fits both 75mm and 100mm Bowls
Top Attachment Interface 1/4"-20 and 3/8"-16 Threaded Screws
Maximum Payload Capacity 22 pounds or 10.0 kilograms
Total Net Weight 0.8 pounds or 0.36 kilograms
Included Accessories Tie-down assembly knuckle

Operational System Tips for the BL-F Adapter:

💡 The Quick-Leveling Technique: Because the BL-F features a rounded bowl-matching underside, you retain the ability to coarsely level your flat-base head using the tripod's native bowl design. Slightly loosen the bottom tie-down knuckle, tilt the adapter until your fluid head's bubble level is perfectly centered, and crank the knuckle back down. This eliminates the tedious process of adjusting individual tripod leg extensions on uneven terrain just to level a flat-base head.

  • Preventing Stud Free-Spin: When switching between the 1/4"-20 and 3/8"-16 screw options, ensure the unused screw is completely removed from the central recess. Tighten your flat-base head firmly down onto the active screw threads before locking the bottom knuckle to prevent the adapter from spinning loosely inside the bowl during high-drag panoramic pans.
