SKU: LIB-LX7

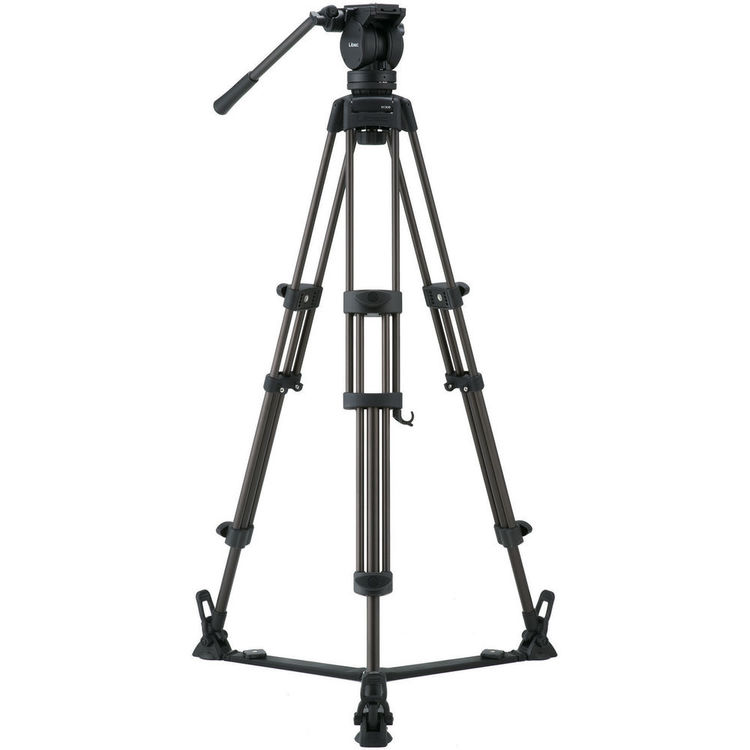

Libec LX7 Tripod With Pan and Tilt Fluid Head and Floor Spreader & padded bag

R 19,130.25
Tax included Shipping calculated at checkout.

This configuration is Libec's definitive 75mm bowl aluminum production tripod system. It serves as a highly robust, daily-workhorse platform for local broadcast news operators, live event videographers, and corporate video crews managing fully rigged mirrorless setups or small-to-mid-sized ENG cameras weighing up to a maximum payload of 8.0 kg (17.5 lbs).

Core Component Breakdown & Performance Engineering

1. The Foundation: LX7 Fluid Head

  • Fixed Torque Counterbalance: To maximize field speed, the LX7 features a fixed internal spring balance setup. It is finely tuned to perform optimally with camera systems weighing between 4.0 kg and 6.0 kg, preventing the camera from sliding or snapping back unexpectedly when you let go of the pan handle.

  • Super Torque Fluid Cartridges: The internal panning and tilting mechanisms feature high-precision fluid drag modules. While the drag level is fixed, it is engineered with a high-torque threshold to eliminate micro-vibrations or physical play when beginning or finishing smooth pan and tilt arcs.

  • All-Weather Structural Grease: The head uses a proprietary silicone fluid grease that stays uniform across a wide ambient temperature range, from negative 20 degrees Celsius to positive 60 degrees Celsius (negative 4 degrees Fahrenheit to positive 140 degrees Fahrenheit).

2. Maximum Ground Stability: Aluminum Legs & SP-2B Floor Spreader

  • Double-Strut Leg Top Framing: The aluminum alloy legs feature a dual-tube design on the upper stages. This configuration offers high torsional rigidity, ensuring that when you aggressively track a subject with a telephoto lens, the tripod legs will not twist out of place.

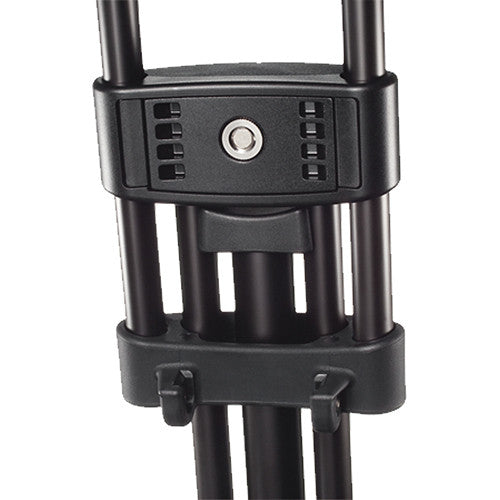

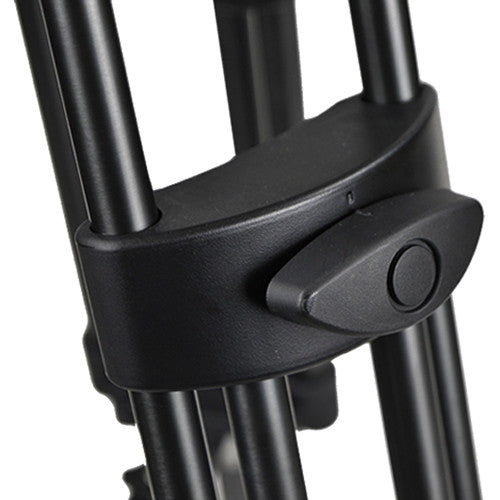

  • Low Center-of-Gravity Stance (SP-2B Spreader): By choosing the ground floor spreader layout, the legs lock together at their lowest physical extension points. This drops the system's center of gravity and forms an exceptionally stable footprint that eliminates leg splay on slick, flat surfaces like studio linoleum, basketball courts, or asphalt pads. The telescoping arms allow you to spread the legs wide to drop the system down to a minimum operating height of 56.0 cm (22.0 inches).

3. Balancing & Travel Accessories

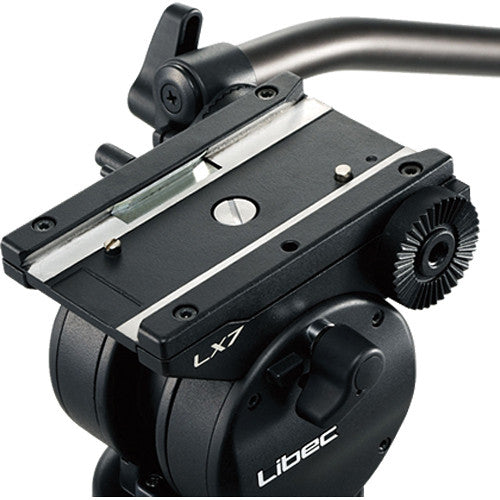

  • Sliding Quick Release Plate: Features a standard sliding range of plus or minus 40mm (plus or minus 1.6 inches) to quickly counteract the weight distribution of heavy front matte boxes or massive V-mount battery rails on the back of the camera cage.

  • TC-70 Travel Bag: A high-durability, heavily padded zippered transit case with double handle straps to protect the aluminum struts and fluid dampening mechanics during shipping or vehicle transport.

System Technical Specifications Matrix:

Performance Parameter Libec LX7 Ground Spreader System Specifications
Official System Package SKU Libec LX7
Maximum System Payload Capacity 8.0 kg / 17.5 lbs
Optimal Balance Performance Target 4.0 kg to 6.0 kg / 8.8 lbs to 13.2 lbs (C.G. height at 100mm)
Head Mounting Interface Type Industry-Standard 75mm Leveling Half-Ball Base
Pan and Tilt Drag Settings Fixed Real Fluid Torque Profile
Tilt Angle Capabilities Positive 90 degrees to negative 80 degrees
System Height Operating Range 56.0 cm to 166.0 cm / 22.0" to 65.4" (Achieves lower low-angles than the mid-spreader version)
Padded Transport Case SKU Libec TC-70 Premium Travel Bag
Total Net Hardware Weight 5.5 kg / 12.1 lbs (Head, Legs, and Floor Spreader combined)

Operational System Tips for the LX7:

💡 The Flat Ground Advantage: The SP-2B floor spreader excels at providing rock-solid foundation lines on concrete, studio floors, or carpet. However, if you find yourself shooting out in nature on rugged hillsides, muddy sports fields, or steps, a floor spreader can bend or strain the leg locks. For extreme outdoor terrain, consider unhooking the floor spreader and snapping a set of Libec rubber foot pads onto the lower leg joints to adapt to the rough ground.

  • Bubble Level Function: The fluid head housing contains an integrated glass bubble level placed directly adjacent to the main bowl tie-down ring. It is specifically designed to absorb ambient studio light, making it easier to read when leveling the 75mm ball base in dark live event venues or low-light situations.
