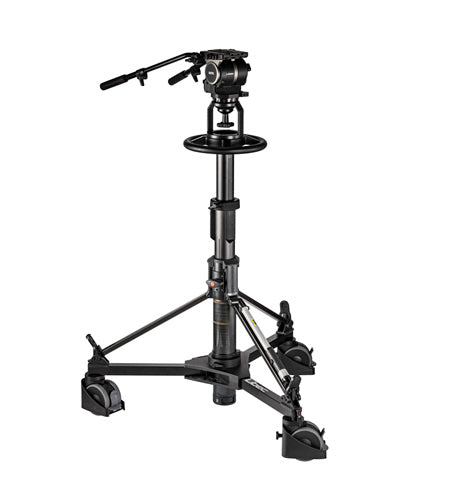

Libec Mid-Capacity Studio Pedestal System: Precision Broadcast Platform (GH75 / P110S / PH-8B)
In professional television studios, commercial broadcast booths, live multi-camera webcasting venues, and high-tier houses of worship, fluid horizontal and vertical camera tracking is non-negotiable. Standard tripods present severe limitations when you need to adjust camera heights seamlessly on the fly.
The Libec Mid-Capacity Studio Pedestal System—thoughtfully configured with the high-performance GH75 continuous fluid head, the P110S pneumatic column pedestal, and a dual-set of PH-8B extendable pan bars—is engineered to bridge the gap. By providing a zero-gravity feel for your camera gear and absolute vertical travel fluidity, this package is optimized for modern broadcast setups utilizing mid-sized kitted digital cinema packages, fully rigged mirrorless systems, and standard electronic news gathering (ENG) handheld cameras.
Supporting a robust system payload threshold of 10kg (22.0 lbs), this configuration delivers true professional studio performance with an agile, accessible footprint.

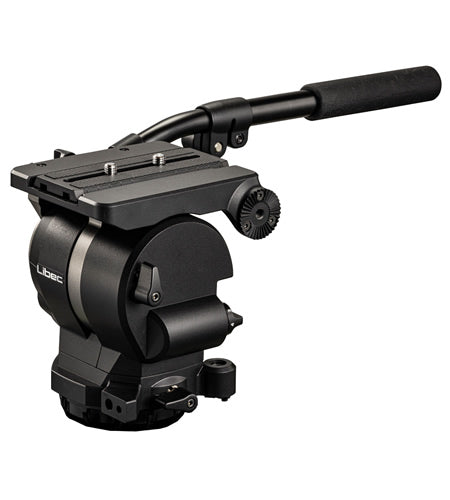

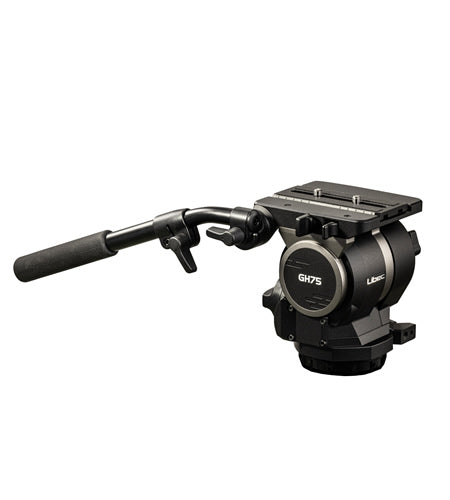

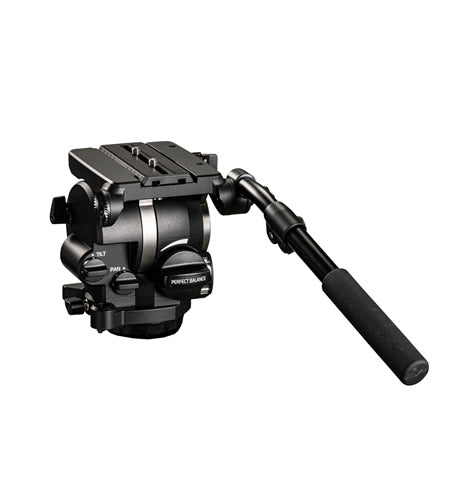

1. GH75 Fluid Head: Continuous Perfect Counterbalance
At the apex of this pedestal configuration sits the Libec GH75, a high-precision 75mm dual-head assembly built to deliver flawless, broadcast-quality panning sweeps.
-
Continuous Perfect Counterbalance: Moving away from rigid stepped systems, the GH75 features a fully continuous internal spring adjustment dial. This lets operators calibrate the internal spring tension to perfectly offset the exact weight and center of gravity of a camera rig outfitted with viewfinders, external monitors, or compact teleprompters. Once balanced, the camera floats effortlessly at any tilt angle (+90° to -70°) without drifting or dropping.
-
Premium Fluid Drag Unit: Backed by premium laminated metal structures and high-grade internal silicone grease, the pan and tilt drag controls eliminate microscopic camera stutters or sudden jerks at the beginning or end of a tilt. It operates with identical smoothness across harsh environmental temperatures ranging from -40°C to +60°C (-40°F to +140°F).
-
Versatile Dual-Head Platform: The GH75 natively functions as both a 75mm half-ball and a threaded flat base head. While attached natively to the P110S pedestal, the head's lower bowl clamp can be unbolted in seconds, allowing you to mount the flat bottom directly onto linear sliders, crane jibs, or heavy-duty photo monopods.

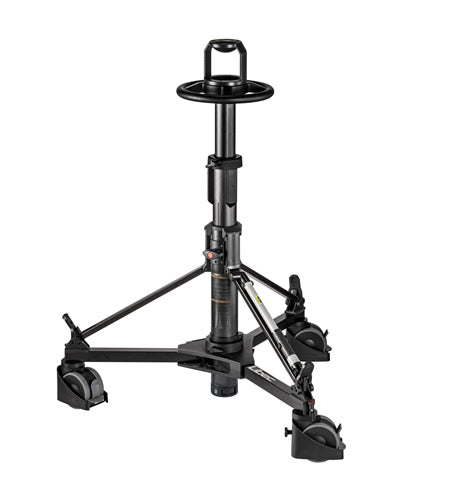

2. P110S Pedestal Column: Dual-Mechanism Pneumatic Control
Providing the elevation control is the Libec P110S Pneumatic Column Pedestal System. This robust column offers a total vertical stroke range of 75cm (29.5") with incredibly smooth operational movement.
-
Zero-Gravity Pneumatic Lift: The upper section of the 2-stage column is pressurized by compressed air, creating a pneumatic counter-pressure system. An included specialized air pump allows operators to adjust internal pressure to match the exact weight of the camera kit, letting you lift or depress the camera with a gentle hand gesture mid-broadcast.
-
Mechanical Lower Lockout: The lower portion utilizes a secure, heavy-duty mechanical locking layout. This provides an absolute, unyielding foundation for fixed-height long shoots, completely isolating the camera from drift.
-
Double-Bearing Stability: A double-bearing architecture built into the base of the column entirely prevents unsteady side-to-side micro-movements or physical play caused by sudden vertical adjustments.
3. DL-10RB Dolly & Casters: Precision Studio Tracking
The pedestal base mounts to a heavy-duty, high-rigidity aluminum folding dolly framework featuring large-sized 125mm (4.9") double-wheel casters for fluid, silent floor tracking.
-
Directional Tracking Lock Mechanism: To ensure perfectly straight, linear camera dollies or truck shots across the studio floor, the casters feature a directional tracking lock. Locking the caster direction ensures the pedestal moves in a strict straight line, preventing diagonal drift.
-
Adjustable Cable Guards: To protect delicate broadcast video feeds and power lines strewn across a control room or stage, the wheels feature integrated, height-adjustable cable guards. These push cables out of the way, preventing the casters from rolling over them and jarring the shot.
-
Double-Stopper Braking: High-grade foot-operated double-stoppers instantly lock both the wheel rotation and the axle shafts simultaneously, rendering the pedestal entirely stationary for fixed camera spots.
4. PH-8B Dual Pan Handles: Ergonomic Control
Managing heavy studio setups requires significant physical leverage. This configuration includes a dual set of Libec PH-8B Extendable Pan Bars mounted to both the right and left rosettes of the GH75 head.
The PH-8B handles feature high-traction rubberized grips and an adjustable, telescoping aluminum-alloy shaft that smoothly extends from 400mm to 560mm (15.7" to 22.0"). This added length maximizes leverage, enabling operators to pull off incredibly slow, sweeping panning shots or manage heavy teleprompter packages with minimal physical strain.
Key Technical Specifications:
-
System Components: GH75 Fluid Head, P110S Pneumatic Column, DL-10RB Dolly, 2x PH-8B Pan Handles, and Air Pump
-
Mounting Interface: 75mm Bowl Platform (Dual-Base Compatible Head)
-
Maximum System Payload: 10 kg / 22.0 lbs
-
Counterbalance Range: Continuous Perfect Balance (Up to 10kg maximum weight threshold)
-
Fluid Drag Selection: Multi-Step Selective Fluid Drag (Pan & Tilt)
-
Elevation Columns: 2-Stage (Upper Column: Pneumatic Air-Driven / Lower Column: Mechanical Lock)
-
Vertical Stroke Range: 75 cm / 29.5" (Upper Stroke: 38cm / Lower Stroke: 37cm)
-
Operational Height Range: 81 cm to 156 cm / 32.0" to 61.5"
-
Caster Wheel Diameter: Large 125 mm / 4.9" Double-Wheels
-
Dolly Utilities: Integrated Tracking Locks, Adjustable Cable Guards, and Double-Stoppers
-
Total Base Pedestal Weight: 18.1 kg / 39.8 lbs (Excluding fluid head)
Why Choose This Libec 10kg Pedestal System?
If you are looking for an SEO-friendly camera support investment that delivers uncompromising vertical mobility and ultra-smooth tracking for mid-capacity camera systems, this package is the ultimate solution. By unifying the continuous balance accuracy of the GH75 fluid head, the zero-gravity lift of the P110S pneumatic column, and the cable-guarded tracking of the DL-10RB dolly, Libec provides a professional broadcast-grade toolset that guarantees flawless frames on every live television or multi-camera production.
Bring professional pneumatic elevation control to your studio floor—order this Libec Pedestal System today!
