SKU: LIB-QD-10

Libec QH1 / T150B / SP-15B

R 303,555.15
Tax included Shipping calculated at checkout.

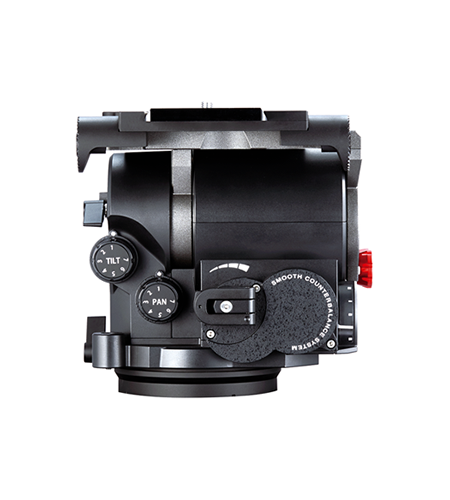

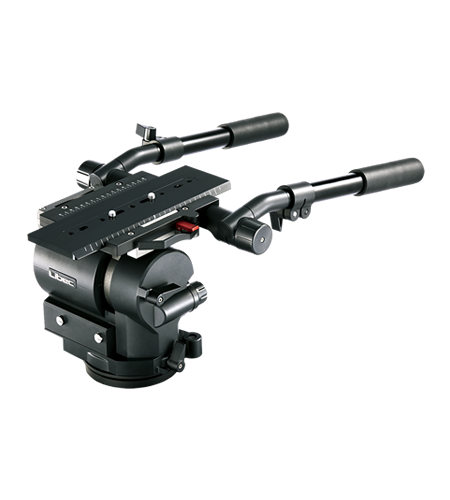

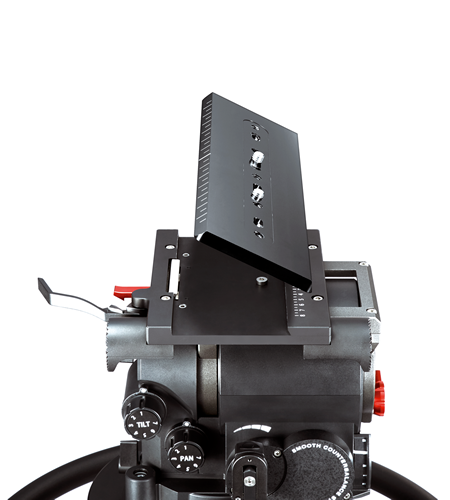

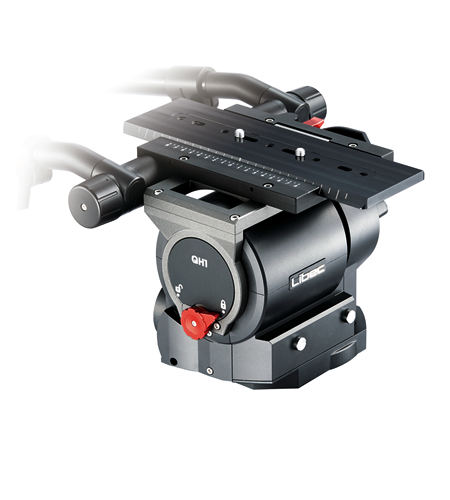

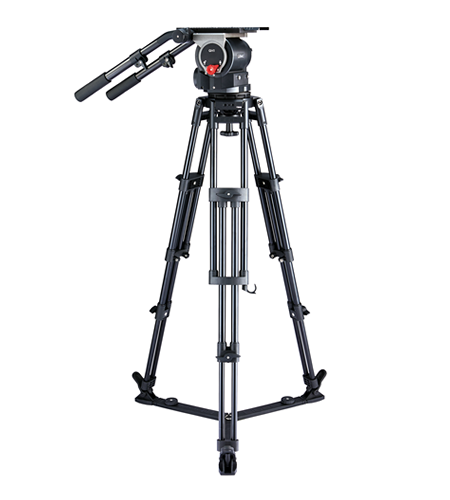

When you combine the Libec QH1 fluid head with the T150B legs and the SP-15B ground spreader, you build the exact layout of the premium Libec QD-10 Field Tripod System with Floor Spreader.

This configuration strips away the mid-level spreader and rubber pads in favor of maximum structural rigidity and an ultra-stable footprint. It is explicitly designed for operations on flat surfaces—such as television studios, arenas, smooth concrete, or track platforms—where heavy, front-heavy camera payloads up to 40 kg (88 lbs) require rock-solid stabilization.

Component Function & Integration

1. Structural Interface: Native Flat Base to 150mm Bowl

Because the QH1 fluid head natively utilizes a heavy-duty, studio 4-bolt flat base, it mounts to the wide-gauge 150mm bowl of the T150B legs using the Libec BL-150 half-ball adapter. This enables rapid, fluid leveling on flat or slightly inclined surfaces without having to strip down or change out the head assembly.

2. Zero-Splay Base: The SP-15B Floor Spreader

The SP-15B is a heavy-duty ground spreader engineered specifically for the dual metal spikes at the absolute bottom of the T150 series leg castings.

  • Anti-Splay Architecture: By locking the legs together at floor level, the SP-15B forms an immovable, low-center-of-gravity triangle. This completely eliminates leg splay under heavy broadcast setups.

  • Telescopic Tuning: Each arm features independent extension tracks locked by heavy turn-knobs, allowing you to widen the tripod footprint to drop the camera lower to the ground while maximizing tip-over safety.

  • Center Pull-Ring: Features an integrated center handle, allowing the operator to lift and collapse the entire heavy tripod framework inward symmetrically in one swift movement.

Combined System Specifications Matrix:

Performance Parameter QH1 / T150B / SP-15B System Specifications
Official System Package SKU Libec QD-10 (Full Ground Spreader Heavy Field Configuration)
Maximum Configured Payload 40.0 kg / 88.0 lbs (Limited by head counterbalance safety window)
Supported Leg Load Capacity Up to 100.0 kg / 220.5 lbs (Absolute structural threshold of T150B chassis)
Mounting Base Setup 150mm Leveling Half-Ball Base (Via included BL-150 adapter)
System Operational Height Range 88.5 cm to 179.5 cm / 35.0" to 70.5" (Sits lower than the mid-spreader version)
Counterbalance Tuning Continuous variable spring coil with an illuminated indicator meter
Pan & Tilt Drag Settings 7-Stage Mechanical Metal-Disk Fluid Dampening
Total Combined Net Weight 22.6 kg / 49.8 lbs (Head: 12.7kg | Legs & Floor Spreader: 9.9kg)

Ground Spreader Operational Pro-Tips:

⚠️ The Flat Surface Limitation: The SP-15B ground spreader should only be deployed on stable, flat surfaces. If your shoot takes you onto rugged exterior terrain, steep hillsides, or stadium stairs, you should swap the SP-15B out for a mid-level spreader (BR-6B) and rubber feet (FP-6B). Forcing a ground spreader onto uneven or stepped ground forces the spreader arms to twist off-axis, loading uneven bending strain onto the tripod's lower joints and creating a tipping hazard for heavy camera rigs.

  • Dampening Long-Lens Shakes: When operating at the maximum focal lengths of a telephoto lens with a heavy studio setup, fully extend the telescopic arms of the SP-15B. The ultra-wide footprint acts as a mechanical dampener, isolating the fluid head from micro-vibrations and absorbing the initial torque spike of sharp, sudden panning adjustments.
