SKU: LIB-QD-30

Libec QH3 / T150B / SP-15B

R 351,557.30
Tax included Shipping calculated at checkout.

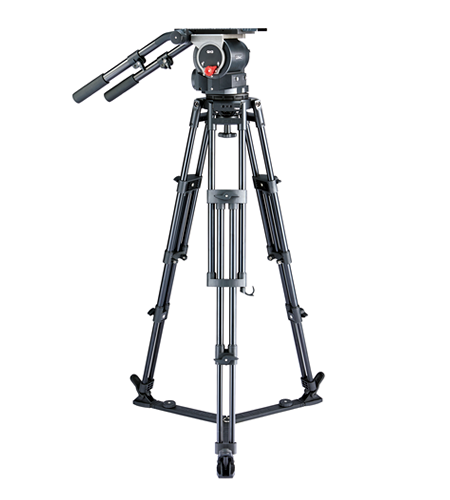

When you combine the Libec QH3 fluid head with the T150B legs and the SP-15B ground spreader, you build the exact layout of the premium Libec QD-30 Field Tripod System with Floor Spreader.

This system package strips away the mid-level spreader and rubber feet in favor of absolute structural rigidity when operating large, front-heavy camera payloads on perfectly flat surfaces (like studio floors, linoleum stages, smooth pavement, or track platforms).

Component Function & Integration

1. Structural Interface: Native Flat Base to 150mm Bowl

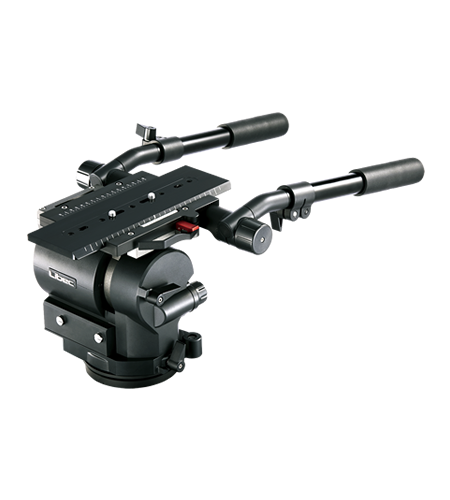

Because the flagship QH3 fluid head natively utilizes a studio 4-bolt flat base, you mount it to the massive 150mm bowl of the T150B legs using the Libec BL-150 half-ball adapter. This enables high-load leveling capabilities without stripping the head down when transitioning from pedestals to field sticks.

2. Low Center of Gravity: The SP-15B Floor Spreader

The SP-15B is a heavy-duty ground spreader meticulously engineered for the wide-gauge feet of T150 series heavy tripods.

  • Anti-Splay Engineering: It anchors directly to the cast spikes at the absolute bottom of the tripod legs, transforming the footprint into an immovable triangle. This setup completely eliminates leg splay under a massive 60 kg (132.3 lbs) broadcast camera setup.

  • Telescopic Radial Tuning: Each arm of the SP-15B features independent extension tracks locked down by robust turn-knobs. This lets you flatten the tripod lower to the floor for low-angle lens heights while ensuring the wider footprint adds proportional tip-over safety.

  • Quick-Collapse Center Ring: Features an integrated center pull-ring, enabling you to lift and collapse the entire 40+ pound tripod framework inward symmetrically in one clean upward pull.

Combined System Specifications Matrix:

Performance Parameter QH3 / T150B / SP-15B System Specifications
Official System Package SKU Libec QD-30 (Full Ground Spreader Heavy Field Configuration)
Maximum Configured Payload 60.0 kg / 132.3 lbs (Limited by head counterbalance window)
Supported Leg/Spreader Load Up to 100.0 kg / 220.4 lbs (Structural limit of T150B leg chassis)
Mounting Base Setup 150mm Leveling Half-Ball Base (Via included BL-150 adapter)
System Operational Height Range 83.5 cm to 171.5 cm / 32.9" to 67.5" (Sits lower than the mid-spreader version)
Folded Storage Length 99.0 cm / 39.0"
Spreader Hardware Weight 1.2 kg / 2.6 lbs (SP-15B solo)
Total Combined Net Weight 22.6 kg / 49.8 lbs (Head: 13.8kg | Legs & Floor Spreader: 8.8kg)

Ground Spreader Operational Pro-Tips:

⚠️ The Flat Surface Baseline Rule: The SP-15B ground spreader should only be deployed on stable, flat surfaces. If you are operating on steep hillsides, rocky slopes, stadium bleachers, or uneven stairs, you should swap the SP-15B out for a mid-level spreader (BR-6B) and rubber feet (FP-6B). Forcing a ground spreader onto jagged terrain causes the arms to twist off-axis, loading uneven bending force onto the tripod's bottom castings and increasing the risk of a top-heavy rig tipping over.

  • Managing Box Lenses: When operating long box lenses near the 60 kg limit with this system, extend the SP-15B arms to their maximum outer radius. This wide stance maximizes structural dampening, eliminating micro-shakes at the tail end of aggressive pans when shooting at high focal lengths.
