SKU: LIB-RSP-750PD(S)

Libec RHP75 with 2 pcs of PH-8B / P110S

R 246,118.40
Tax included Shipping calculated at checkout.

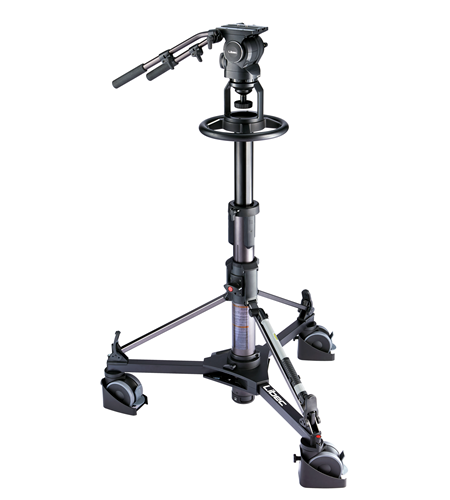

Libec RSP-750PD(S) Professional Broadcast Pedestal System

When you assemble the Libec RHP75 Fluid Head, two PH-8B Telescopic Pan Handles, and the P110S Pneumatic Pedestal, you get the official studio broadcast system package designated as the Libec RSP-750PD(S).

This system is specifically engineered for mid-to-large multi-camera studio configurations. It is designed to support digital cinematography cameras, mid-sized studio viewfinders, teleprompter hoods, and talent-facing program monitors, handling combined setups up to 17 kg (37.5 lbs) with zero drift.

Core Component Capabilities

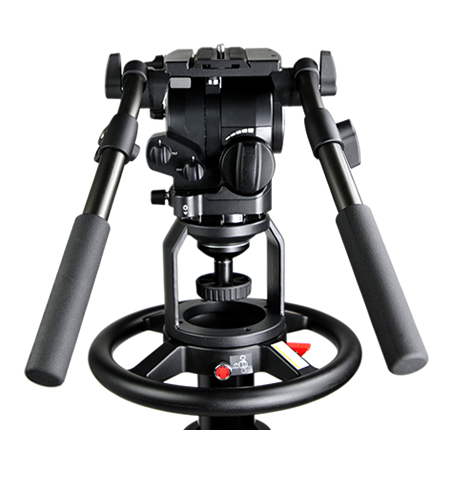

1. Libec RHP75 100mm Fluid Head

  • Continuous Perfect Counterbalance: Libec's continuous spring design eliminates step-based balance compromises. You can calibrate the internal tension to match the exact physical mass of camera packages between 5.5 kg and 14 kg (12 lbs to 31 lbs). Once dialed in, the rig floats weightlessly and holds its position at any angle without dipping or drifting.

  • 7-Step Fluid Pan/Tilt Drag: Features independent 7-stage mechanical fluid controls (plus a true zero-drag bypass). This allows studio operators to easily match the drag friction to everything from creeping close-up interviews to rapid, live sports tracking shots.

  • One-Touch Slide Assembly: The camera plate drops straight down and snaps into the platform framing from the side, speeding up setup times for large-scale camera packages.

2. Dual Libec PH-8B Extendable Pan Handles

  • Dual-Bar Studio Interfacing: Utilizing two matching handles allows the operator to mount electronic focus demands on one bar and zoom demands on the other, maintaining proper standard studio ergonomics.

  • Telescopic Mechanical Leverage: Each handle adjusts from 40.5 cm to 56.0 cm (16.0" to 22.0"), giving the operator maximum leverage to make precise, vibration-free tracking adjustments.

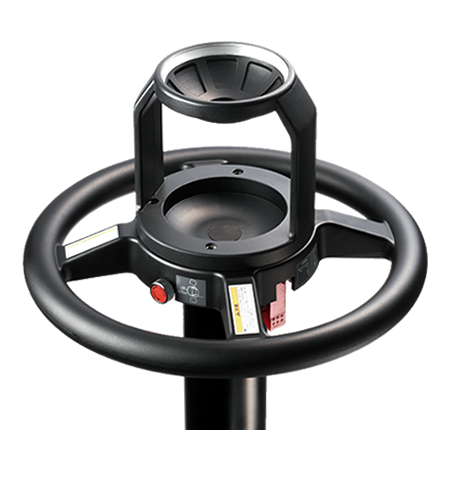

3. Libec P110S Pneumatic Pedestal & DL-10RB Dolly

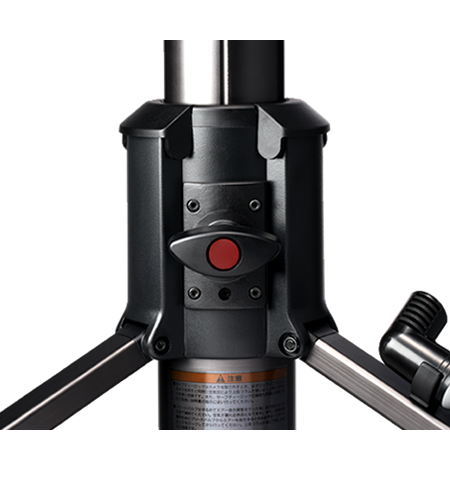

  • Air-Adjustable Vertical Stroke: The 2-stage pneumatic column delivers 75.0 cm (29.5") of vertical travel. Compressed air counteracts the dead weight of the system, enabling smooth on-air vertical tracking shifts.

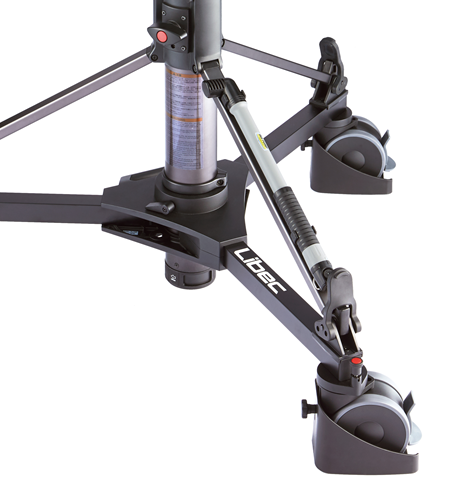

  • Double-Wheel Studio Dolly: The distinguishing asset of the "S" configuration is the DL-10RB studio tracking dolly. It features large 125mm (4.9") double-wheel casters wrapped in thick cable guards to sweep studio deck cables out of the path, along with a directional tracking lock to guarantee perfectly straight lines during dolly movements.

System Specifications Matrix:

Performance Parameter Combined System Factory Specifications
Official System Bundle Name Libec RSP-750PD(S)
Maximum Total System Payload 17.0 kg / 37.5 lbs (Optimized for Fluid Head limits)
Fluid Head Counterbalance Window 5.5 kg to 14.0 kg / 12.0 lbs to 31.0 lbs (C.G. at 125mm)
Head-to-Pedestal Interface Native 100mm Bowl Mount
Elevation Stroke Mechanism 2-Stage Pneumatic (Manual Floor Pump Assisted)
Total System Working Height 99.5 cm to 174.5 cm / 39.2" to 68.7"
Caster Wheel Profile $\emptyset$125mm (4.9") Double Wheels with Built-In Cable Guards
Total Net System Weight 22.1 kg / 48.6 lbs

Operational Balancing Sequence: Always charge the pneumatic column with air using the included floor pump before calibrating the fluid head's counterbalance. Fill the cylinder until the entire camera and head rig floats weightlessly at mid-height, lock the column brake, and then adjust the RHP75 head's fine-tune balance knob. If you over-pressurize the column, a built-in safety valve will automatically vent the excess air.
