Libec RSP-850S Professional Pedestal Configuration

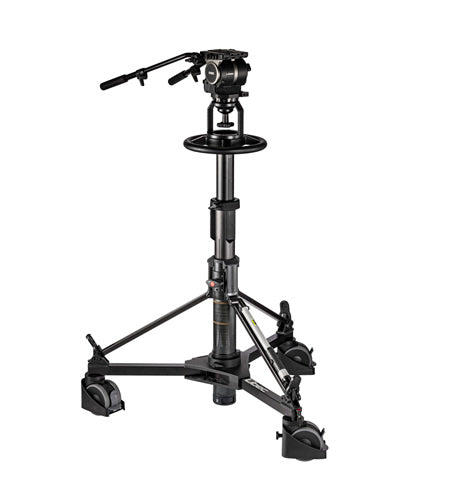

Combining the Libec RHP85 Fluid Head, two PH-8B Telescopic Pan Handles, and the P110S Pneumatic Pedestal System creates a world-class broadcast studio configuration. In Libec's official catalog, this exact bundled system is designated as the Libec RSP-850S.
This setup is ideal for mid-sized studio broadcast environments running multi-cam configurations, full-sized box lenses, teleprompter arrays, and talent-facing monitors.
1. Core Component Breakdown
Libec RHP85 Heavy-Duty 100mm Fluid Head
-
Continuous Perfect Counterbalance: Unlike stepped systems, the RHP85 utilizes a fully variable internal spring tension mechanism. You can balance any camera package weighing between 9 kg to 20 kg (20 lbs to 44 lbs) so perfectly that if you let go of the handle at a +45° or -30° tilt, the camera stays frozen in place with zero drift.
-
7-Step Drag Controls: Features independent, 7-stage smooth pan and tilt fluid dampening switches to maintain uniform resistance during creeping close-ups or sudden panning actions.
Dual Libec PH-8B Extendable Pan Handles
-
Telescopic Range: Each handle adjusts from 16" to 22" (40.5 cm to 56 cm), giving the operator extra mechanical leverage when maneuvering a heavy rig.
-
Dual-Sided Studio Layout: Running two matching handles allows the camera operator to control zoom demands on one side and focus demands on the other simultaneously, which is standard practice for high-end studio setups.

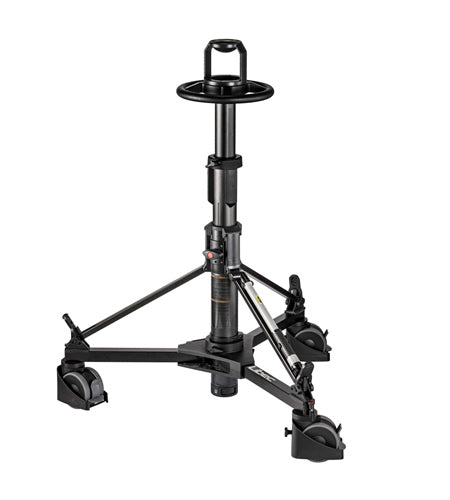

Libec P110S Pneumatic Pedestal Column & Dolly
-

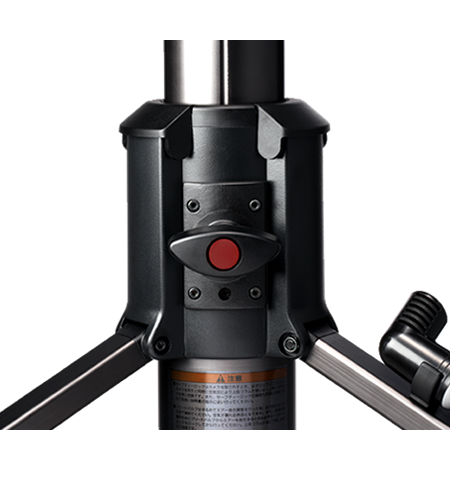

Smooth Air-Adjustable Elevation: The 2-stage pneumatic column has a vertical stroke range of 75 cm (29.5"). Compressed air counteracts the dead weight of the camera package, allowing for smooth, effortless vertical adjustments while broadcasting live.
-

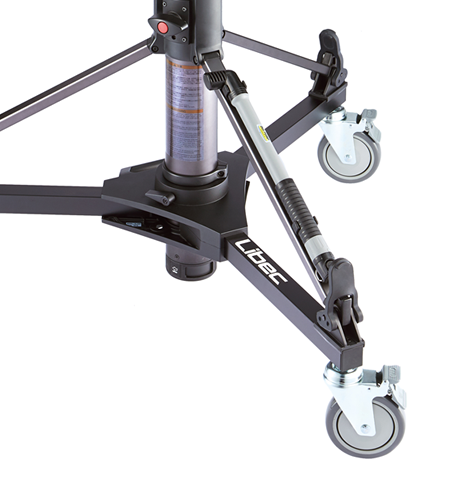

Studio-Optimized Tracking Dolly: The P110S includes the premium tracking dolly featuring large 4.9" (125mm) double-wheel casters. It comes equipped with integrated cable guards to prevent the wheels from running over studio floor cables, and a directional tracking lock to guarantee perfectly straight lines during dolly movements.
System Specifications Matrix:
| Performance Parameter | Combined System Factory Specifications |
| Official System Bundle Name | Libec RSP-850S |
| Maximum System Payload Capacity | 25.0 kg / 55.0 lbs (Including Fluid Head) |
| Fluid Head Counterbalance Range | 9.0 kg to 20.0 kg / 20.0 lbs to 44.0 lbs (C.G. at 125mm) |
| Head-to-Pedestal Interface | 100mm Leveling Bowl |
| Pedestal Column Elevation Type | Pneumatic (Air-Pump Assisted) |
| Total System Working Height | 81.0 cm to 156.0 cm / 32.0" to 61.5" |
| Caster Wheel Profile | 125mm / 4.9" Double-Wheels with Cable Guards |
| Operating Temperature Window | -40°C to +60°C / -40°F to +140°F |
| Total Hardware Base Weight | 22.2 kg / 48.8 lbs |
Pro-Tips for Setup & Operation:
-
The Balancing Sequence: Always charge the pneumatic column with air before you attempt to calibrate the fluid head's continuous counterbalance. Use the included floor pump to pressurize the cylinder until the camera package floats weightlessly at mid-height, lock the column, and then adjust the RHP85 head's balance knob.
-
Safety Valve Protection: The P110S column features a built-in safety relief valve. If you attempt to over-pressurize the chamber beyond its operating limits, it will safely bleed off excess air automatically.
