SKU: LIB-A-9EX

Libec SONY PMW EX cameras adapter

R 1,574.35
Tax included Shipping calculated at checkout.

When dealing with Sony's classic line of PMW-EX camcorders (such as the PMW-EX1, EX1R, and EX3), traditional broadcast zoom demands cannot plug directly into the camera bodies due to Sony's proprietary multi-pin lens control ports.

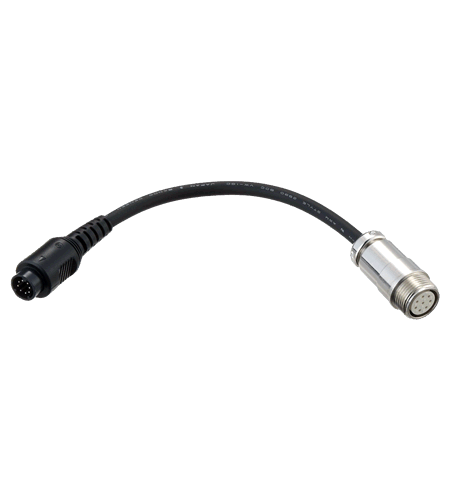

To bridge this connection, Libec offers the Libec A-9EX Conversion Adapter, which acts as an electronic interface between Sony PMW-EX cameras and professional 8-pin lens controllers.

Core Features & Practical Utility

  • Cross-Brand Zoom Control Demands: The A-9EX is an 8-pin male-to-female conversion adapter. Its primary function is to allow standard Fujinon or Canon 8-pin ENG lens zoom demands (like the Libec ZC-9Pro) to command the integrated servo lenses on Sony PMW-EX camcorders.

  • Compact Footprint: Measuring just 3 inches (approx. 7.6 cm) in length, the adapter adds zero cable clutter to your pan-handle controller setup, neatly stepping the connector width down to match Sony’s internal pin configuration.

  • Full Protocol Continuity: The internal wiring architecture passes variable-speed zoom voltage curves, Record Start/Stop commands, and Return video toggles seamlessly through the link without signaling lag or command dropouts.

Hardware Technical Specifications Matrix:

Parameter Libec A-9EX Specifications
Model Number A-9EX
Input Interface End 8-Pin Professional Broadcast Standard
Output Interface End Sony PMW-EX Dedicated Connector
Total Cable Length 3 inches / 7.6 centimeters
Primary System Use Case Adapting Fujinon/Canon controllers to Sony XDCAM EX bodies
Net Weight 0.05 pounds or 22 grams

The Pre-Configured Alternative: Libec ZC-9EX

If you do not already own a standalone 8-pin zoom demand, you don't need to buy a separate controller and the A-9EX adapter manually. Libec sells a fully integrated package known as the Libec ZC-9EX Zoom Control:

  • What it is: A universal pan-handle clamping zoom rocker that includes a detachable version of this exact EX adapter cable out of the box.

  • Dual Functionality: Unplugging the short EX extension piece converts the controller back into a standard 8-pin ZC-9Pro remote, which can then be used directly with standard Fujinon and Canon ENG lenses.

💡 Operational System Tips for the A-9EX Adapter:

The Voltage Toggle Rule: When utilizing this adapter with a dual-protocol zoom remote (like the ZC-9EX or ZC-9Pro), always look for the small mechanical slider switch marked "F / C" (Fujinon / Canon) on the side of the controller housing. Because Sony's internal lens electronics mirror the voltage signaling behavior of Fujinon optics, you must flip this switch to "F" (Fujinon) before booting up your Sony PMW-EX camera to ensure the zoom rocker travels in the correct structural direction.

  • Pin Safety Alignment Check: Sony's PMW-EX control sockets feature exceptionally fine interior receiver needles. Never twist the adapter barrel into the camera socket forcefully if you feel initial mechanical friction. Align the plastic physical indexing ridge on the collar perfectly with the top slot of the camera port, push straight inward, and then twist the knurled metal locking ring clockwise to secure it.
