Libec SONY PMW EX cameras connectable zoom control

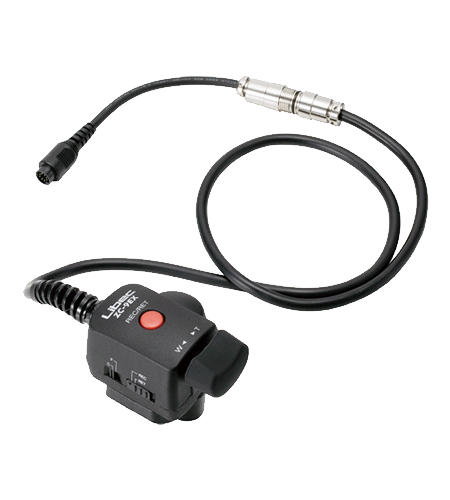

The exact product engineered specifically for this requirement is the Libec ZC-9EX Professional Zoom Control.

Because Sony’s classic XDCAM-EX series utilizes a specialized remote command interface rather than a standard 2.5mm LANC connection, Libec engineered this dedicated solution to bridge the gap between these handheld broadcast camcorders and tripod pan-handle configurations.

1. Modular Hardware Architecture

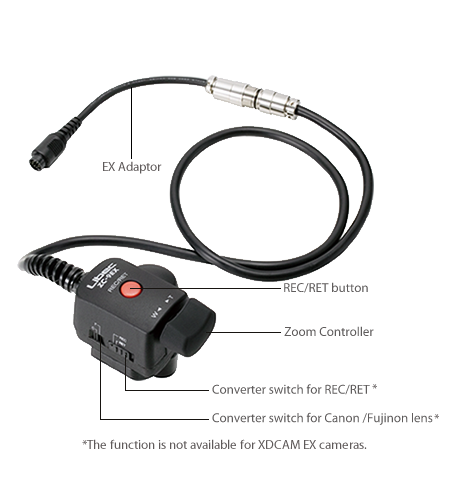

The ZC-9EX package is built on a two-part modular design:

• The Core Controller (ZC-9PRO Engine): Out of the box, the main control unit terminates in a standard 8-pin broadcast connector meant for traditional Fujinon and Canon ENG lenses.

• The EX Adapter Cable: The kit includes a dedicated converter cable that transitions the 8-pin connector into the Sony EX-specific multi-pin terminal.

Multi-Platform Flexibility: By simply unplugging the short EX adapter cable, you instantly convert the device back into a standard 8-pin zoom control for traditional broadcast lenses. It features an integrated toggle switch to alternate between Canon and Fujinon signal protocols.

2. Supported Sony PMW-EX Camera Models

The ZC-9EX provides native electronic control for the built-in lens servos on the following legacy Sony camcorders:

• Sony PMW-EX1 and PMW-EX1R

• Sony PMW-EX3

• Sony PMW-200

• Sony PMW-300

3. Performance & Design Features

• Pressure-Sensitive Variable Speed Control: Features an ergonomic thumb rocker switch. Subtle pressure commands ultra-slow, smooth creep zooms for slow reveals, while pushing fully allows you to perform rapid framing shifts across the focal length range.

• Integrated REC/RET Button: A dedicated button allows the operator to start and stop recording loops directly from the handle. On supported setups, it can also function as a Return (RET) preview monitor switch.

• Universal High-Torque Clamp: The heavy-duty industrial clamp mounts onto tripod pan handles ranging from 0.38" to 1.18" (9.6mm to 30mm) in diameter. It can also attach securely to jib arm control bars, crane weight pipes, or stabilizer rigs.

• Cable Geometry: The main cable extends 2.3 feet (0.7 meters), and the modular EX connector adds an extra 0.3 feet (0.1 meters)—giving you roughly 31.5 inches of clean clearance to run up the pan arm to the camera body without excess cable slack hanging under the head.
