SKU: LIB-BL-75R

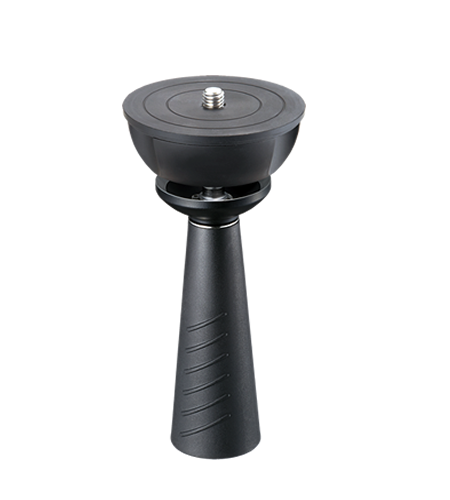

Libec Tripod mount adapter with bowl clamp

R 2,295.40
Tax included Shipping calculated at checkout.

The Libec BL-75R is a precision-engineered 75mm tripod mount adapter and bowl clamp kit. Designed as a dual-purpose physical hardware bridge, this adapter allows operators to rigidly mount flat-base production tools—such as camera slider rails, skater dollies, or jib arms—directly onto standard 75mm bowl-mount tripod legs or alternative flat-base grip equipment.

Core Features & Practical Utility

  • Versatile Dual-Base Geometry: The adapter features an innovative hybrid structural footprint. The upper section incorporates a 75mm ball base contour that rests flawlessly inside fluid head bowl tripods, while the bottom section is completely flat with a native 3/8"-16 mounting female thread. This layout means the adapter can interface with both spherical bowl tripods and completely flat-base studio surfaces.

  • Optimized Slider Integration: The system is engineered to serve as the structural mount for the Libec ALX slider series (ALX SR4, ALX SR8, and ALX SR12). Attaching the adapter to the center-mount plate of a slider rail enables effortless, stable integration onto video tripods like the Libec ALX T.

  • Rapid Leveling Bowl Clamp: The package includes a matching heavy-duty, ergonomic lower tie-down bowl handle. When mounting a flat slider rail onto a bowl tripod, you retain the ability to coarsely level the track up to 15° in any direction by loosening the lower handle, adjusting your bubble level, and tightening it down—eliminating the need to adjust individual tripod leg heights on rough exterior terrain.

Hardware Technical Specifications Matrix:

Parameter Libec BL-75R Specifications
Model Number BL-75R
Ball Base Profile Diameter 75mm / 2.95 inches
Top Stud Interface 3/8"-16 Threaded Head Mounting Stud
Bottom Mount Standard 3/8"-16 Threaded Female Receiver
Primary Rig Matching Libec ALX SR4 / SR8 / SR12 Slider Rails
Material Composition Anodized Aluminum Alloy & Heavy-Duty Engineering Polymer
Total Assembly Net Weight 0.6 pounds or 260 grams

Operational System Tips for the BL-75R:

💡 The Anti-Twist Slider Check: When securing the BL-75R to the underside center block of your camera slider rail, ensure that the 3/8"-16 top stud is cranked down completely flush against the mounting surface. Because high-torque panoramic pans can put rotational friction on the rail, any looseness at the junction stud will cause the slider to slowly twist or spin out of line relative to the tripod legs during a camera move.

  • Maintaining Smooth Friction Profiles: Keep the spherical surfaces of both the 75mm polymer adapter ball and your tripod's metal leg bowl clean of sand, mud, and dust. Grit trapped in the bowl acting as an abrasive can score the metal, creating micro-stutter rough spots that will degrade smooth leveling adjustments over time.
